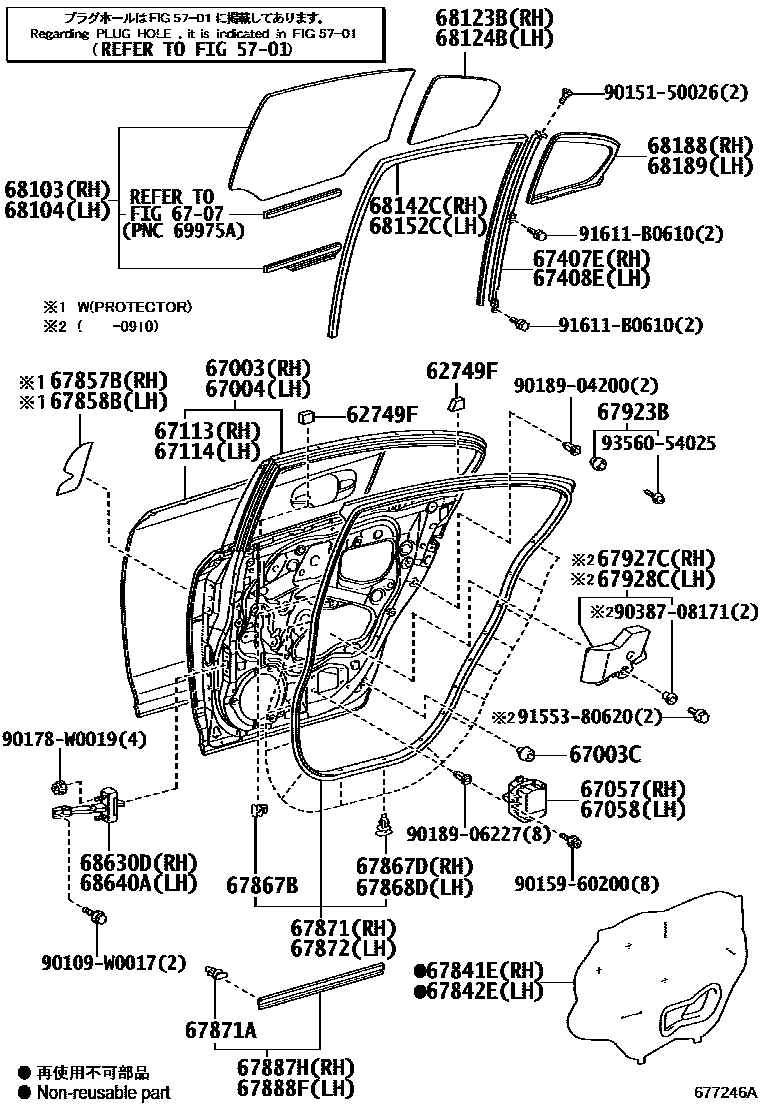

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

62749FSEAL, REAR DOOR FRAME

main69759-05040×2iAZT270200811-201104

REAR

main69759-12110×2iAZT270200811-201104

FRONT

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-05040iAZT270200811-201104

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iAZT270200811-201104

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-05040iAZT270200811-201104

67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH

main67057-05010iAZT270200811-201104

67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH

main67057-05010iAZT270200811-201104

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67113PANEL, REAR DOOR, OUTER RH

main67113-05060iAZT270200811-201104

67114PANEL, REAR DOOR, OUTER LH

main67114-05060iAZT270200811-201104

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-20330iAZT270200811-201104

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-20320iAZT270200811-201104

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-05030iAZT270200811-201104

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-05010iAZT270200811-201104

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-05020iAZT270200811-201104

ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-05020iAZT270200811-201104

ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-04034×2iAZT270200811-201104

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×15iAZT270200811-201104

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×15iAZT270200811-201104

67871WEATHERSTRIP, REAR DOOR, RH

main67871-05110iAZT270200811-201104

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×8iAZT270200811-201104

67872WEATHERSTRIP, REAR DOOR, LH

main67872-05110iAZT270200811-201104

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-05020iAZT270200811-201104

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-05020iAZT270200811-201104

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030×2iAZT270200811-201104

67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1

main67927-05020iAZT270200811-200903

main67927-05021iAZT270200904-200910

67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2

main67928-05020iAZT270200811-200903

main67928-05021iAZT270200904-200910

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-05140iAZT270200811-201104

*TEM,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-05140iAZT270200811-201104

*TEM,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-05090iAZT270200811-201104

*TEM,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-05090iAZT270200811-201104

*TEM,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-05100iAZT270200811-201104

68152CRUN, REAR DOOR GLASS, LH

main68152-05100iAZT270200811-201104

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-05060iAZT270200811-201104

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-05060iAZT270200811-201104

68630DCHECK ASSY, REAR DOOR, RH

main68630-05050iAZT270200811-201104

68640ACHECK ASSY, REAR DOOR, LH

main68630-05050iAZT270200811-201104

90109W0017

main90109-W0017

9015150026

main90151-50026

9015960200

main90159-60200

90178W0019

main90178-W0019

9018904200

main90189-04200

9018906227

main90189-06227

9038708171

main90387-08171

9155380620

main91553-80620

91611B0610

main91611-B0610

9356054025

main93560-54025
