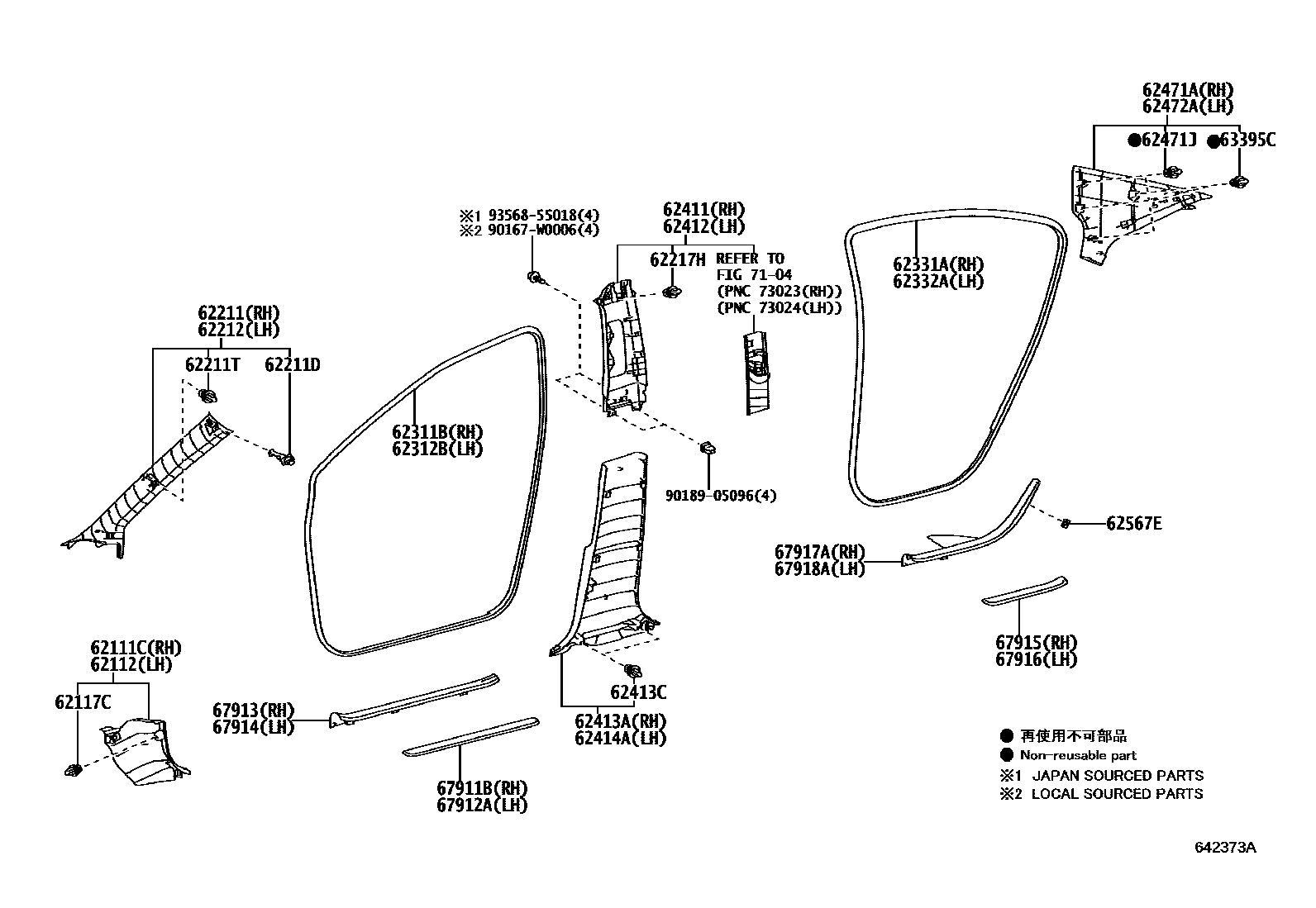

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-05050-C0iAZT270..LHD200811-201104

BLACK,TRIM2#,40

main62111-05050-E0iAZT270..LHD200811-201104

GREGE,TRIM40

main62111-05060-C0iAZT270..RHD200811-201104

BLACK,TRIM2#,40

main62111-05060-E0iAZT270..RHD200811-201104

GREGE,TRIM40

62112BOARD, COWL SIDE TRIM, LH

main62112-05050-C0iAZT270200811-201104

BLACK,TRIM2#,40

main62112-05050-E0iAZT270200811-201104

GREGE,TRIM40

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-W0005×2iAZT270200811-201104

62211GARNISH, FRONT PILLAR, RH

main62211-05040-B2iAZT270200811-200908

LT.GRAY,TRIM2#

main62211-05040-E2iAZT270200811-200908

GREGE,TRIM4#

main62211-05900-B0iAZT270200908-201104

LT.GRAY,TRIM2#

main62211-05900-E0iAZT270200908-201104

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90950-08004×2iAZT270200811-201104

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-W0005×2iAZT270200811-201104

62212GARNISH, FRONT PILLAR, LH

main62212-05040-B2iAZT270200811-200908

LT.GRAY,TRIM2#

main62212-05040-E2iAZT270200811-200908

GREGE,TRIM4#

main62212-05900-B0iAZT270200908-201104

LT.GRAY,TRIM2#

main62212-05900-E0iAZT270200908-201104

GRAGE,TRIM4#

62217HCLIP, CENTER PILLER GARNISH

main62217-13010×2iAZT270200811-201104

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-05050-C0iAZT270200811-201104

BLACK,TRIM2#

main62311-05050-E0iAZT270200811-201104

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-05050-C0iAZT270200811-201104

BLACK,TRIM2#

main62312-05050-E0iAZT270200811-201104

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-05120-C0iAZT270200811-201104

BLACK,TRIM2#

main62331-05120-E0iAZT270200811-201104

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-05120-C0iAZT270200811-201104

BLACK,TRIM2#

main62332-05120-E0iAZT270200811-201104

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-05030-B2iAZT270200811-201104

LT.GRAY,TRIM2#

main62410-05030-E2iAZT270200811-201104

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-05030-B2iAZT270200811-201104

LT.GRAY,TRIM2#

main62420-05030-E2iAZT270200811-201104

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-05040-C0iAZT270200811-201104

BLACK,TRIM2#,40

main62413-05040-E1iAZT270200811-201104

GREGE,TRIM40

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-W0005×4iAZT270200811-201104

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-05040-C0iAZT270200811-201104

BLACK,TRIM2#,40

main62414-05040-E1iAZT270200811-201104

GREGE,TRIM40

62471AGARNISH, ROOF SIDE, INNER RH

main62471-05130-B2iAZT270200811-201104

LT.GRAY,TRIM2#

main62471-05130-E2iAZT270200811-201104

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-W0009×4iAZT270200811-201104

62472AGARNISH, ROOF SIDE, INNER LH

main62472-05130-B2iAZT270200811-201104

LT.GRAY,TRIM2#

main62472-05130-E2iAZT270200811-201104

GREGE,TRIM4#

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040×2iAZT270200811-201104

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main63395-12150×4iAZT270200811-201104

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-05030iAZT270200811-201104

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-05030iAZT270200811-201104

67913PLATE, FRONT DOOR SCUFF, RH

main67913-05060-C0iAZT270200811-201104

BLACK,TRIM2#,40

main67913-05060-E0iAZT270200811-201104

GREGE,TRIM40

67914PLATE, FRONT DOOR SCUFF, LH

main67914-05060-C0iAZT270200811-201104

BLACK,TRIM2#,40

main67914-05060-E0iAZT270200811-201104

GREGE,TRIM40

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-05030iAZT270200811-201104

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-05030iAZT270200811-201104

67917APLATE, REAR DOOR SCUFF, RH

main67917-05060-C0iAZT270200811-201104

BLACK,TRIM2#,40

main67917-05060-E0iAZT270200811-201104

GREGE,TRIM40

67918APLATE, REAR DOOR SCUFF, LH

main67918-05060-C0iAZT270200811-201104

BLACK,TRIM2#,40

main67918-05060-E0iAZT270200811-201104

GREGE,TRIM40

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

90167W0006

main90167-W0006

9018905096

main90189-05096

9356855018

main93568-55018

34 parts on this diagram · 1 diagram in section
