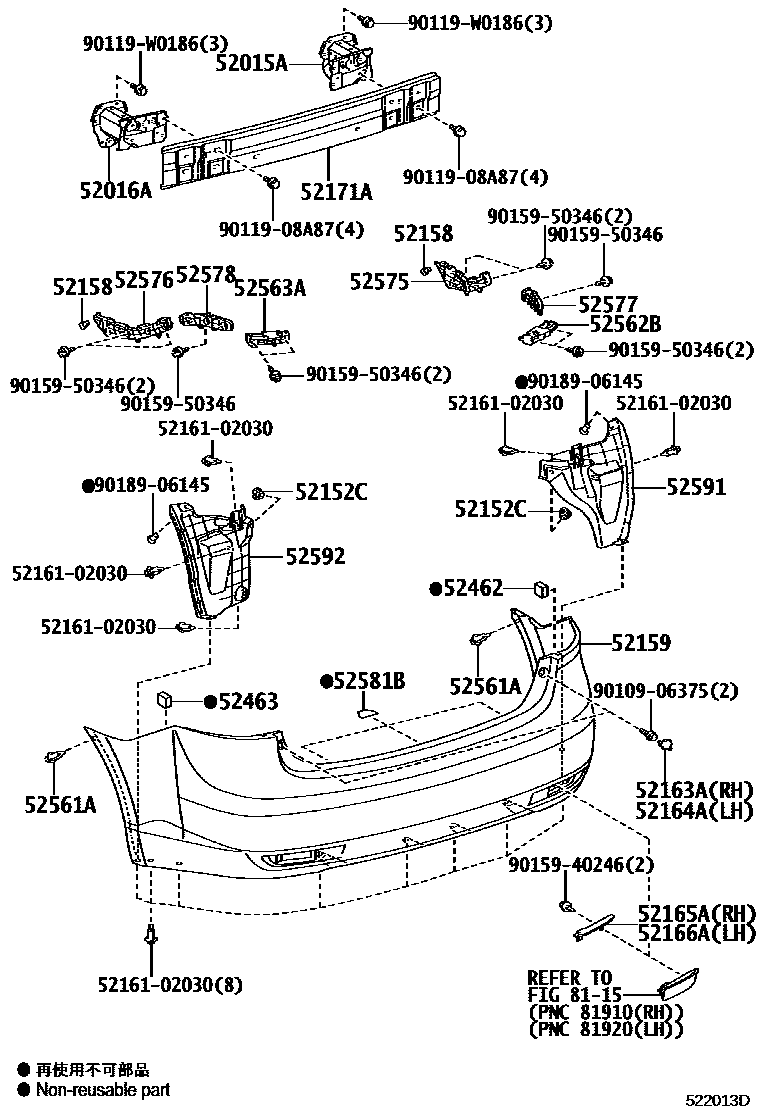

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52152CCLIP, REAR BUMPER SIDE
52158BRACKET, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
NO PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
NO PAINT REQ.
52171AREINFORCEMENT, REAR BUMPER, NO.1
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52561ACLIP(FOR REAR BUMPER RETAINER)
DK.GRAY
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
8115REFLEX REFLECTOR
5216102030CUSHION, REAR BUMPER GUARD, NO.1
main52161-02030
9010906375
main90109-06375
9011908A87
main90119-08A87
90119W0186
main90119-W0186
9015940246
main90159-40246
9015950346
main90159-50346
9018906145
main90189-06145
30 parts on this diagram · 1 diagram in section
