BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

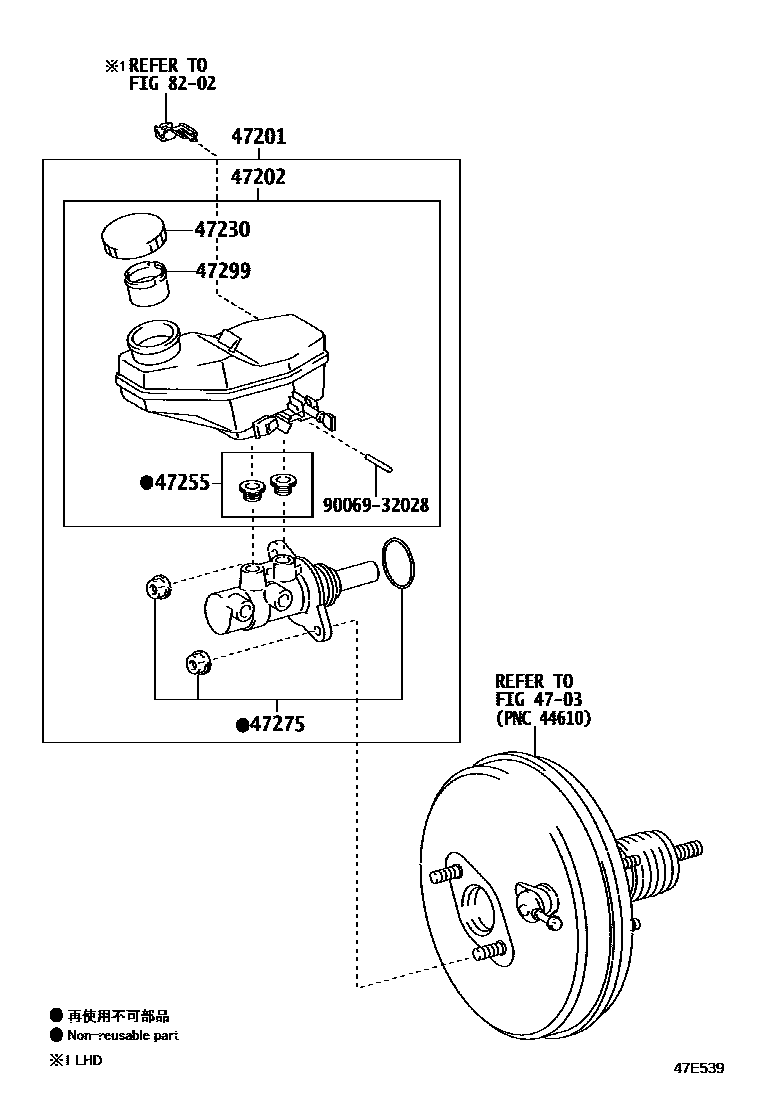

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09390iAZT270..LHD200811-201104

main47201-09410iAZT270..RHD200811-201104

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iAZT270..LHD200811-201104

main47220-09100iAZT270..RHD200811-201104

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iAZT270200811-201104

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iAZT270200811-201104

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iAZT270200811-201104

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iAZT270200811-201104

8202WIRING & CLAMP

→ Go to FIG 82-02

9006932028

main90069-32028

9 parts on this diagram · 1 diagram in section
