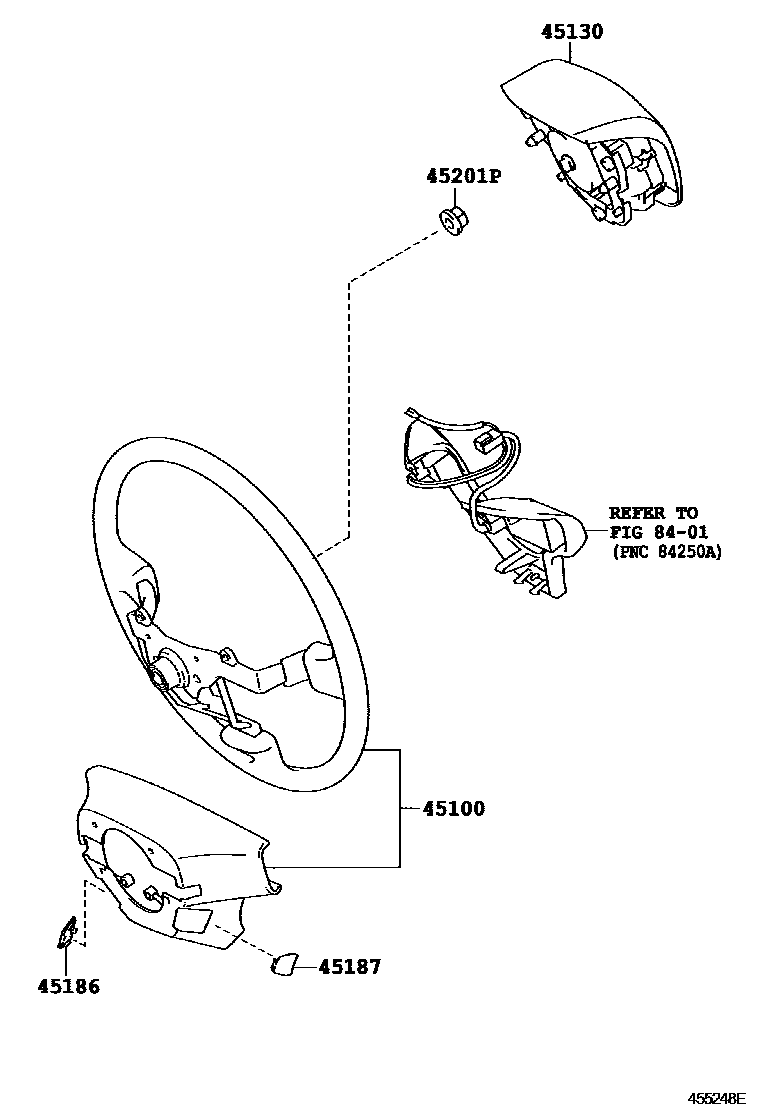

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-05860-C0iAZT270201006-201104

3-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-05880-C0iAZT270200811-201006

3-SPOKE,LEATHER,BLACK,TRIM2#,4#

45130BUTTON ASSY, HORN

main45130-05130-C0iAZT270200811-201104

BLACK,TRIM2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-05010-C0iAZT270200811-201104

BLACK,TRIM2#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-05010-C0iAZT270200811-201104

BLACK,TRIM2#,4#

45201PNUT, STEERING WHEEL SET

main90179-12071iAZT270200811-201104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6 parts on this diagram · 1 diagram in section
