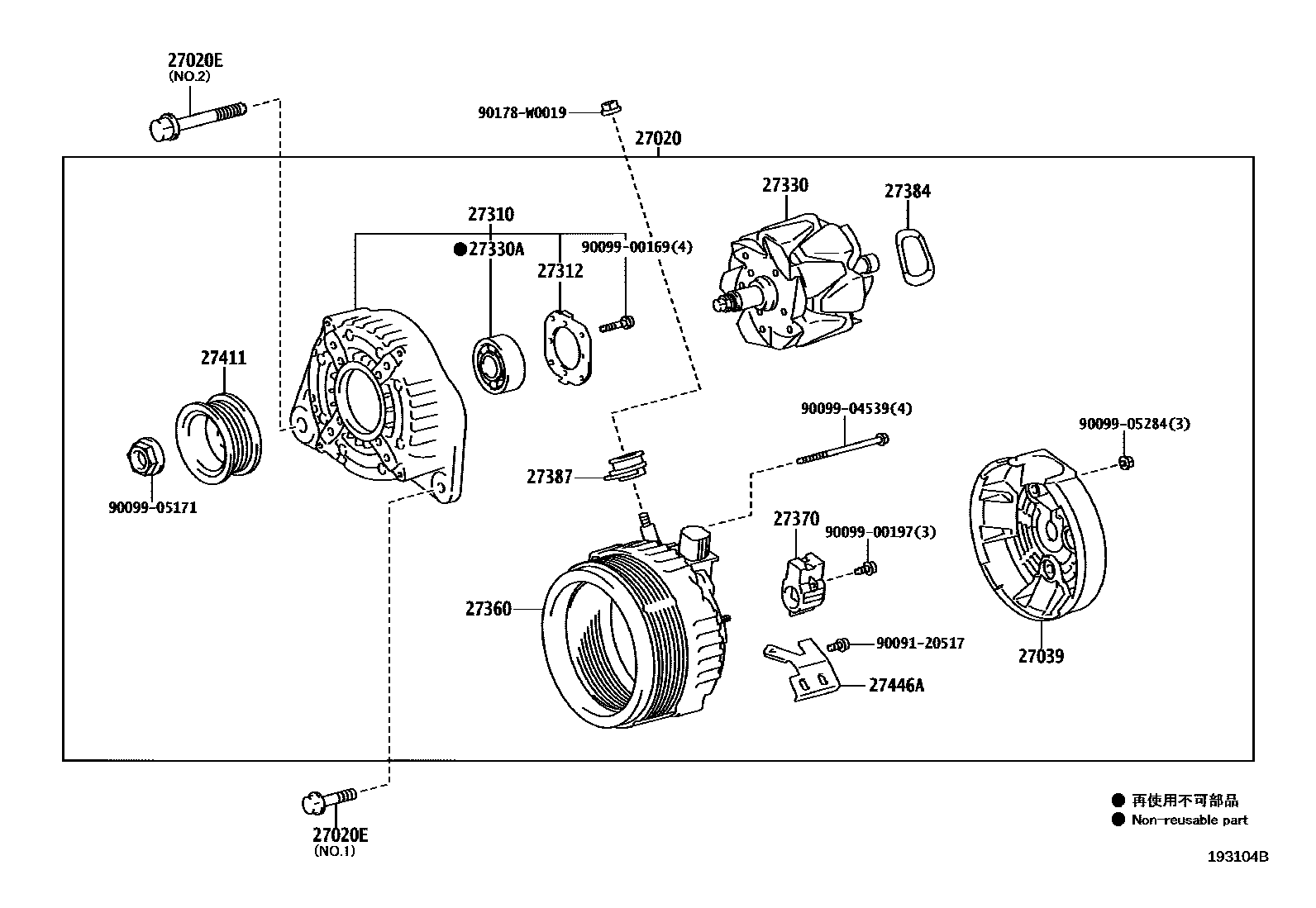

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
27020EBOLT(FOR ALTERNATOR)
NO.2
NO.1
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27411PULLEY, ALTERNATOR
27446ACLAMP
9009120517
main90091-20517
9009900169
main90099-00169
9009900197
main90099-00197
9009904539
main90099-04539
9009905171
main90099-05171
9009905284
main90099-05284
90178W0019
main90178-W0019
20 parts on this diagram · 1 diagram in section
