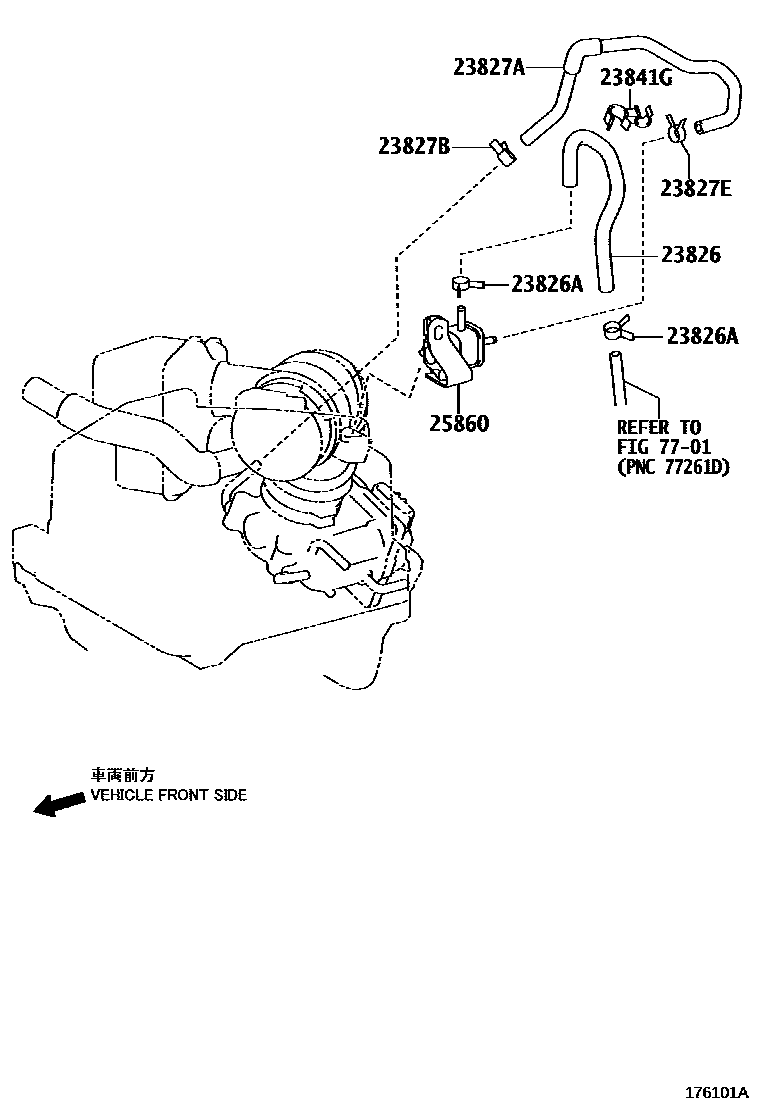

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28420i1AZFE..AZT270200811-201104

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300×2i1AZFE..AZT270200811-201104

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28320i1AZFE..AZT270200811-201104

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-41000i1AZFE..AZT270200811-201104

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51100i1AZFE..AZT270200811-201104

23841GCLAMP, FUEL HOSE

main23841-28050i1AZFE..AZT270200811-201104

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28170i1AZFE..AZT270200811-201104

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8 parts on this diagram · 1 diagram in section
