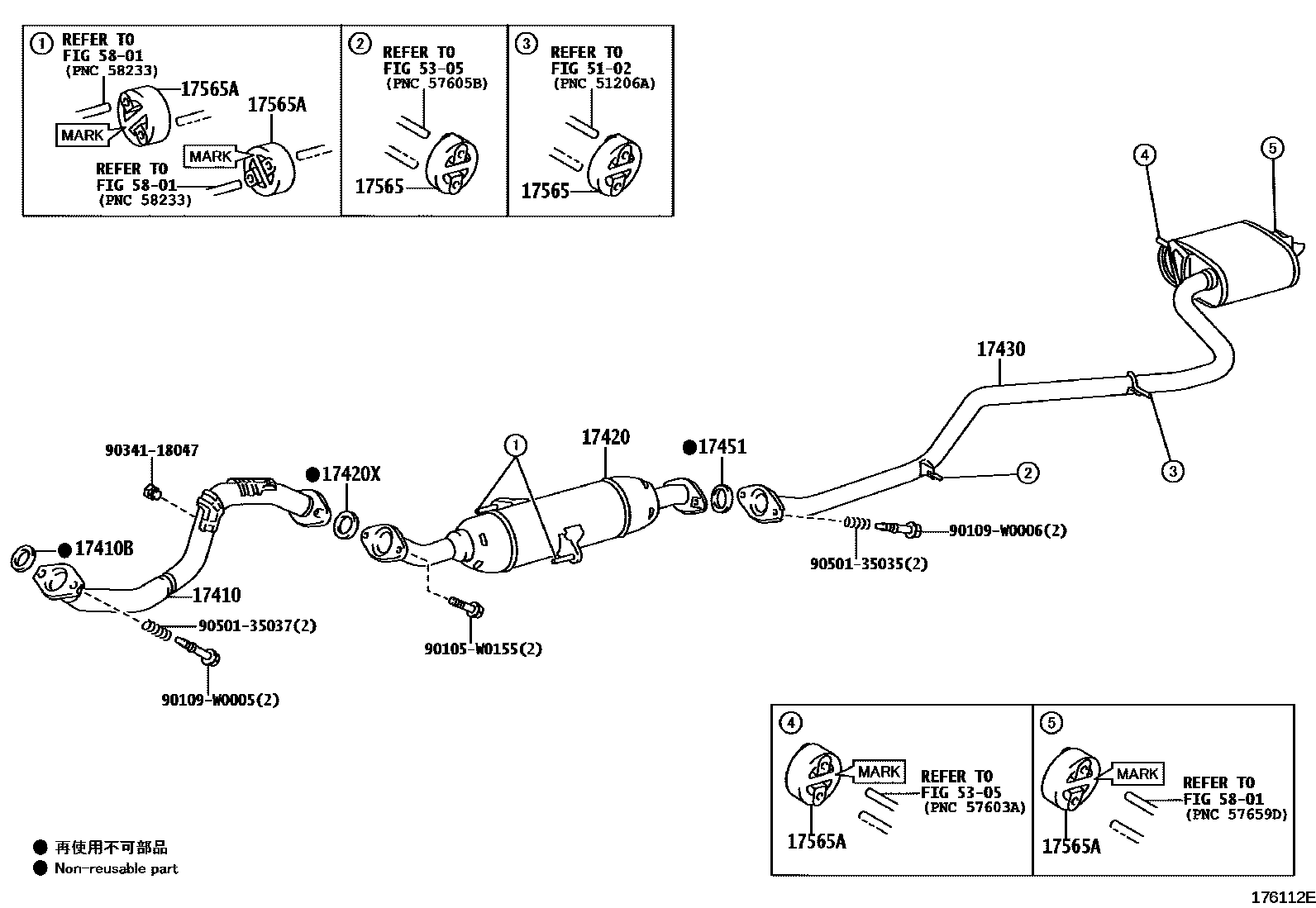

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-28610i1AZFE..AZT270200811-201104

17410BGASKET, EXHAUST PIPE

main17451-0R010i1AZFE..AZT270200811-201104

17420PIPE ASSY, EXHAUST, CENTER

main17420-0H240i1AZFE..AZT270200811-201104

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06078i1AZFE..AZT270200811-201104

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T080i1AZFE..AZT270200811-201104

17451GASKET, EXHAUST PIPE

main17451-0D111i1AZFE..AZT270200811-201103

main17451-0D112i1AZFE..AZT270201103-201104

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D100×2i1AZFE..AZT270200811-201104

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0J031×4i1AZFE..AZT270200811-201104

MARK = 50

main17565-22040×4i1AZFE..AZT270200811-201104

NO MARK

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90105W0155

main90105-W0155

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9034118047

main90341-18047

9050135035

main90501-35035

9050135037

main90501-35037

17 parts on this diagram · 1 diagram in section
