STANDARD TOOL

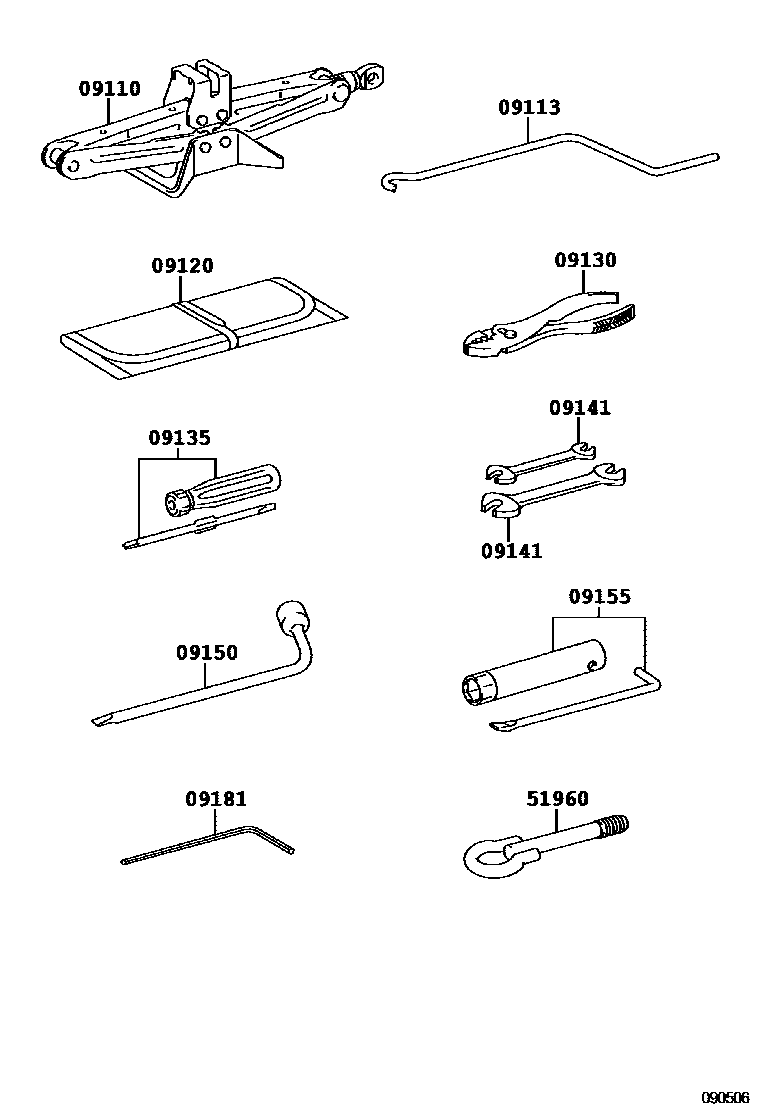

Parts diagram

09110JACK ASSY

main09111-05050i201012-201104

main09111-0F020i200811-201011

09113HANDLE, JACK

main09113-05020i200811-201104

09120BAG, TOOL

main09120-05040i200811-201104

09130PLIERS

main90080-99009i200811-201104

09135DRIVER, SCREW

main90080-99008i200811-201104

09141SPANNER

main90080-99010i200811-201104

8 X 10

main90080-99011i200811-201104

12 X 14

09150WRENCH, HUB NUT BOX

main09150-05011i200811-201104

09155WRENCH, SPARK PLUG

main09155-02020i200811-201104

09181ROD, PARKING BRAKE RELEASE

main09181-05010i200811-201104

51960HOOK ASSY, FRONT

main51960-05010×2i200811-201104

10 parts on this diagram · 1 diagram in section
