HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1CONTROL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR 0006 1SENSOR

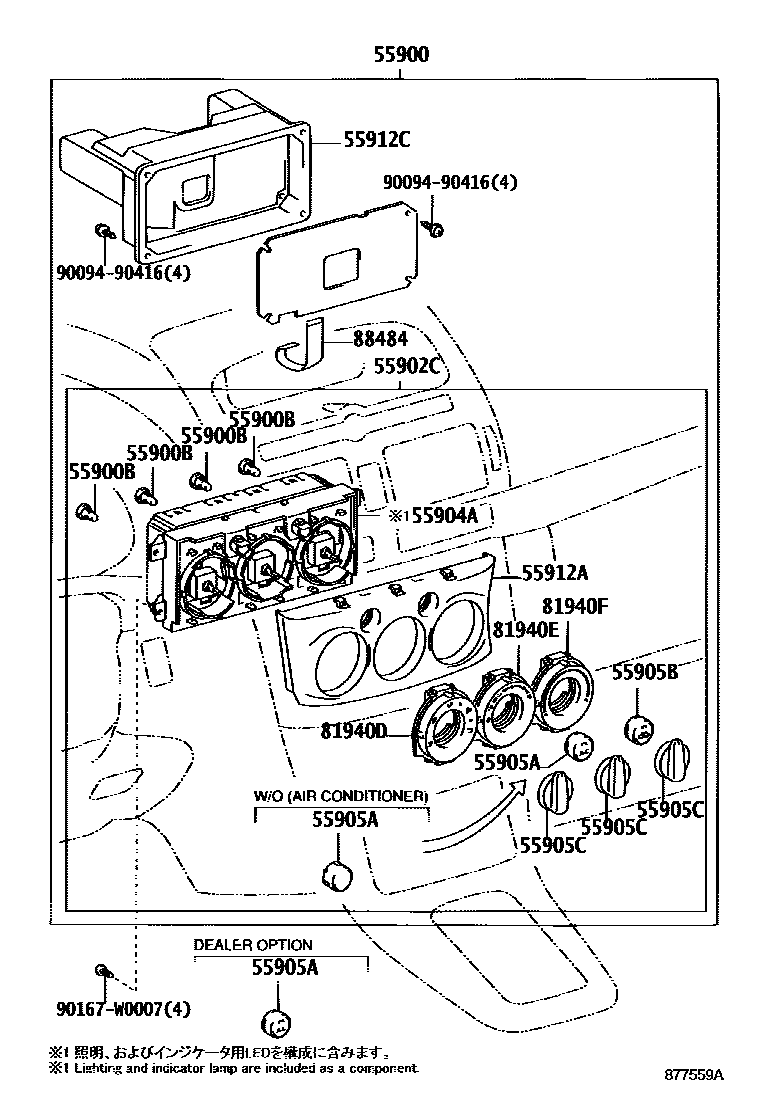

55900CONTROL ASSY, AIR CONDITIONER

main55900-05250iAZT250..LHD200604-200707

main55900-05251iAZT250..LHD200708

main55900-05260iAZT250..RHD200604-200707

main55900-05261iAZT250..RHD200708

main55900-05100supersedes 55900-05101iAZT250200301-200406

AIR CONDITIONER-MANUAL,DOP

main55900-05101iAZT250200407-200604

AIR CONDITIONER-MANUAL,DOP

main55900-05110supersedes 55900-05101iAZT250200301-200406

AIR CONDITIONER-W/O

main55900-05111supersedes 55900-05101iAZT250200407-200503

AIR CONDITIONER-W/O

55900BBULB, AIR CONDITIONER CONTROL

main90011-11030×3supersedes 90011-11041iAZT250200301-200406

14V 0.04A,W(CAP); 14V 0.04A,W(CAP),AIR CONDITIONER-MANUAL,DOP

main90011-11040×3supersedes 90011-11041iAZT250200407-200604

14V 0.04A,W(CAP); 14V 0.04A,W(CAP),AIR CONDITIONER-MANUAL,DOP

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-05030supersedes 55902-05031iAZT250200301-200406

AIR CONDITIONER-MANUAL,DOP

main55902-05031iAZT250200407-200604

AIR CONDITIONER-MANUAL,DOP

main55902-05040supersedes 55902-05031iAZT250200301-200406

AIR CONDITIONER-W/O

main55902-05041supersedes 55902-05031iAZT250200407-200503

AIR CONDITIONER-W/O

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-05030supersedes 55904-05031iAZT250200301-200406

AIR CONDITIONER-MANUAL,DOP

main55904-05031iAZT250200407-200604

AIR CONDITIONER-MANUAL,DOP

55905AKNOB, HEATER CONTROL

main55905-05090iAZT250200301-200503

AIR CONDITIONER-MANUAL,DOP

main55905-05120supersedes 55905-05090iAZT250200301-200503

AIR CONDITIONER-W/O

55905BKNOB, HEATER CONTROL, NO.2

main55905-05100iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

55905CKNOB, HEATER CONTROL, NO.3

main55905-05110×3iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

55912AHOUSING, HEATER CONTROL

main55912-05030iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

55912CHOUSING, HEATER CONTROL

main55912-05060iAZT250200604-200707

main55912-05040iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

81940DLENS ASSY, HEATER CONTROL

main81940-05060iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

81940ELENS ASSY, HEATER CONTROL

main81940-05070iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

81940FLENS ASSY, HEATER CONTROL

main81940-05080iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

88484WIRE, COOLER, NO.1

main88484-05030iAZT250200604-200707

main88484-05020iAZT250200301-200604

AIR CONDITIONER-MANUAL,DOP

9009490416

main90094-90416

90167W0007

main90167-W0007

15 parts on this diagram · 6 diagrams in section
