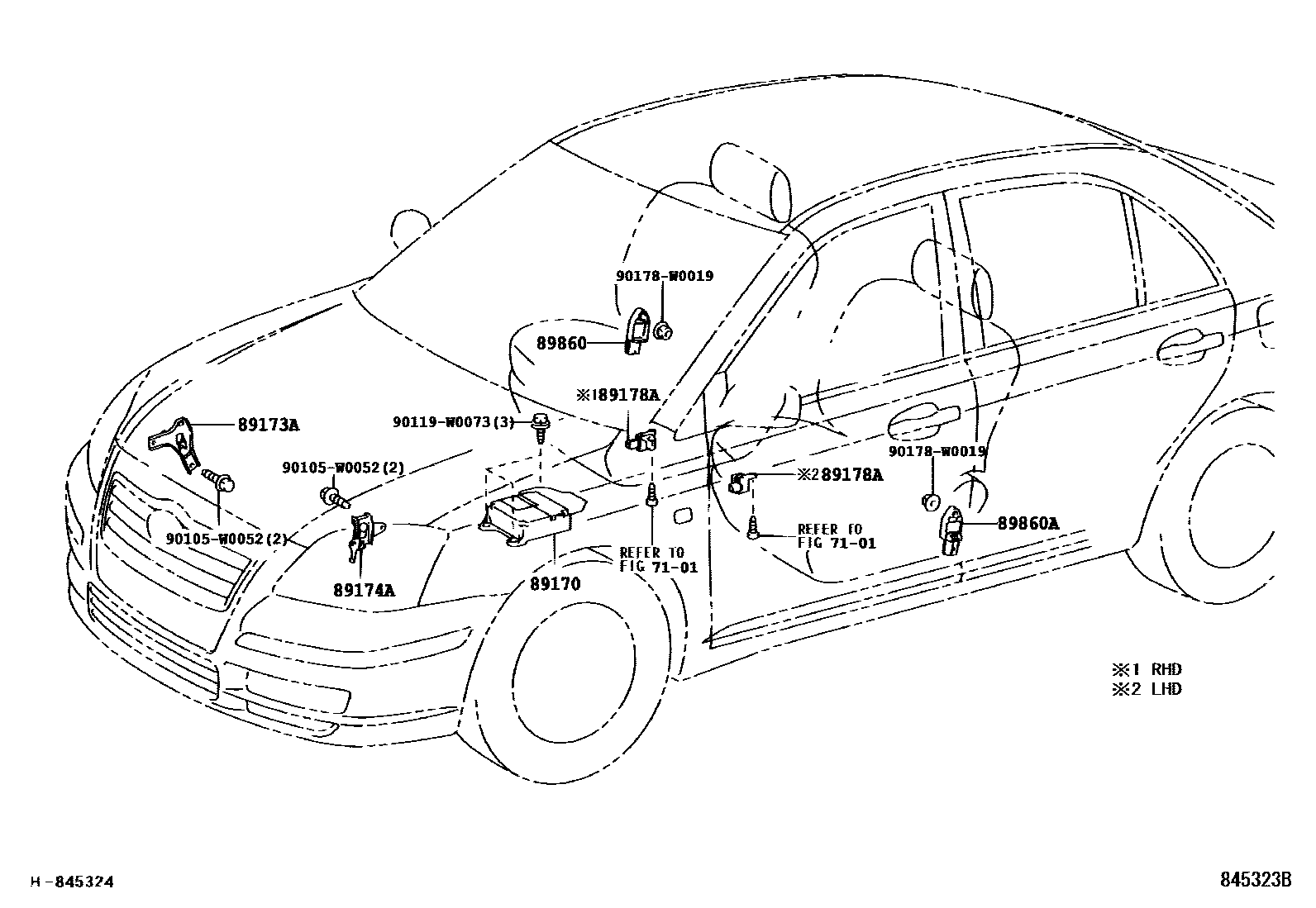

AIR BAG

0001 1 0002 1

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

89170SENSOR ASSY, AIRBAG

main89170-05110iAZT250..LHD200301-200502

main89170-05111iAZT250..LHD200503-200604

main89170-05150iAZT250..RHD200301-200502

main89170-05151iAZT250..RHD200503-200604

main89170-05200iAZT250..RHD200604

main89170-05210iAZT250..LHD200604

89173ASENSOR, AIRBAG, FRONT RH

main89173-05030iAZT250200301-200604

main89173-09340iAZT250200604

89174ASENSOR, AIRBAG, FRONT LH

main89174-05010iAZT250200301-200604

main89174-09060iAZT250200604

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iAZT250..LHD200604

main89178-0W010iAZT250..RHD200301-200604

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02020iAZT250200604

main89831-05010iAZT250200301-200604

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02020iAZT250200604

main89831-05010iAZT250200301-200604

90105W0052

main90105-W0052

90119W0073

main90119-W0073

90178W0019

main90178-W0019

10 parts on this diagram · 2 diagrams in section
