WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CONNECTOR

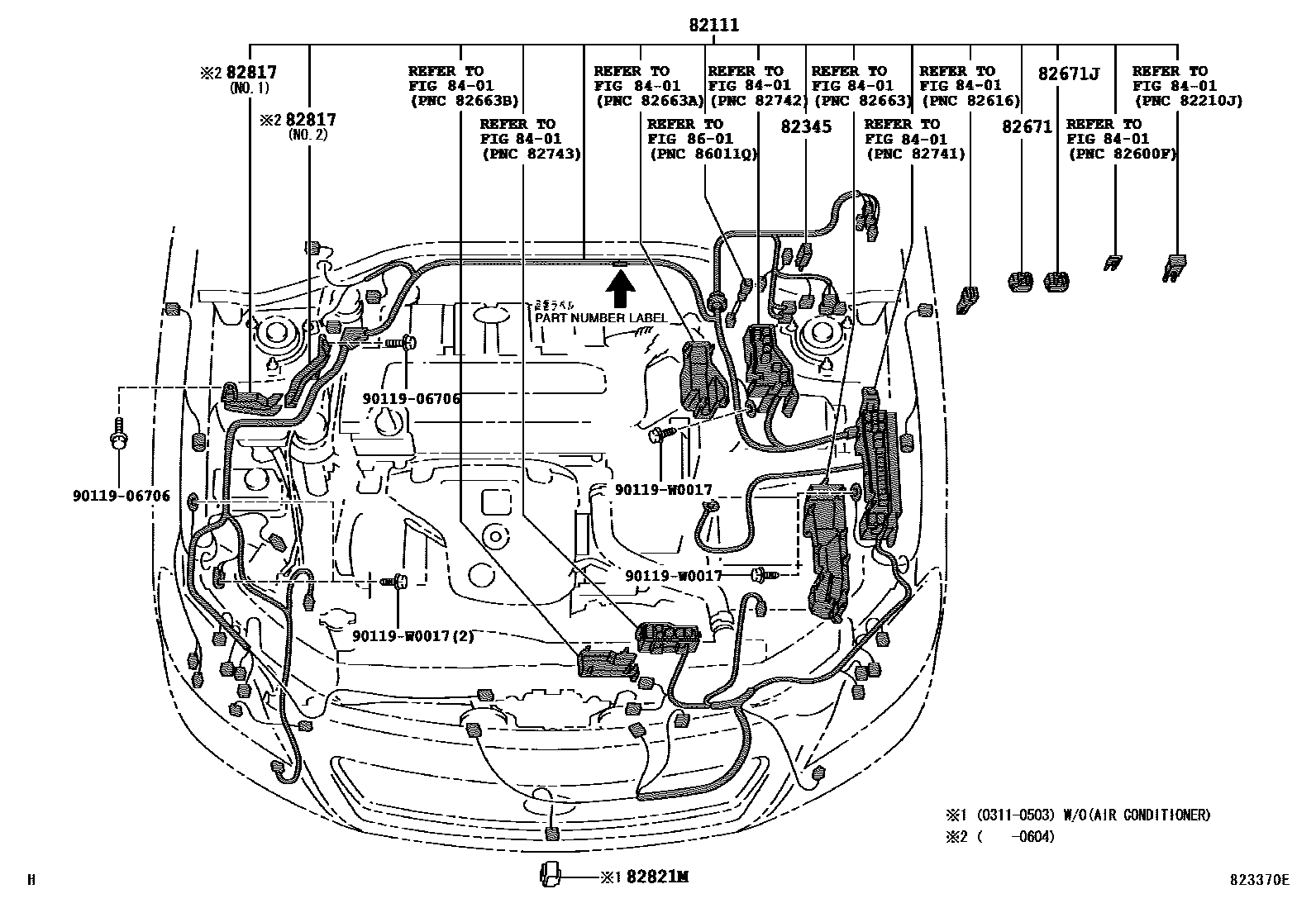

82111WIRE, ENGINE ROOM MAIN

main82111-05E50iAZT250..LHD200604-200811

main82111-05F40iAZT250..RHD200604-200811

main82115-05720iAZT250..RHD200301-200402

main82115-05721iAZT250..RHD200402-200604

main82115-05730iAZT250..LHD200301-200402

main82115-05731iAZT250..LHD200402-200604

82345DIODE

main82345-12030iAZT250200301-200604

82671BLOCK, JUNCTION

main82671-30360iAZT250200301-200604

82671JBLOCK, JUNCTION, NO.2

main82671-30370iAZT250200301-200604

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-05170iAZT250200301-200604

NO.2

main82817-05320iAZT250200301-200604

NO.1

82821MCOVER, CONNECTOR

main82821-12400iAZT250200311-200503

AIR CONDITIONER-W/O

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9011906706

main90119-06706

90119W0017

main90119-W0017

10 parts on this diagram · 11 diagrams in section
