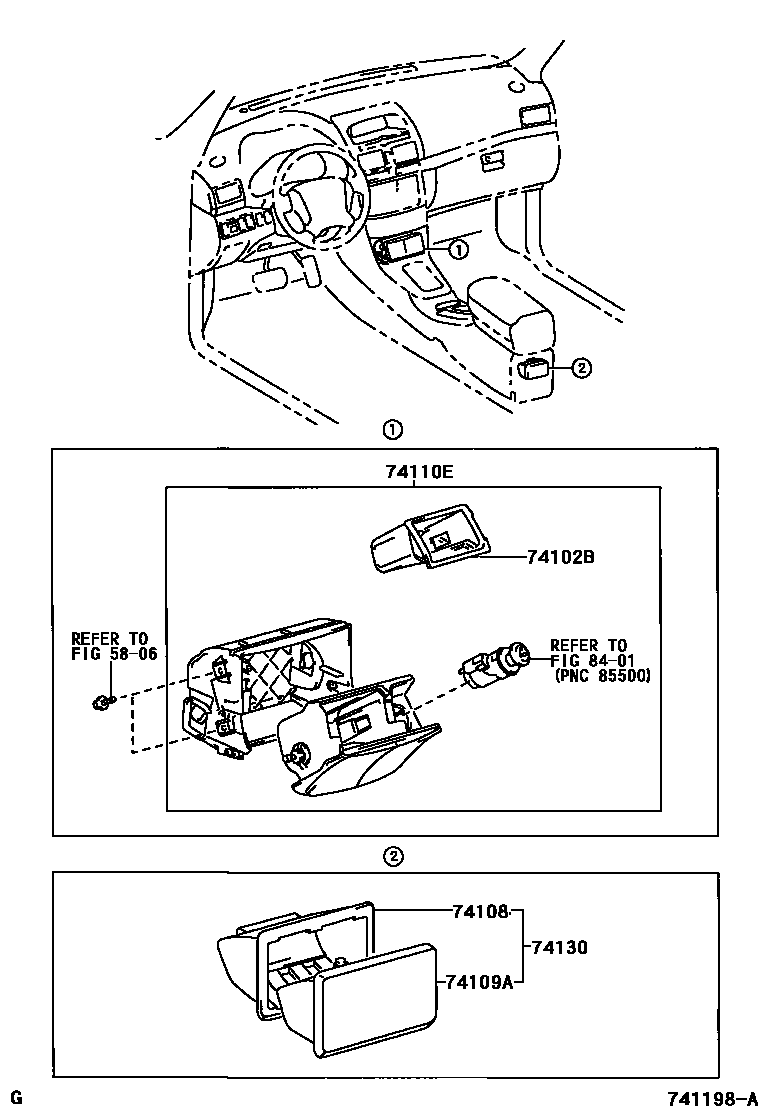

ASH RECEPTACLE

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-05060iAZT250200301-200407

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02010iAZT250200301-200604

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-05020-A0iAZT250200301-200604

IVORY,TRIM0#

main74109-05020-B0iAZT250200301-200604

DK.GRAY,TRIM1#

main74109-05020-E0iAZT250200604

GREGE,TRIM4#

74110ERECEPTACLE ASSY, FRONT ASH

main74110-05020iAZT250200301-200408

main74110-05021iAZT250200408-200604

74130RECEPTACLE ASSY, REAR ASH

main74130-05020-A0iAZT250200301-200604

IVORY,TRIM0#

main74130-05020-B0iAZT250200301-200604

DK.GRAY,TRIM1#

main74130-05020-E0iAZT250200604

GREGE,TRIM4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7 parts on this diagram · 1 diagram in section
