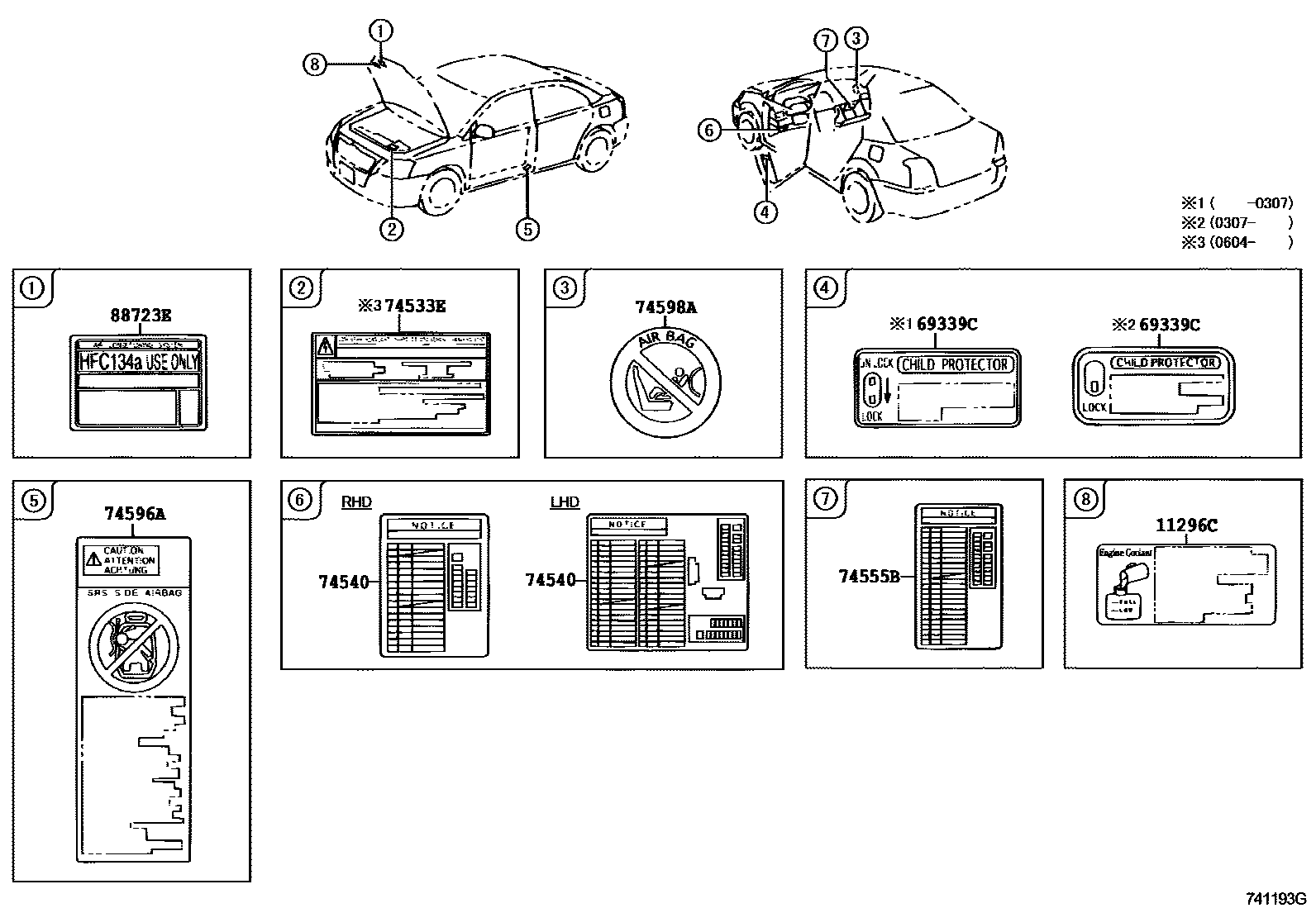

CAUTION PLATE (EXTERIOR & INTERIOR)

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1AZFE..AZT250200604-200702

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-03010×2iAZT250200301-200307

main69339-12010×2iAZT250200307-200604

74533ELABEL, HEADLAMP VOLTAGE CAUTION

main74533-05010×2iAZT250200604

74540PLATE, FUSE BLOCK CAUTION

main82683-20200iAZT250..LHD200301-200304

main82683-20201iAZT250..LHD200304-200604

main82683-20210iAZT250..RHD200301-200304

main82683-20211iAZT250..RHD200604

74555BPLATE, FUSE BLOCK CAUTION

main82683-20220iAZT250..RHD200301-200604

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12020×2iAZT250200301-200604

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-20010iAZT250200301-200604

88723ELABEL, COOLER SERVICE CAUTION

main88733-20020iAZT250200604

8 parts on this diagram · 1 diagram in section
