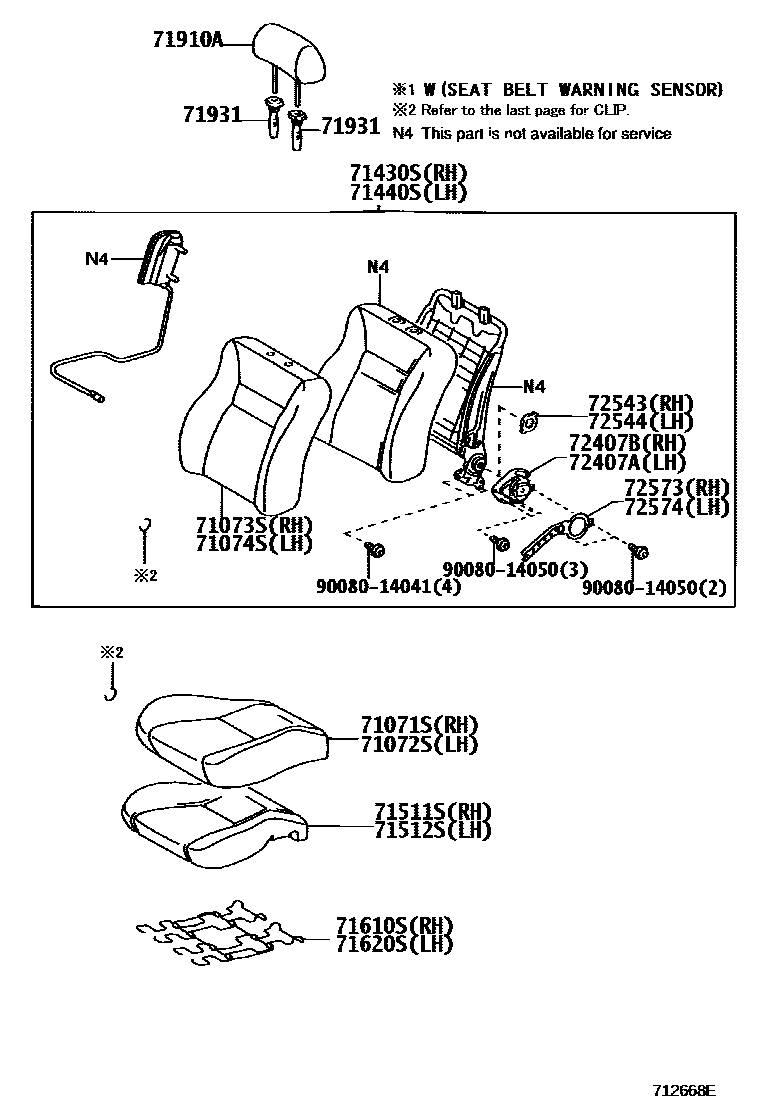

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1RH SEAT 0004 1LH SEAT 0005 1POWER SEAT,RH 0006 1POWER SEAT,LH 0007 1CLIP

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-05620-A1iAZT250200301-200508

IVORY,TRIM0#

main71071-05620-B0iAZT250200301-200508

DK.GRAY,TRIM1#

main71071-05621-A1iAZT250200509-200604

IVORY,TRIM0#

main71071-05621-B0iAZT250200509-200604

DK.GRAY,TRIM1#

main71071-05720-B1iAZT250200604-200703

DK.GRAY,TRIM1#

main71071-05720-E0iAZT250200604-200703

GREGE,TRIM4#

main71071-05721-B1iAZT250200703-200810

DARK GREY,TRIM1#

main71071-05721-E0iAZT250200703-200810

GREGE,TRIM4#

main71071-05690-B0iAZT250200604-200610

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main71071-05690-E0iAZT250200604-200610

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main71071-05691-B0iAZT250200611

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main71071-05691-E0iAZT250200611

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-05620-A1iAZT250200301-200508

IVORY,TRIM0#

main71071-05620-B0iAZT250200301-200508

DK.GRAY,TRIM1#

main71071-05621-A1iAZT250200509-200604

IVORY,TRIM0#

main71071-05621-B0iAZT250200509-200604

DK.GRAY,TRIM1#

main71071-05720-B1iAZT250200604-200703

DK.GRAY,TRIM1#

main71071-05720-E0iAZT250200604-200703

GREGE,TRIM4#

main71071-05721-B1iAZT250200703-200810

DARK GREY,TRIM1#

main71071-05721-E0iAZT250200703-200810

GREGE,TRIM4#

main71072-05560-B0iAZT250200604-200610

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main71072-05560-E0iAZT250200604-200610

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main71072-05561-B0iAZT250200611

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main71072-05561-E0iAZT250200611

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-05790-A1iAZT250200301-200508

IVORY,TRIM0#

main71073-05790-B0iAZT250200301-200508

DK.GRAY,TRIM1#

main71073-05791-A1iAZT250200509-200604

IVORY,TRIM0#

main71073-05791-B0iAZT250200509-200604

DK.GRAY,TRIM1#

main71073-05870-B0supersedes 71073-05710-B1iAZT250200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main71073-05870-E0supersedes 71073-05710-E0iAZT250200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-05610-A1iAZT250200301-200508

IVORY,TRIM0#

main71074-05610-B0iAZT250200301-200508

DK.GRAY,TRIM1#

main71074-05611-A1iAZT250200509-200604

IVORY,TRIM0#

main71074-05611-B0iAZT250200509-200604

DK.GRAY,TRIM1#

main71074-05680-B0supersedes 71074-05550-B1iAZT250200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main71074-05680-E0supersedes 71074-05550-E0iAZT250200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-05780-A0iAZT250200301-200604

IVORY,TRIM0#

main71430-05780-B0iAZT250200301-200604

DK. GRAY,TRIM1#

main71430-05840-B1iAZT250200604

DK.GRAY,TRIM1#

main71430-05840-E0iAZT250200604

GREGE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-05670-A0iAZT250200301-200604

IVORY,TRIM0#

main71440-05670-B0iAZT250200301-200604

DK. GRAY,TRIM1#

main71440-05730-B1iAZT250200604

DK.GRAY,TRIM1#

main71440-05730-E0iAZT250200604

GREGE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-05060iAZT250200301-200604

main71511-05050supersedes 71511-05060iAZT250200604

LEATHER & POWER SEAT,ELEGANT

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-05060iAZT250200301-200604

main71512-05010supersedes 71511-05060iAZT250200604

LEATHER & POWER SEAT,ELEGANT

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-02010iAZT250200301-200604

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71051-02010iAZT250200301-200604

71910AHEADREST ASSY, FRONT SEAT

main71910-CA030-A1×2iAZT250200301-200604

IVORY,TRIM0#

main71910-CA030-B0×2iAZT250200301-200604

DK.GRAY,TRIM1#

main71910-CA040-B0×2supersedes 71910-05180-B0iAZT250200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main71910-CA040-E0×2supersedes 71910-05180-E0iAZT250200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02070-A0×2iAZT250200301-200604

W(LOCK),IVORY,TRIM0#

main71930-02070-B0×2iAZT250200301-200604

W(LOCK),DK.GRAY,TRIM1#

main71930-02070-E0×2iAZT250200604

W(LOCK),GREGE,TRIM4#

main71931-02050-A0×2iAZT250200301-200604

W/O(LOCK),IVORY,TRIM0#

main71931-02050-B0×2iAZT250200301-200604

W/O(LOCK),DK.GRAY,TRIM1#

main71931-02050-E0×2iAZT250200604

W/O(LOCK),GREGE,TRIM4#

72407AHOUSING SUB-ASSY, FRONT SEAT RECLINING, LH

main72407-02020iAZT250200604

72407BHOUSING SUB-ASSY, FRONT SEAT RECLINING RH

main72407-02010iAZT250200301-200604

72543PLATE, RECLINING CONTROL, RH

main72543-02010iAZT250200604

72544PLATE, RECLINING CONTROL, LH

main72543-02010iAZT250200604

72573LEVER, RECLINING CONTROL, RH

main72573-02010iAZT250200301-200604

72574LEVER, RECLINING CONTROL, LH

main72574-02010iAZT250200301-200604

9008014041

main90080-14041

9008014050

main90080-14050

20 parts on this diagram · 7 diagrams in section
