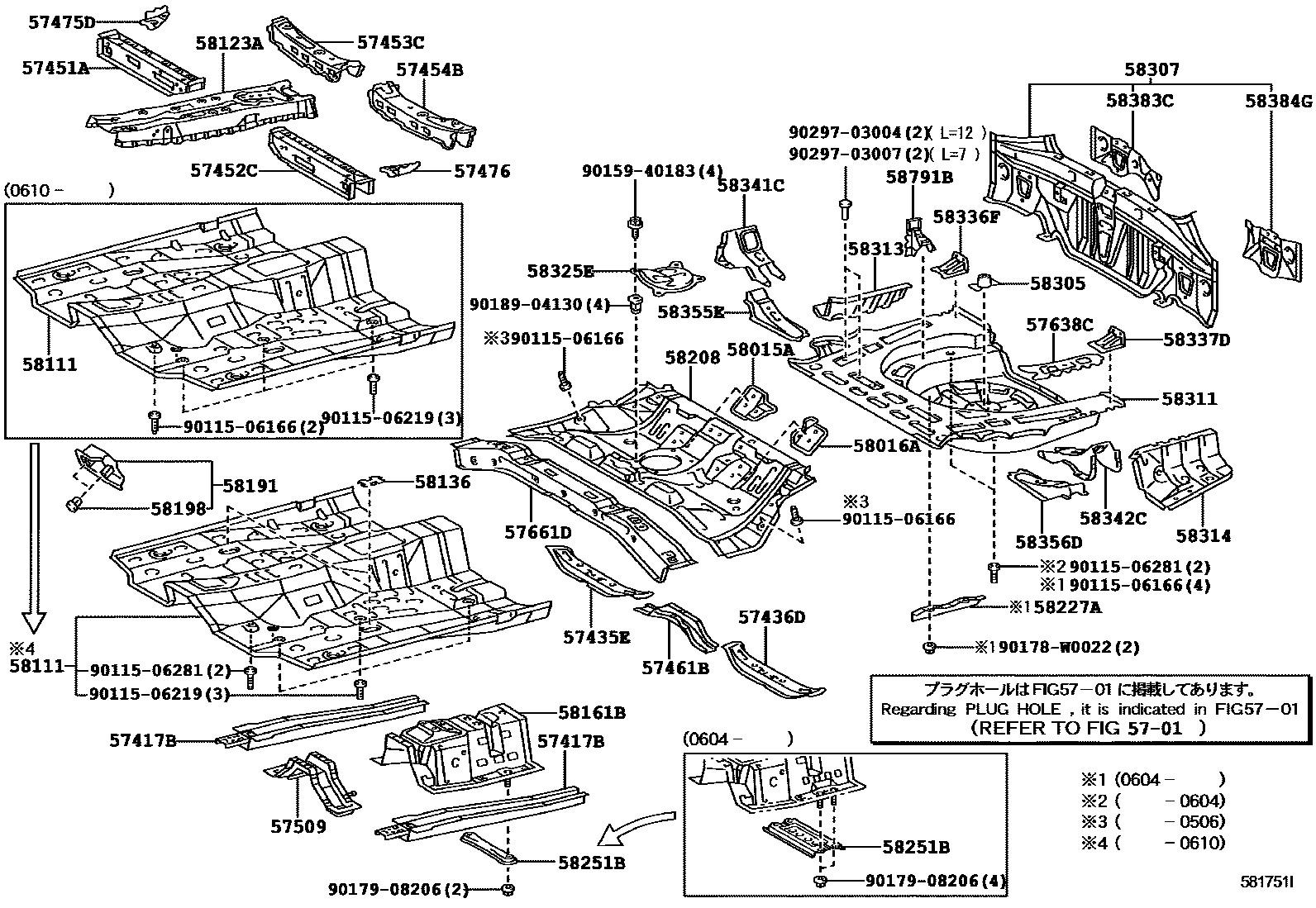

FLOOR PAN & LOWER BACK PANEL

5701

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57505-05040iAZT250200301-200609

57435EMEMBER, CENTER FLOOR SIDE, RH

main57435-02010iAZT250200301-200604

57436DMEMBER, CENTER FLOOR SIDE, LH

main57436-05010iAZT250200301-200604

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-02050iAZT250200301-200604

main57451-02051iAZT250200604

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-02020iAZT250200301-200604

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-05030iAZT250200301-200609

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-05010iAZT250200301-200609

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-02040iAZT250200301-200604

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-05020iAZT250200301-200604

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-05010iAZT250200301-200604

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-02010iAZT250..LHD200301-200503

main57509-05010iAZT250200503-200609

57638CREINFORCEMENT, REAR FLOOR SIDE MEMBER, CENTER LH

main57638-05030iAZT250200311-200604

main57638-20100iAZT250200301-200311

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-05010iAZT250200301-200604

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02051iAZT250200301-200604

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02081iAZT250200301-200604

58111PAN, FRONT FLOOR

main58111-05050iAZT250200301-200502

sub58111-05051

main58111-05051iAZT250200503-200504

sub58111-05052

main58111-05052iAZT250200505-200610

sub58111-05901

main58111-05901iAZT250200610

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-05020iAZT250200301-200604

58136COVER, FRONT FLOOR HOLE

main58136-02020iAZT250200301-200604

(L)

main58136-33010iAZT250200301-200604

(J)

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-05010iAZT250..RHD200301-200502

main57805-05012iAZT250..RHD200503-200604

main57805-05020iAZT250..LHD200301-200502

main57805-05022iAZT250..LHD200503-200604

main57805-05040iAZT250..RHD200604-200609

main57805-05050iAZT250..LHD200604-200609

58191FOOTREST, FRONT FLOOR

main58191-05030iAZT250..RHD200301-200604

main58192-05030iAZT250..LHD200301-200604

58198CLIP, FOOTREST

main58198-05010iAZT250200301-200604

58208PAN, CENTER FLOOR

main58211-02100iAZT250200301-200604

58227APLATE, AIR GUIDE

main58228-05010iAZT250200604

58251BBRACE, FLOOR PANEL, FRONT

main58251-12030iAZT250200301-200604

main58251-20020iAZT250200604

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iAZT250200301-200803

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-05070iAZT250200301-200604

58311PAN, REAR FLOOR

main58311-05900iAZT250200301-200604

main58311-05903iAZT250200604

58313PANEL, REAR FLOOR SIDE, RH

main58313-05050iAZT250200301-200803

58314PANEL, REAR FLOOR SIDE, LH

main58314-05040iAZT250200301-200803

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-13020iAZT250200301-200604

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-20050iAZT250200301-200803

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-05030iAZT250200311-200604

main58337-20010iAZT250200301-200311

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-05010iAZT250200301-200604

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-05010iAZT250200301-200604

58355EBRACKET, REAR BUMPER ARM, RH

main58355-05010iAZT250200301-200604

main58355-05020iAZT250200604

58356DBRACKET, REAR BUMPER ARM, LH

main58356-05010iAZT250200301-200604

main58356-05020iAZT250200604

58383CREINFORCEMENT, BODY LOWER BACK PANEL, INNER

main58383-05010iAZT250200301-200604

58384GGUSSET, LOWER BACK, UPPER RH

main58384-05020iAZT250200301-200604

58791BCARRIER, JACK

main58791-05010iAZT250200301-200803

9011506166

main90115-06166

9011506219

main90115-06219

9011506281

main90115-06281

9015940183

main90159-40183

90178W0022

main90178-W0022

9017908206

main90179-08206

9018904130

main90189-04130

9029703004

main90297-03004

9029703007

main90297-03007

49 parts on this diagram · 1 diagram in section
