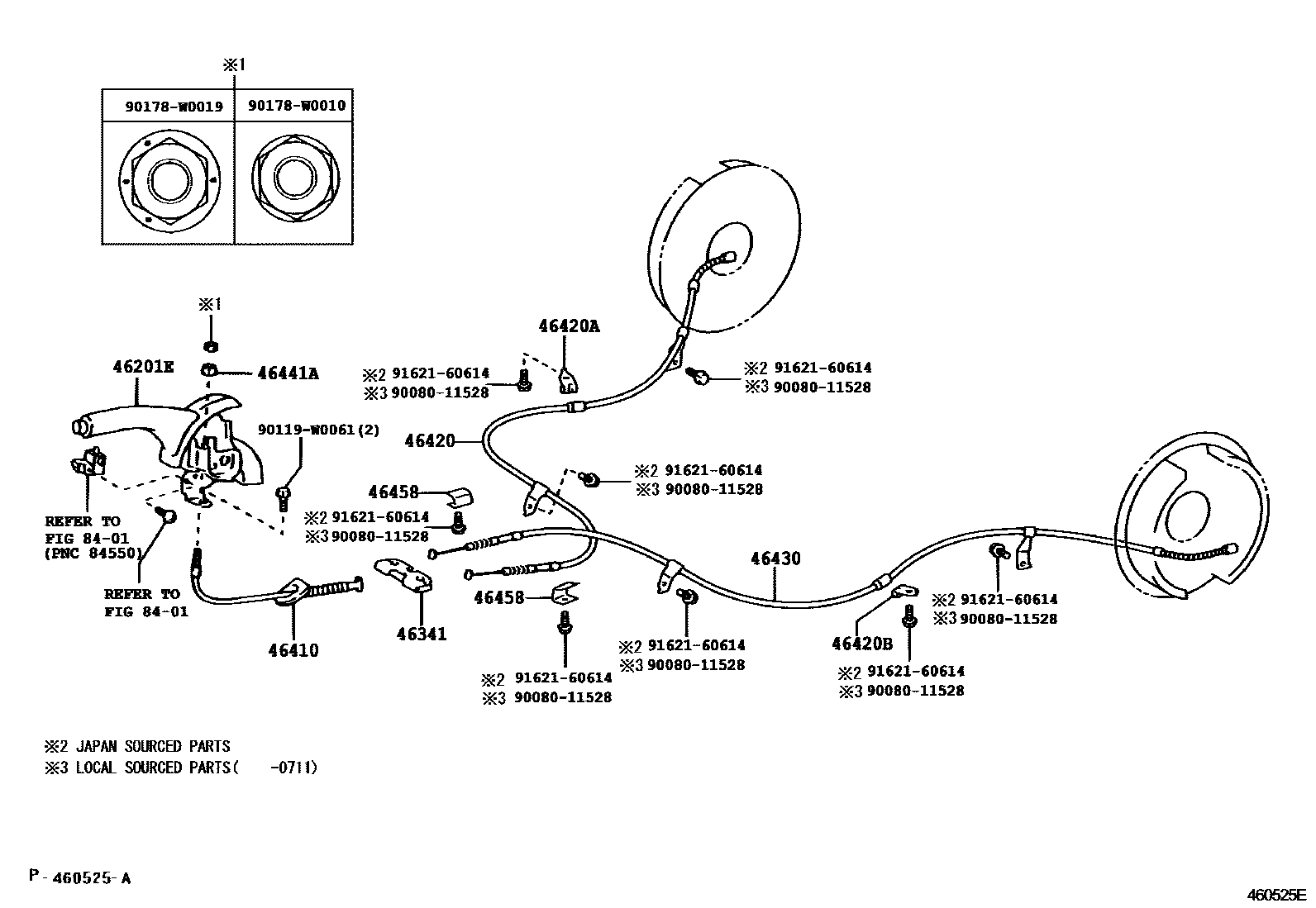

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02121-B0iAZT250..RHD200301-200604

DK.GRAY,TRIM0#,1#

main46201-02131-B0iAZT250..LHD200301-200604

DK.GRAY,TRIM0#,1#

46341EQUALIZER, PARKING BRAKE

main46341-20070iAZT250200301-200604

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12270iAZT250200301-200604

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-05030iAZT250200301-200604

main46420-20570iAZT250200701

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B88iAZT250200301-200604

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B88iAZT250200301-200604

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-05030iAZT250200301-200604

main46430-20680iAZT250200701

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06171iAZT250200301-200604

46458RETAINER, CABLE

main46458-28010×2iAZT250200301-200604

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011528

main90080-11528

90119W0061

main90119-W0061

90178W0010

main90178-W0010

90178W0019

main90178-W0019

9162160614

main91621-60614

15 parts on this diagram · 2 diagrams in section
