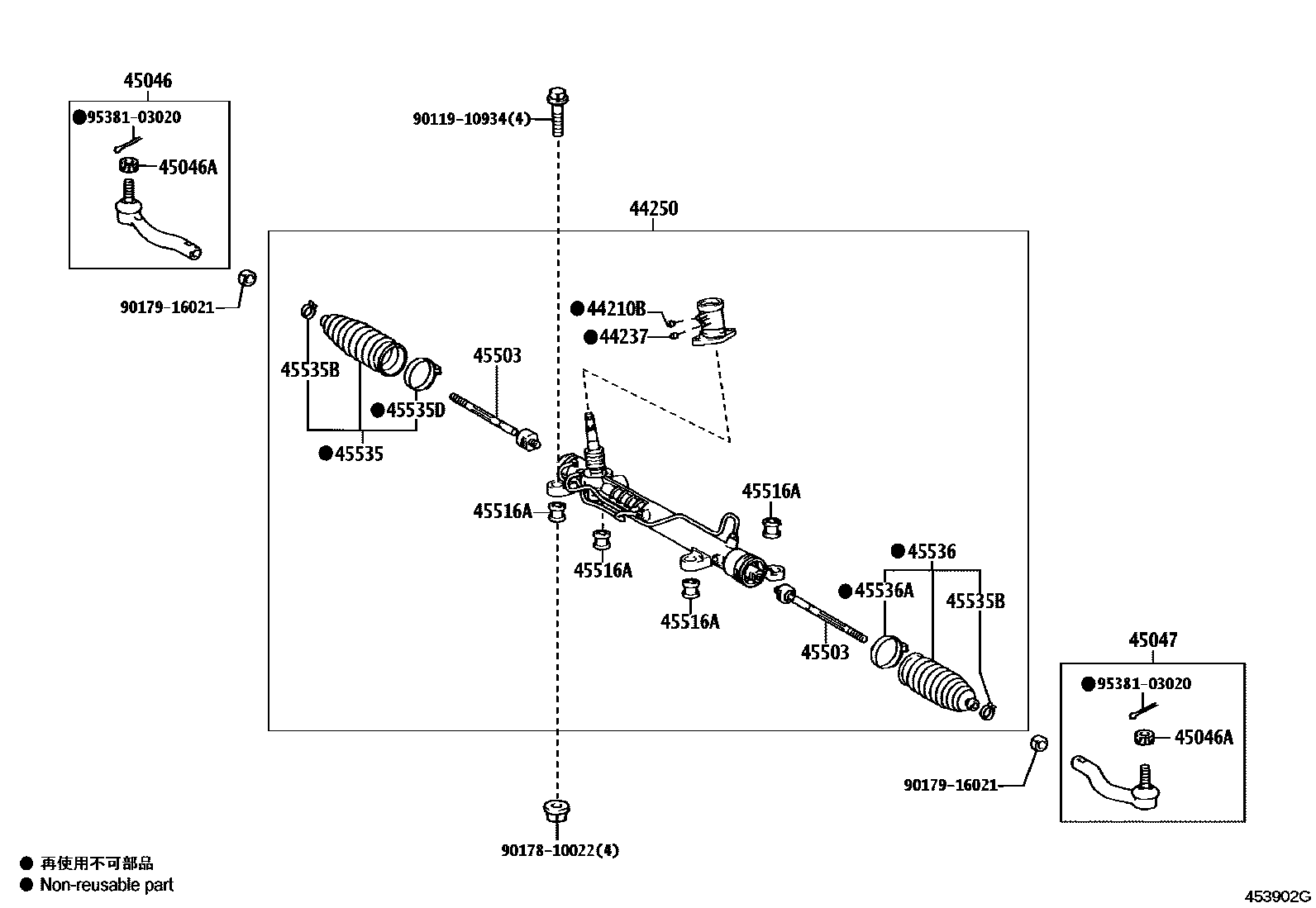

FRONT STEERING GEAR & LINK

0001 1 0002 1

44210BSEAT, UNION(FOR POWER STEERING CONTROL VALVE)

main90410-06005iAZT250200301-200405

44237SEAT, PRESSURE CONTROL VALVE ORIFICE

main44237-21010iAZT250200301-200405

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-05070iAZT250..RHD200301-200405

main44250-05071iAZT250..RHD200406-200604

main44250-05072iAZT250..RHD200604

main44250-05080iAZT250..LHD200301-200405

main44250-05081iAZT250..LHD200406-200604

main44250-05082iAZT250..LHD200604

45046END SUB-ASSY, TIE ROD, RH

main45046-29425iAZT250200301-200604

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAZT250200301-200604

45047END SUB-ASSY, TIE ROD, LH

main45046-29425iAZT250200301-200604

45503END SUB-ASSY, STEERING RACK

main45503-0F010×2iAZT250200301-200405

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-05030×4iAZT250200301-200405

main45516-05060×4iAZT250200604

45535BOOT, STEERING RACK, NO.1

main45535-09020iAZT250200301-200604

45535BCLIP(FOR STEERING RACK BOOT)

main90069-49001×2iAZT250200301-200604

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90069-48001iAZT250200301-200604

45536BOOT, STEERING RACK, NO.2

main45535-09020iAZT250200301-200604

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90069-48001iAZT250200301-200604

9011910934

main90119-10934

9017810022

main90178-10022

9017916021

main90179-16021

9538103020

main95381-03020

17 parts on this diagram · 2 diagrams in section
