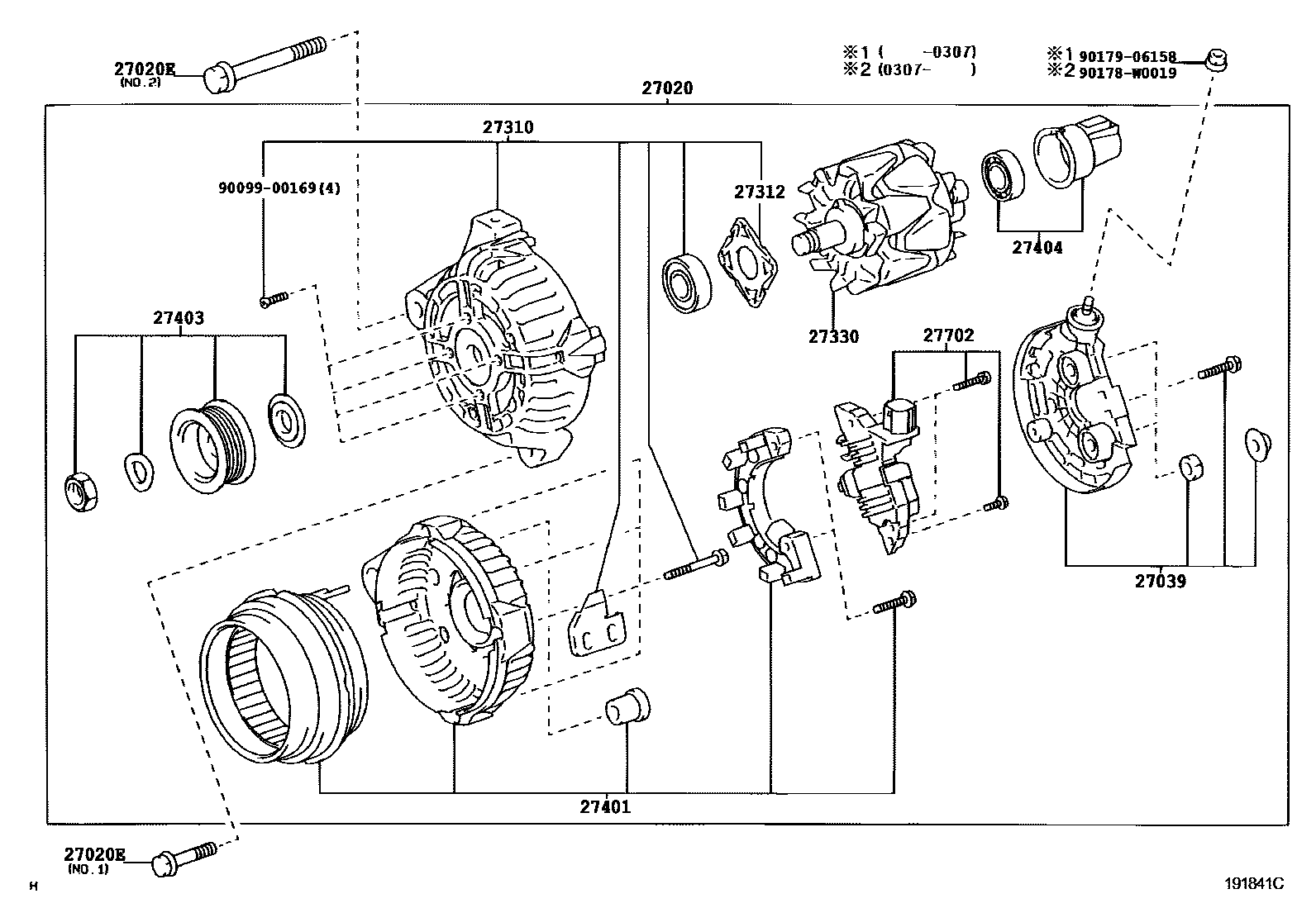

ALTERNATOR

0001 114V 100A 0002 114V 100A

27020ALTERNATOR ASSY

main27060-0H070i1AZFE..AZT250200301-200604

14V 100A

27020EBOLT(FOR ALTERNATOR)

main91511-J0840i1AZFE..AZT250200604-200607

NO.1

main91512-81085i1AZFE..AZT250200604

NO.2

main91551-80840i1AZFE..AZT250200608

NO.1

27039COVER, ALTERNATOR REAR END

main27039-0H060i1AZFE..AZT250200301-200604

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0H060i1AZFE..AZT250200301-200604

27312PLATE, RETAINER

main27312-72100i1AZFE..AZT250200301-200604

27330ROTOR ASSY, ALTERNATOR

main27330-0D110i1AZFE..AZT250200301-200604

27401STATOR SUB-ASSY ALTERNATOR W/RECTIFIER

main27401-0H030i1AZFE..AZT250200301-200604

27403PULLEY SET, ALTERNATOR

main27403-0H020i1AZFE..AZT250200301-200604

27404BEARING SET, ALTERNATOR

main27404-0D010i1AZFE..AZT250200301-200604

27702REGULATOR SUB-ASSY GENERATOR W/BRUSH

main27702-0D010i1AZFE..AZT250200301-200604

9009900169

main90099-00169

90178W0019

main90178-W0019

9017906158

main90179-06158
