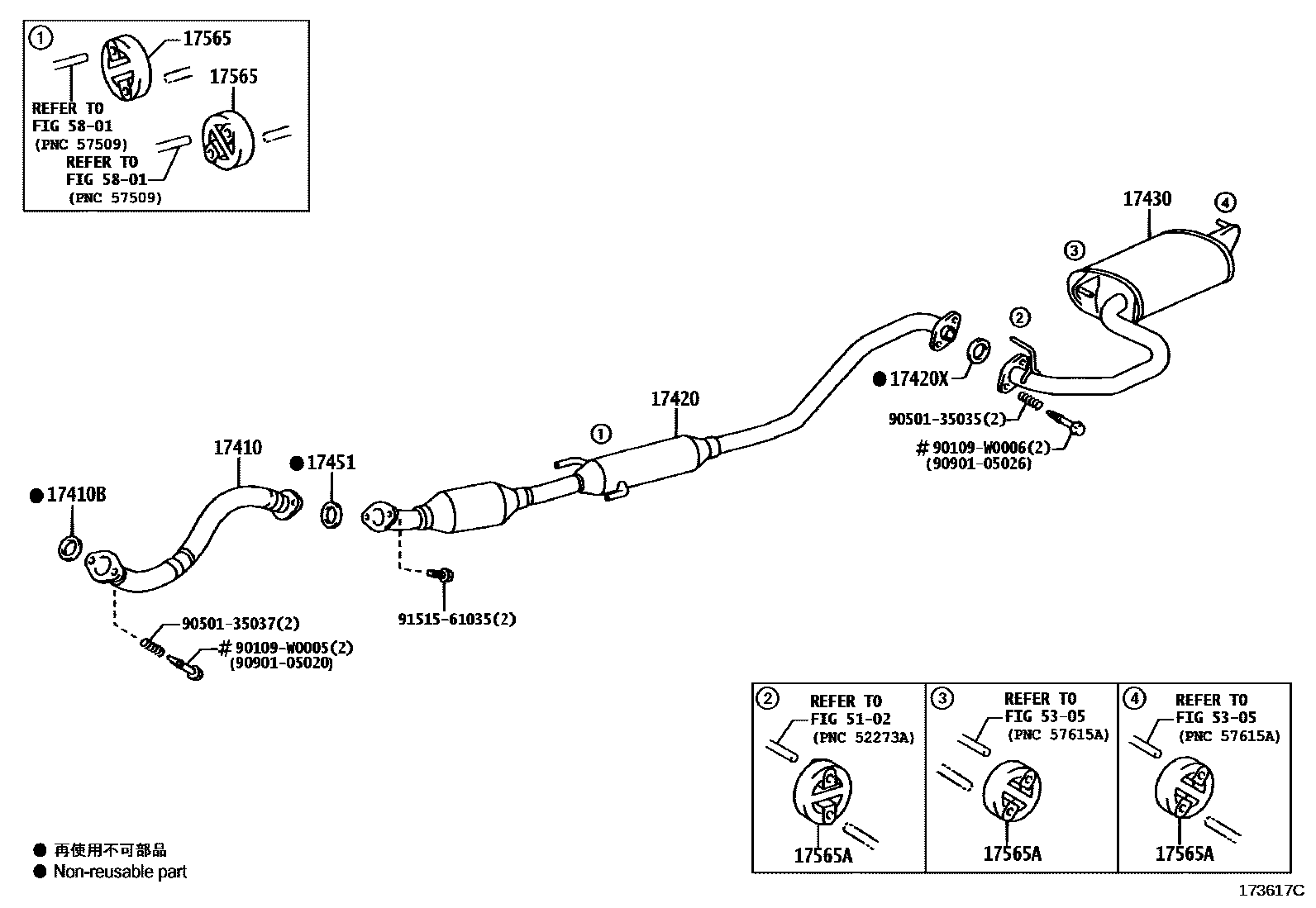

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0H080i1AZFE..AZT250200301-200604

17410BGASKET, EXHAUST PIPE

main17451-0H010i1AZFE..AZT250200301-200604

17420PIPE ASSY, EXHAUST, CENTER

main17420-0H080i1AZFE..AZT250200301-200604

17420XGASKET, EXHAUST PIPE, CENTER

main17451-0B010i1AZFE..AZT250200301-200604

17430PIPE ASSY, EXHAUST, TAIL

main17430-0H050i1AZFE..AZT250200301-200604

17451GASKET, EXHAUST PIPE

main90917-06078i1AZFE..AZT250200301-200604

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D060×2i1AZFE..AZT250200301-200604

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D030×3i1AZFE..AZT250200301-200604

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9151561035

main91515-61035

18 parts on this diagram · 1 diagram in section
