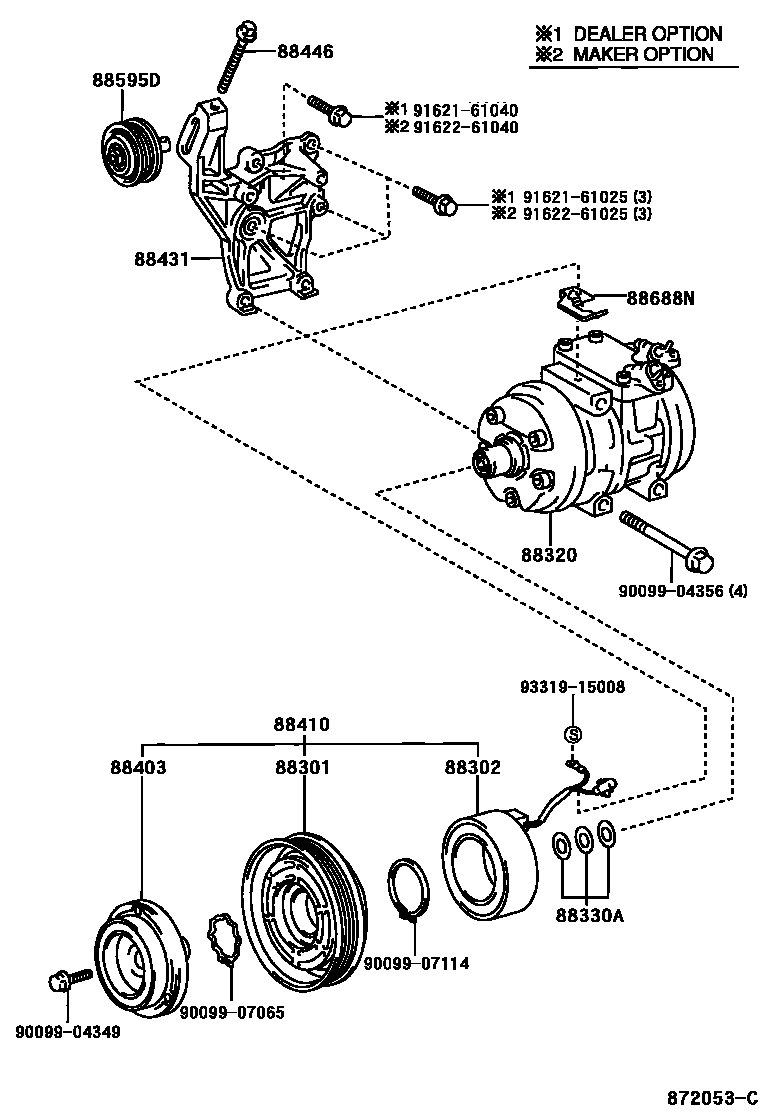

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iAT220199710-200007

main88412-2A050iST220199710

main88412-32060iCT220199710-200007

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iAT220,CT220,ST220199710

88320COMPRESSOR ASSY, COOLER

main88320-2B350iST220..RHD199710-200007

main88320-2B360iCT220199710-200007

sub88320-2BH90

main88320-2B400iAT220199710-200007

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAT220,CT220,ST220199710

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iAT220,CT220,ST220199710

88410CLUTCH ASSY, MAGNET

main88410-33090iCT220199710-200007

sub88410-44010

main88410-33100iST220199710

main88410-34040iAT220199710-200007

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-20390iAT220199710-200007

88446BOLT, IDLE PULLEY

main88446-12030iAT220199710-200007

88595DPULLEY ASSY, IDLE

main88440-20160iAT220199805-200007

DEALER OPTION

main88440-20170iAT220199805-200007

MAKER OPTION

88688NBRACKET, COOLER

main88688-2D760iAT220199710-200007

main88688-2D770iCT220199710-200007

main88688-33260iST220199710

9009904349

main90099-04349

9009904356

main90099-04356

9009907065

main90099-07065

9009907114

main90099-07114

9162161025

main91621-61025

9162161040

main91621-61040

9162261025

main91622-61025

9162261040

main91622-61040

9331915008

main93319-15008

19 parts on this diagram · 4 diagrams in section
