HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

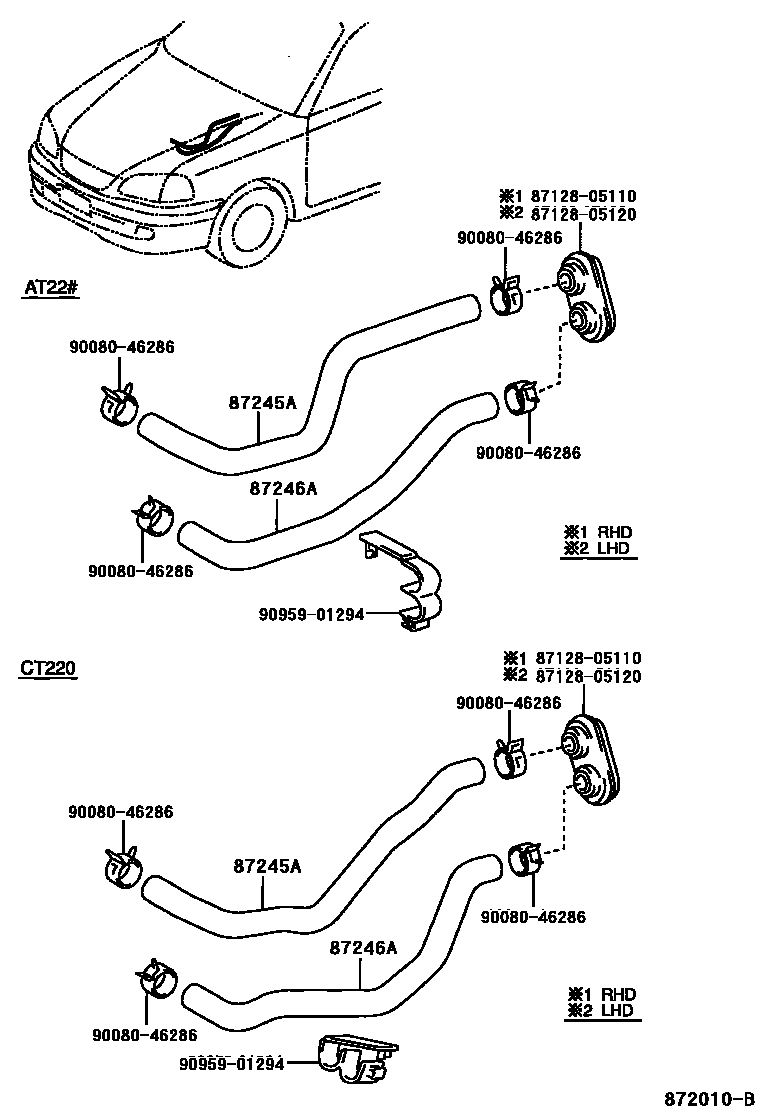

87245AHOSE, HEATER WATER, INLET A

main87245-05110iAT220..RHD199710-200007

main87245-05130iST220..RHD199710

main87245-05170iAT220..LHD199710-200007

main87245-05210iCT220199710-200007

main87245-05230iST220..LHD199710

87246AHOSE, HEATER WATER, OUTLET A

main87245-05120iAT220..RHD199710-200007

main87245-05140iST220..RHD199710

main87245-05180iAT220..LHD199710-200007

main87245-05220iCT220199710-200007

main87245-05240iST220..LHD199710

8712805110GROMMET, HEATER

main87128-05110

8712805120GROMMET, HEATER

main87128-05120

9008046286

main90080-46286

9095901294

main90959-01294

6 parts on this diagram · 2 diagrams in section
