WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR,FLOOR,ROOF 0010 1DOOR,FLOOR,ROOF 0011 1CLAMP & BRACKET 0012 1CLAMP & BRACKET 0013 1CABLE BOND

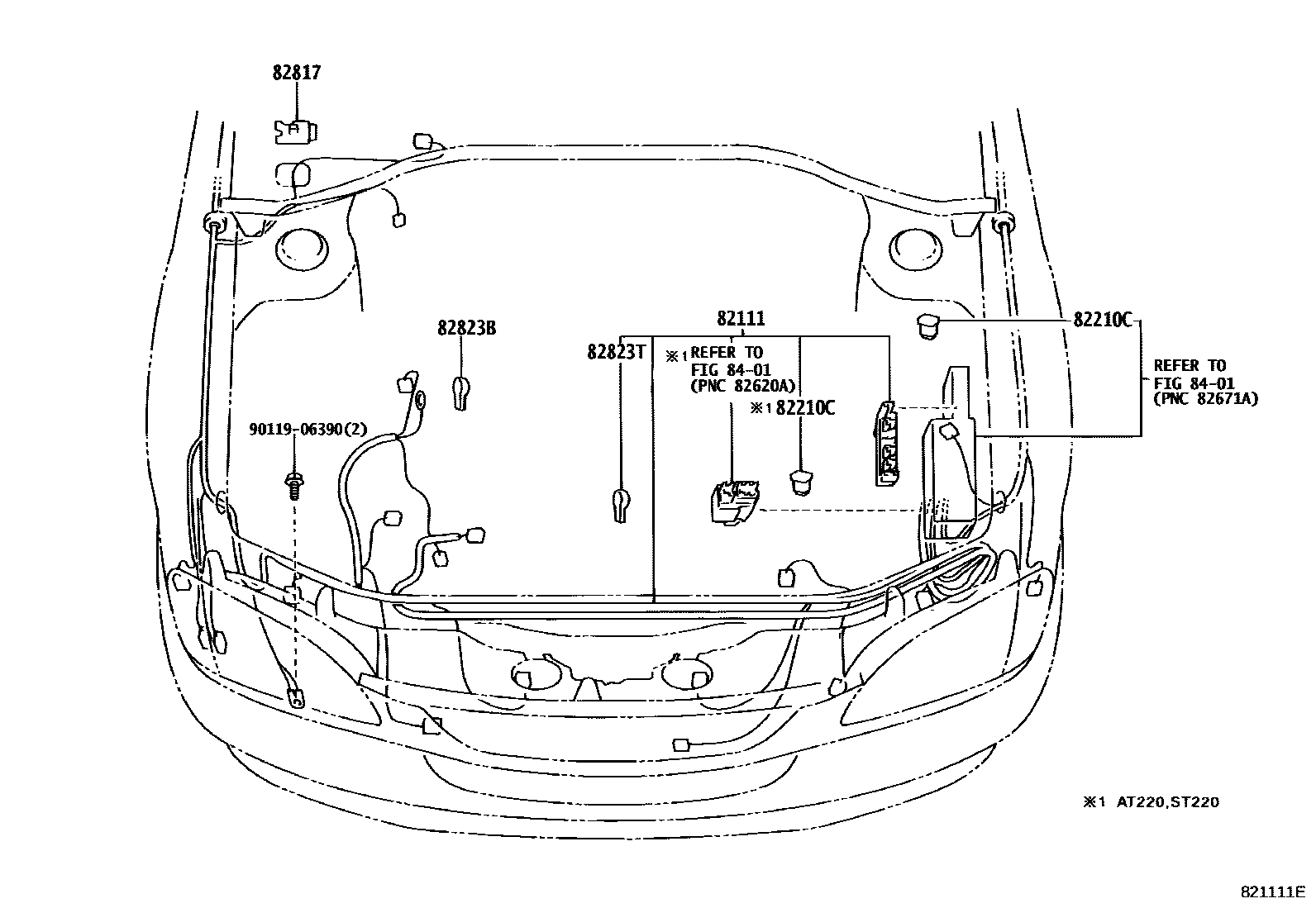

82111WIRE, ENGINE ROOM MAIN

main82111-05740iAT220..RHD199710-200007

main82111-05750iAT220..LHD199710-200007

main82111-05760iST220..RHD199710-200007

main82115-05010iST220..LHD199710-200007

main82115-05030iCT220199710-199901

main82115-05031iCT220199901-200007

main82115-05280iST220..RHD200007

main82115-05300iST220..LHD200007

82210CFUSIBLE LINK

main90982-08202iAT220,CT220,ST220199710-200007

60A,TERM.:MALE,YEL

main90982-08270iAT220,CT220,ST220199710-200007

100A,TERM.:MALE,BLUE

main90982-08283iAT220,CT220,ST220199710

30A,TERM.:FEMALE,PNK

main90982-08284iAT220,CT220,ST220199710

40A,TERM.:FEMALE,GRN

main90982-08285iAT220,CT220,ST220199710

50A,FEMALE,RED,32VDC

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2D090iAT220,ST220..RHD199710

82823BCAP, TERMINAL, NO.3

main82823-22050iST220199710

82823TCAP, ALTERNATOR TERMINAL

main82823-20070iAT220,ST220199710-200007

main82823-22050iCT220199710-200007

8401

9011906390

main90119-06390

7 parts on this diagram · 13 diagrams in section
