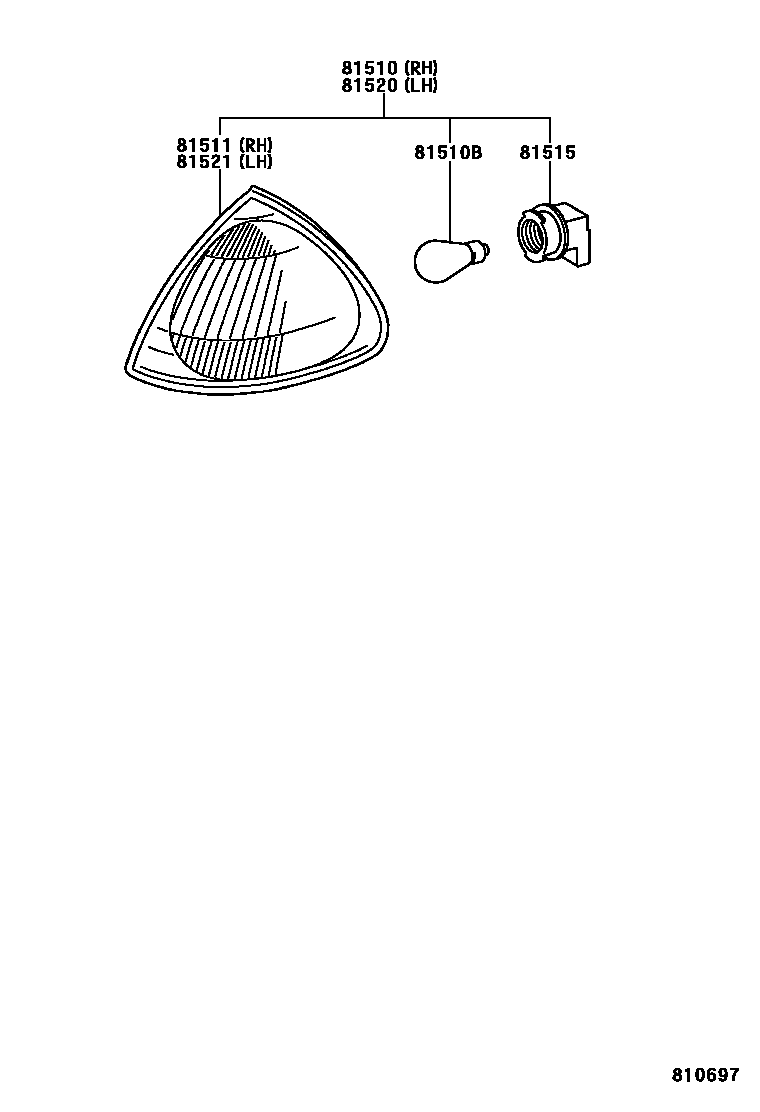

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-05020iAT220,CT220,ST220199710-200007

main81510-05030iST220200007

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90080-81035×2iST220200007

12V 21W

main90080-81046×2iAT220,CT220,ST220199710-200007

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-05020iAT220,CT220,ST220199710-200007

main81511-05030iST220200007

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-05020×2iAT220,CT220,ST220199710-200007

main81576-05050×2iST220200007-200301

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-05020iAT220,CT220,ST220199710-200007

main81520-05030iST220200007

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-05020iAT220,CT220,ST220199710-200007

main81521-05030iST220200007

6 parts on this diagram · 2 diagrams in section
