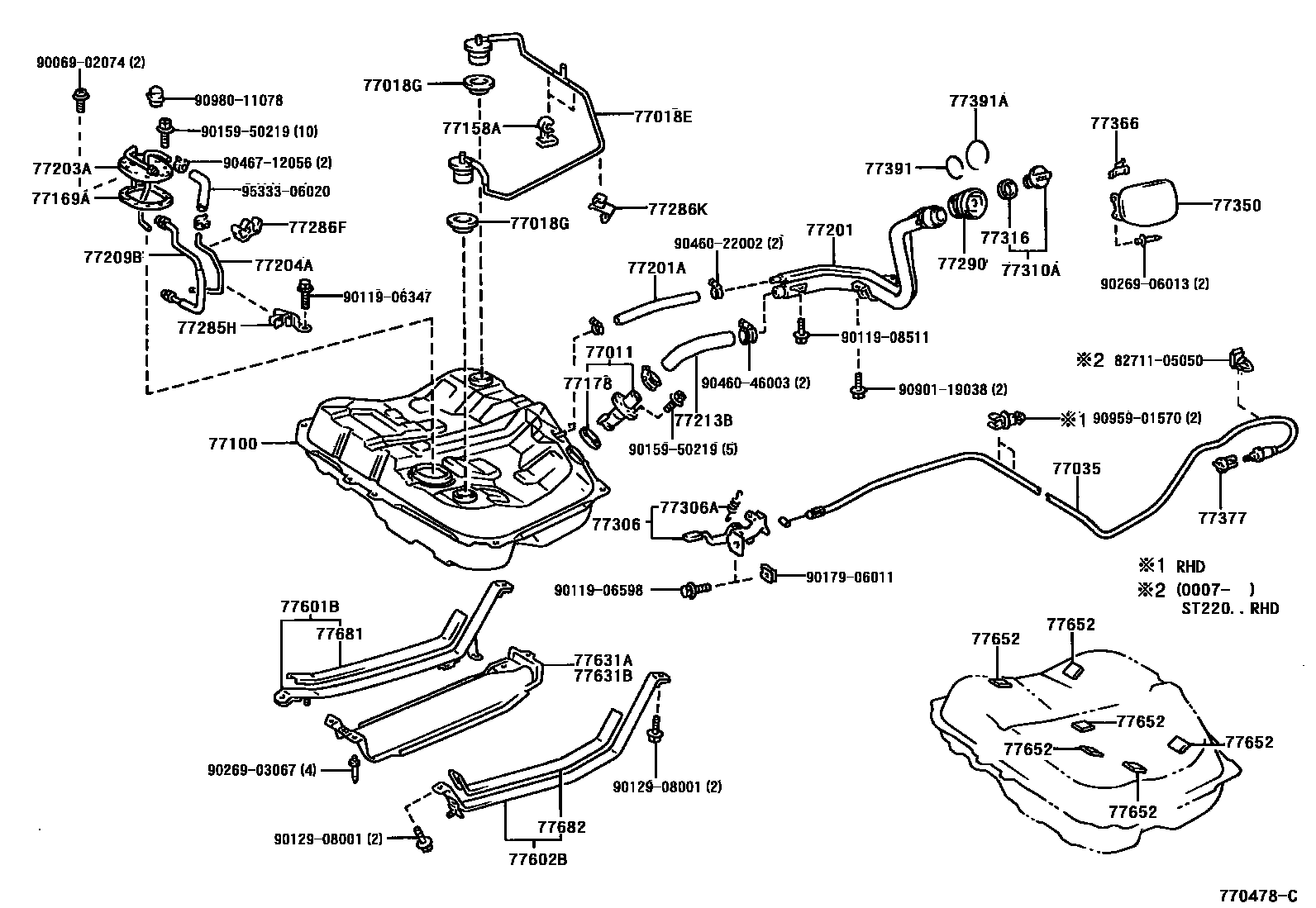

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018GGASKET, FUEL TANK EVAP/VENT TUBE
77100TANK ASSY, FUEL
77158ASUPPORT, TANK SUCTION TUBE
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=220
77203ATUBE SUB-ASSY, FUEL SUCTION
77204ATUBE, FUEL TANK RETURN
77213BHOSE, FUEL TANK TO FILLER PIPE
77286FCLAMP, FUEL TUBE, NO.2
77286KCLAMP, FUEL TUBE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77631APROTECTOR, FUEL TANK, LOWER CENTER
sub77631-20090
77631BPROTECTOR, FUEL TANK, LOWER CENTER
77652CUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
8271105050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-05050
9006902074
main90069-02074
9011906347
main90119-06347
9011906598
main90119-06598
9011908511
main90119-08511
9012908001
main90129-08001
9015950219
main90159-50219
9017906011
main90179-06011
9026903067
main90269-03067
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9046712056
main90467-12056
9090119038
main90901-19038
9095901570
main90959-01570
9098011078
main90980-11078
9533306020
main95333-06020
51 parts on this diagram · 4 diagrams in section
