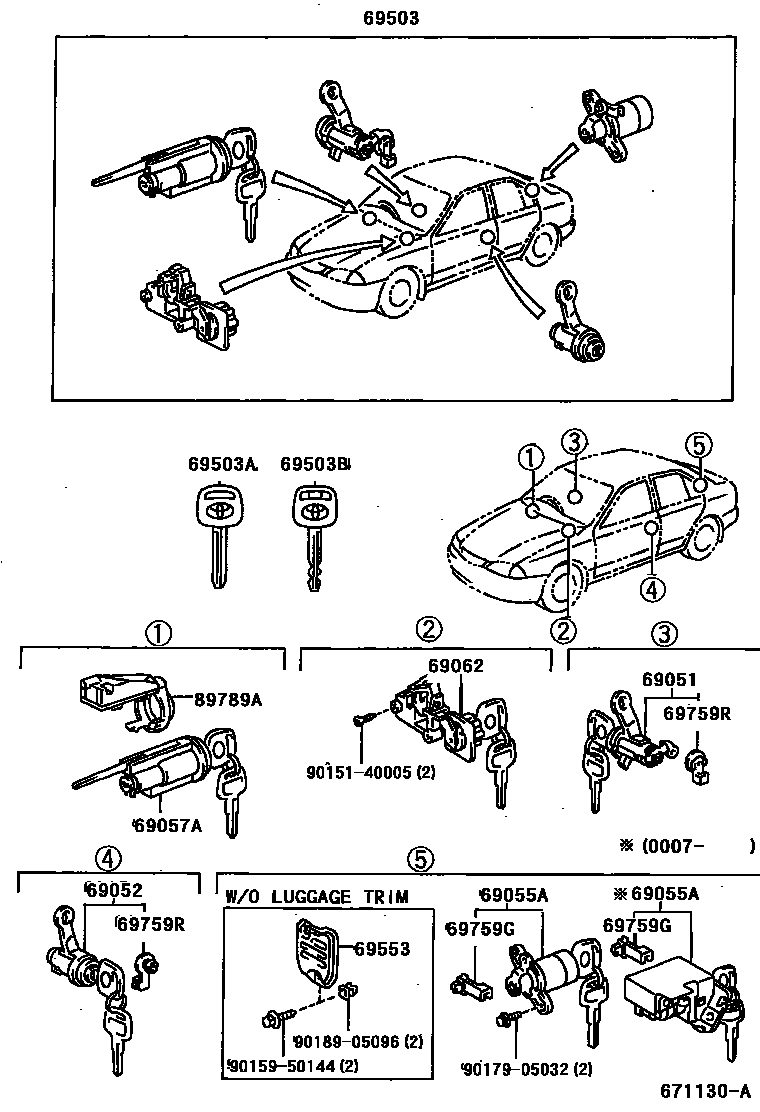

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-05030iAT220,CT220,ST220199710

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-05030iAT220,CT220,ST220199710

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-05060iAT220,CT220,ST220199710-200007

main69055-05070iST220200007

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-05050iAT220,CT220,ST220199710

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-05010iAT220,CT220,ST220199710

69503CYLINDER SET, LOCK

main69005-05100iAT220,CT220,ST220199710-200007

main69005-05120iST220200007

69503AKEY, BLANK

main90080-69007iAT220,CT220,ST220199710-200007

MASTER KEY

main90080-69008iAT220,CT220,ST220199710-200007

SUB KEY

69503BKEY, CUT

main69515-05010iAT220,CT220,ST220199710-200007

MASTER KEY(VALEO)

main69516-05010iAT220,CT220,ST220199710

SUB KEY(VALEO)

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-05010iAT220,CT220,ST220199710-199810

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080×2iAT220,CT220,ST220199710

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAT220,CT220,ST220199710

RH

main69759-12090iAT220,CT220,ST220199710

LH

89789ACASE, TRANSPONDER KEY COMPUTER

main89789-05010iAT220,CT220,ST220199710

9015140005

main90151-40005

9015950144

main90159-50144

9017905032

main90179-05032

9018905096

main90189-05096

16 parts on this diagram · 1 diagram in section
