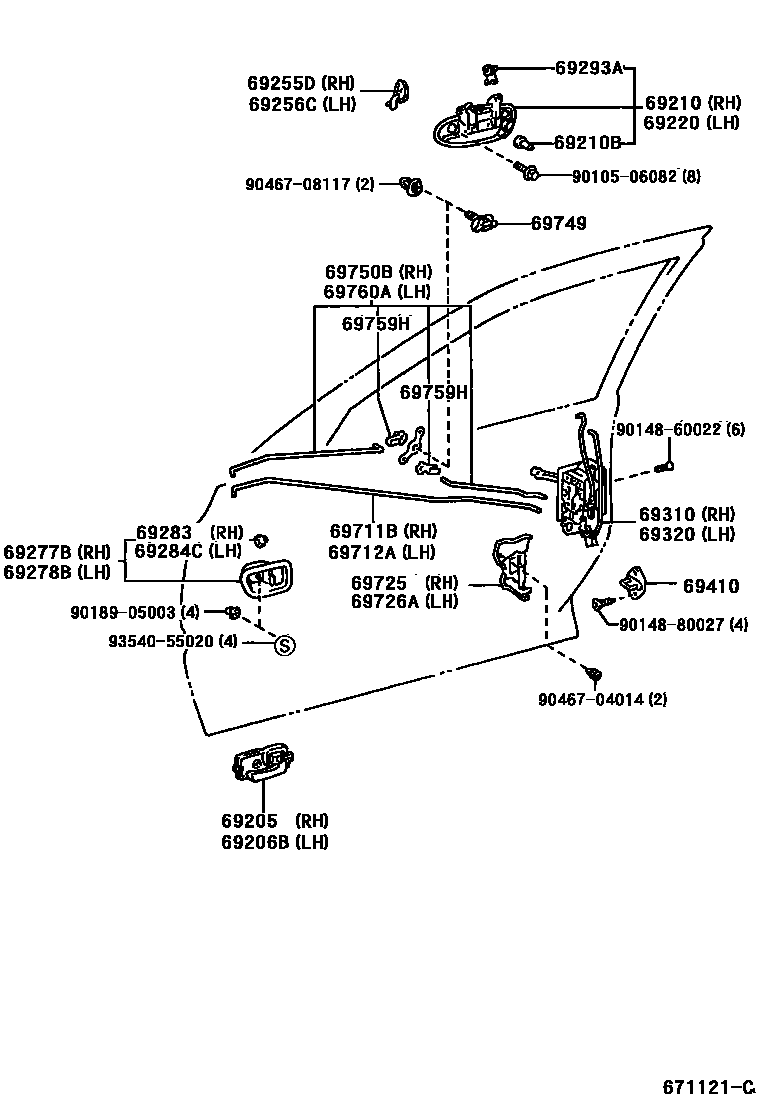

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main69205-05020-G0iAT220,CT220,ST220199710-200007

SLATE GREEN,TRIM6#

main69205-05030-B0iST220200007

DK.GRAY,TRIM1#

main69205-05030-G0iST220200007

SLATE GREEN,TRIM6#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main69206-05020-G0iAT220,CT220,ST220199710-200007

SLATE GREEN,TRIM6#

main69206-05030-B0iST220200007

DK.GRAY,TRIM1#

main69206-05030-G0iST220200007

SLATE GREEN,TRIM6#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-05040iAT220,CT220,ST220199710-199903

sub69210-05041

main69210-05041iAT220,CT220,ST220199903

main69210-05050-A0iAT220,CT220,ST220199710-199903

SUPER WHITE 2,040

sub69210-05051

main69210-05050-B0iAT220,CT220,ST220199710-199903

SILVER ME,199

sub69210-05051

main69210-05050-C0iAT220,CT220,ST220199710-199903

BLACK ME,205

sub69210-05051

main69210-05050-D0iAT220,CT220,ST220199710-199903

SU.RED 3,3J6

sub69210-05051

main69210-05050-D1iAT220,CT220,ST220199710-199903

RED M.M.,3M3

sub69210-05051

main69210-05050-G0iAT220,CT220,ST220199710-199903

DK.GREEN M.M.,6P3

sub69210-05051

main69210-05050-G1iAT220,CT220,ST220199710-199903

LT.GREEN ME.,6Q2

sub69210-05051

main69210-05050-H0iAT220,CT220,ST220199710-199901

DP.TURQUOISE MC.,758

sub69210-05051

main69210-05050-J0iAT220,CT220,ST220199710-199901

STRONG BLUE M,8B6

sub69210-05051

main69210-05050-J1iAT220,CT220,ST220199710-199903

DK.BLUE,8M4

sub69210-05051

main69210-05050-J2iAT220,CT220,ST220199901-199903

DK.BLUE ME.,8N3

sub69210-05051

main69210-05050-K0iAT220,CT220,ST220199901-199903

DK.PURPLE M.M.,945

sub69210-05051

main69210-05051-A0iAT220,CT220,ST220199903

SUPER WHITE 2,040

main69210-05051-B0iAT220,CT220,ST220199903

SILVER ME,199

main69210-05051-B1iST220200107

GRAY M.M.,1E5

main69210-05051-C0iAT220,CT220,ST220199903-200107

BLACK ME,205

main69210-05051-C1iST220200107

BLACK MC.,209

main69210-05051-D0iAT220,CT220,ST220199903

SU.RED 3,3J6

main69210-05051-D1iAT220,CT220,ST220199903-200007

RED M.M.,3M3

main69210-05051-D2iST220200007

RED M.M.,3N8

main69210-05051-F0iST220200007

CHAMPAGNE ME.,583

main69210-05051-G0iAT220,CT220,ST220199903-200007

DK.GREEN M.M.,6P3

main69210-05051-G1iAT220,CT220,ST220199903-200007

LT.GREEN ME.,6Q2

main69210-05051-G2iST220200007

DK.GREEN M.M.,6S3

main69210-05051-G3iST220200007

GREEN M.M.,6S4

main69210-05051-J1iAT220,CT220,ST220199903-200107

DK.BLUE,8M4

main69210-05051-J2iAT220,CT220,ST220199903-200007

DK.BLUE ME.,8N3

main69210-05051-J3iAT220,CT220,ST220200001-200107

DK.BLUE M.M.,8L3

main69210-05051-J4iST220200107

DK.BLUE M.M.,8P4

main69210-05051-J5iST220200107

DK.BLUE,8Q4

main69210-05051-K0iAT220,CT220,ST220199903-200007

DK.PURPLE M.M.,945

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90080-54017iAT220,CT220,ST220199710

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-05040iAT220,CT220,ST220199710-199903

sub69220-05041

main69220-05041iAT220,CT220,ST220199903

main69220-05050-A0iAT220,CT220,ST220199710-199903

SUPER WHITE 2,040

sub69220-05051

main69220-05050-B0iAT220,CT220,ST220199710-199903

SILVER ME,199

sub69220-05051

main69220-05050-C0iAT220,CT220,ST220199710-199903

BLACK ME,205

sub69220-05051

main69220-05050-D0iAT220,CT220,ST220199710-199903

SU.RED 3,3J6

sub69220-05051

main69220-05050-D1iAT220,CT220,ST220199710-199903

RED M.M.,3M3

sub69220-05051

main69220-05050-G0iAT220,CT220,ST220199710-199903

DK.GREEN M.M.,6P3

sub69220-05051

main69220-05050-G1iAT220,CT220,ST220199710-199903

LT.GREEN ME.,6Q2

sub69220-05051

main69220-05050-H0iAT220,CT220,ST220199710-199901

DP.TURQUOISE MC.,758

sub69220-05051

main69220-05050-J0iAT220,CT220,ST220199710-199901

STRONG BLUE M,8B6

sub69220-05051

main69220-05050-J1iAT220,CT220,ST220199710-199903

DK.BLUE,8M4

sub69220-05051

main69220-05050-J2iAT220,CT220,ST220199901-199903

DK.BLUE ME.,8N3

sub69220-05051

main69220-05050-K0iAT220,CT220,ST220199901-199903

DK.PURPLE M.M.,945

sub69220-05051

main69220-05051-A0iAT220,CT220,ST220199903

SUPER WHITE 2,040

main69220-05051-B0iAT220,CT220,ST220199903

SILVER ME,199

main69220-05051-B1iST220200107

GRAY M.M.,1E5

main69220-05051-C0iAT220,CT220,ST220199903-200107

BLACK ME,205

main69220-05051-C1iST220200107

BLACK MC.,209

main69220-05051-D0iAT220,CT220,ST220199903

SU.RED 3,3J6

main69220-05051-D1iAT220,CT220,ST220199903-200007

RED M.M.,3M3

main69220-05051-D2iST220200007

RED M.M.,3N8

main69220-05051-F0iST220200007

CHAMPAGNE ME.,583

main69220-05051-G0iAT220,CT220,ST220199903-200007

DK.GREEN M.M.,6P3

main69220-05051-G1iAT220,CT220,ST220199903-200007

LT.GREEN ME.,6Q2

main69220-05051-G2iST220200007

DK.GREEN M.M.,6S3

main69220-05051-G3iST220200007

GREEN M.M.,6S4

main69220-05051-J1iAT220,CT220,ST220199903-200107

DK.BLUE,8M4

main69220-05051-J2iAT220,CT220,ST220199903-200007

DK.BLUE ME.,8N3

main69220-05051-J3iAT220,CT220,ST220200001-200107

DK.BLUE M.M.,8L3

main69220-05051-J4iST220200107

DK.BLUE M.M.,8P4

main69220-05051-J5iST220200107

DK.BLUE,8Q4

main69220-05051-K0iAT220,CT220,ST220199903-200007

DK.PURPLE M.M.,945

69255DPROTECTOR, DOOR OUTSIDE HANDLE

main69255-05010iAT220,CT220,ST220199710

69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH

main69256-05010iAT220,CT220,ST220199710

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-05010-B0iAT220,CT220,ST220199710-200001

MD.GRAY,TRIM1#

sub69277-05011

main69277-05010-G0iAT220,CT220,ST220199710-200001

SLATE GREEN,TRIM6#

sub69277-05011

main69277-05011-B0iAT220,CT220,ST220200001-200007

MD.GRAY,TRIM1#

main69277-05011-B1iST220200007

DK.GRAY,TRIM1#

main69277-05011-G0iAT220,CT220,ST220200001

SLATE GREEN,TRIM6#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-05010-B0iAT220,CT220,ST220199710-200001

MD.GRAY,TRIM1#

sub69278-05011

main69278-05010-G0iAT220,CT220,ST220199710-200001

SLATE GREEN,TRIM6#

sub69278-05011

main69278-05011-B0iAT220,CT220,ST220200001-200007

MD.GRAY,TRIM1#

main69278-05011-B1iST220200007

DK.GRAY,TRIM1#

main69278-05011-G0iAT220,CT220,ST220200001

SLATE GREEN,TRIM6#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-05010-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main69283-05010-B1iST220200007-200301

DK.GRAY,TRIM1#

main69283-05010-G0iAT220,CT220,ST220199710-200301

SLATE GREEN,TRIM6#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-05010-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main69284-05010-B1iST220200007

DK.GRAY,TRIM1#

main69284-05010-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAT220,CT220,ST220199710

WHITE

main69293-12040iAT220,CT220,ST220199710

YELLOW

69310LOCK ASSY, FRONT DOOR, RH

main69030-05060iAT220,ST220..RHD199710-199804

sub69030-05061

main69030-05061iAT220,ST220..RHD199804

main69030-05080iAT220,CT220,ST220..LHD199710-199804

sub69030-05081

main69030-05081iAT220,CT220,ST220..LHD199804

69320LOCK ASSY, FRONT DOOR, LH

main69040-05080iAT220,CT220,ST220..LHD199710-199804

sub69040-05081

main69040-05081iAT220,CT220,ST220..LHD199804

main69040-05090iAT220,ST220..RHD199710-199804

sub69040-05091

main69040-05091iAT220,ST220..RHD199804

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iAT220,CT220,ST220199710

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-05010iAT220,CT220,ST220199710

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-05010iAT220,CT220,ST220199710

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-20030iAT220,CT220,ST220199710

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-20030iAT220,CT220,ST220199710

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32030iAT220,CT220,ST220199710

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-05010iAT220,CT220,ST220199710

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24030iAT220,CT220,ST220199710

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-05010iAT220,CT220,ST220199710

9010506082

main90105-06082

9014860022

main90148-60022

9014880027

main90148-80027

9018905003

main90189-05003

9046704014

main90467-04014

9046708117

main90467-08117

9354055020

main93540-55020

30 parts on this diagram · 1 diagram in section
