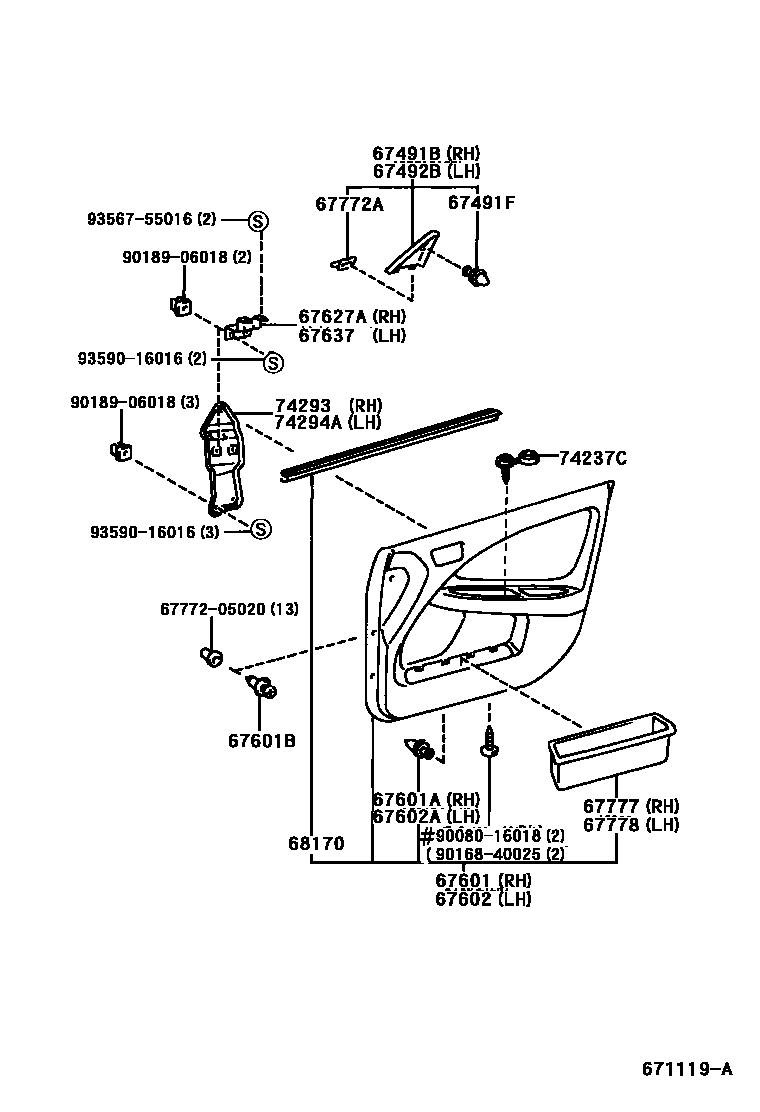

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH

main67491-05040iAT220,CT220,ST220199710

67491FCLIP(FOR DOOR TRIM)

main67771-30070×2iAT220,CT220,ST220199710

67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH

main67492-05040iAT220,CT220,ST220199710

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-05290-B0iAT220,CT220,ST220199710-199810

MEDIUM GRAY,TRIM1#

main67610-05290-G0iAT220,CT220,ST220199710-199810

GREEN,TRIM6#

main67610-05340-B0iAT220,CT220,ST220199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main67610-05350-B1iAT220,CT220,ST220199810-200007

MEDIUM GRAY,TRIM1#

main67610-05350-G0iAT220,CT220,ST220199810-200007

LT.GREEN,TRIM6#

main67610-05360-B0iST220200007-200203

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67610-05360-G0iST220200007-200203

SLATE GREEN,TRIM6#

main67610-05361-B2iST220200203-200301

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67610-05361-G1iST220200203-200301

SLATE GREEN,TRIM6#

main67610-05380-B0iST220200107-200301

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-20110×2iAT220,CT220,ST220199710

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90080-46230-B0×13iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main90080-46230-B1×13iST220200007

DK.GRAY,TRIM1#

main90080-46230-G0×13iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-05290-B0iAT220,CT220,ST220199710-199810

MEDIUM GRAY,TRIM1#

main67620-05290-G0iAT220,CT220,ST220199710-199810

GREEN,TRIM6#

main67620-05340-B0iAT220,CT220,ST220199901-200007

LINEA LUNA,MEDIUM GRAY,TRIM1#

main67620-05350-B1iAT220,CT220,ST220199810-200007

MEDIUM GRAY,TRIM1#

main67620-05350-G0iAT220,CT220,ST220199810-200007

LT.GREEN,TRIM6#

main67620-05360-B0iST220200007-200203

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67620-05360-G0iST220200007-200203

SLATE GREEN,TRIM6#

main67620-05361-B2iST220200203-200301

DOOR TRIM=TYPE B-*104,DARK GRAY,TRIM1#

main67620-05361-G1iST220200203-200301

SLATE GREEN,TRIM6#

main67620-05380-B0iST220200107-200301

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

67602ARETAINER, DOOR TRIM, LH

main67771-20110×2iAT220,CT220,ST220199710

67627ABRACKET, DOOR TRIM, NO.3

main67627-05010iAT220,CT220,ST220199710-200007

main67627-05011iST220200007

67637PLATE, FRONT DOOR TRIM

main67637-05010iAT220,CT220,ST220199710-200007

main67637-05011iST220200007

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-21020×2iAT220,CT220,ST220199710-200007

67777POCKET, FRONT DOOR TRIM, RH

main67777-05030-B0iAT220,CT220,ST220199710-200007

DOOR TRIM=TYPE E-*104,MD.GRAY,TRIM1#

main67777-05030-B1iST220200007

DK.GRAY,TRIM1#

main67777-05030-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

67778POCKET, FRONT DOOR TRIM, LH

main67778-05030-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67778-05030-B1iST220200007

DK.GRAY,TRIM1#

main67778-05030-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-20100iAT220,CT220,ST220199710

(J),RH

main68172-20090iAT220,CT220,ST220199710

(J),LH

74237CCAP, FRONT DOOR ARMREST BASE

main74237-20050-B0×4iAT220,CT220,ST220199710-199803

MD.GRAY,TRIM1#

main74237-20050-G0×4iAT220,CT220,ST220199710-199803

SLATE GREEN,TRIM6#

main74237-20060-B0×4iAT220,CT220,ST220199803-200007

MD.GRAY,TRIM1#

main74237-20060-B1×4iST220200007

DK.GRAY,TRIM1#

main74237-20060-G0×4iAT220,CT220,ST220199803

SLATE GREEN,TRIM6#

74293PLATE, FRONT DOOR ARMREST, NO.1

main74293-05030iAT220,CT220,ST220199710-200007

main74293-05031iST220200007

74294APLATE, FRONT DOOR ARMREST, NO.2

main74294-05010iAT220,CT220,ST220199710-200007

main74294-05011iST220200007

6777205020WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-05020

9008016018

main90080-16018

9016840025

main90168-40025

9018906018

main90189-06018

9356755016

main93567-55016

9359016016

main93590-16016

23 parts on this diagram · 3 diagrams in section
