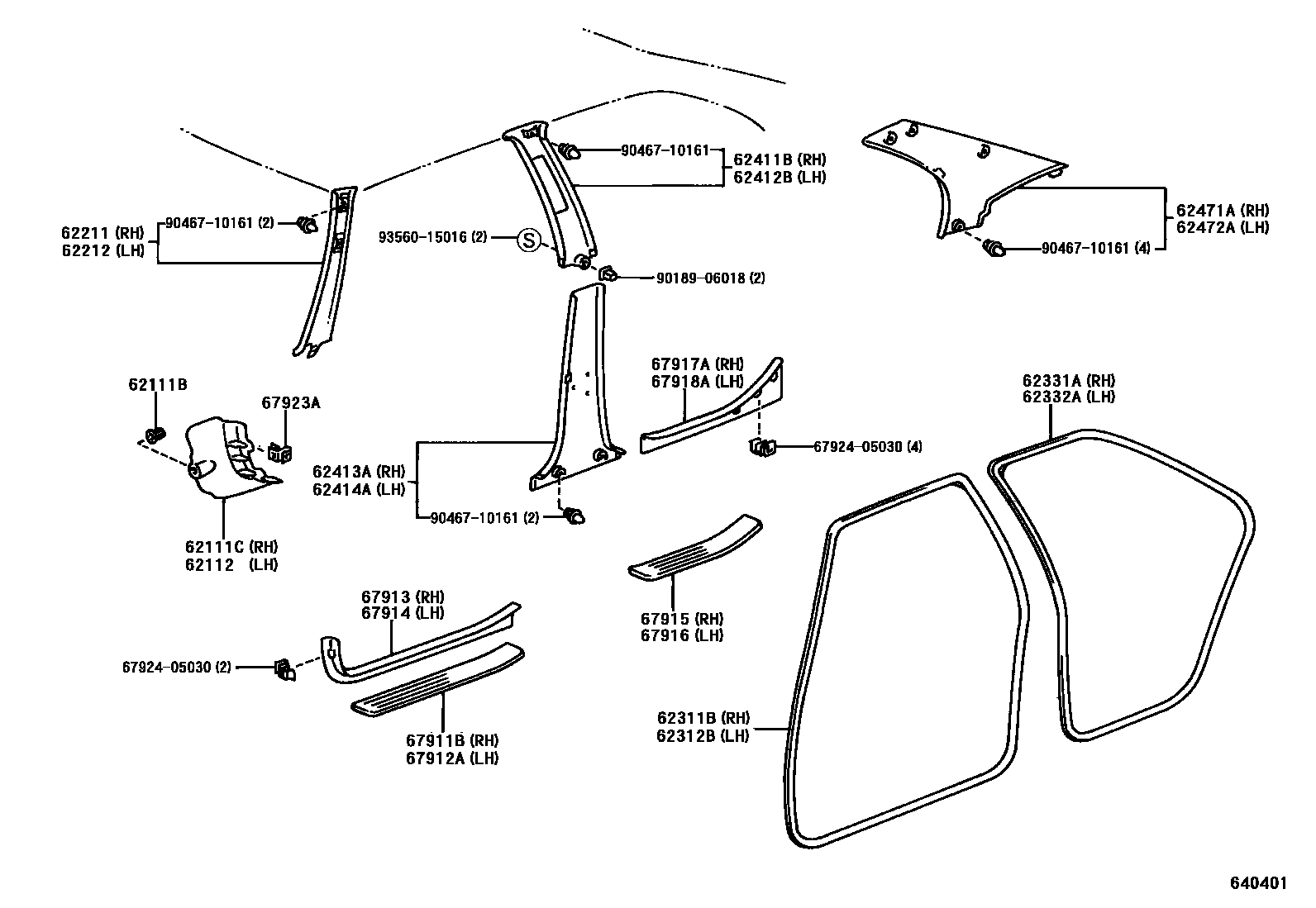

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06094×2iAT220,CT220,ST220199710-199801

main90467-06191×2iAT220,CT220,ST220199904

main90467-10197×2iAT220,CT220,ST220199801-199904

62111CBOARD, COWL SIDE TRIM, RH

main62111-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62111-05020-B1iST220200007

DK.GRAY,TRIM1#

main62111-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

62112BOARD, COWL SIDE TRIM, LH

main62112-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62112-05020-B1iST220200007

DK.GRAY,TRIM1#

main62112-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

62211GARNISH, FRONT PILLAR, RH

main62210-05010-B0iAT220,CT220,ST220199710

LT.GRAY,TRIM1#

main62210-05010-G0iAT220,CT220,ST220199710

LT.GREEN,TRIM6#

62212GARNISH, FRONT PILLAR, LH

main62220-05010-B0iAT220,CT220,ST220199710

LT.GRAY,TRIM1#

main62220-05010-G0iAT220,CT220,ST220199710

LT.GREEN,TRIM6#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-05020-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-05020-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-05040-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-05040-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-05010-B0iAT220,CT220,ST220199710

LT.GRAY,TRIM1#

main62410-05010-G0iAT220,CT220,ST220199710

LT.GREEN,TRIM6#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-05010-B0iAT220,CT220,ST220199710

LT.GRAY,TRIM1#

main62420-05010-G0iAT220,CT220,ST220199710

LT.GREEN,TRIM6#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62413-05020-B1iST220200007

DK.GRAY,TRIM1#

main62413-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main62414-05020-B1iST220200007

DK.GRAY,TRIM1#

main62414-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-05030-B0iAT220,CT220,ST220199710

LT.GRAY,TRIM1#

main62471-05030-G0iAT220,CT220,ST220199710

LT.GREEN,TRIM6#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-05030-B0iAT220,CT220,ST220199710

LT.GRAY,TRIM1#

main62472-05030-G0iAT220,CT220,ST220199710

LT.GREEN,TRIM6#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-05020-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

main67911-20060-C0iST220200107

W(LOGO ; AVENSIS),BLACK,TRIM1#,6#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-05020-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

main67912-20060-C0iST220200107

W(LOGO ; AVENSIS),BLACK,TRIM1#,6#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67913-05020-B1iST220200007

DK.GRAY,TRIM1#

main67913-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67914-05020-B1iST220200007

DK.GRAY,TRIM1#

main67914-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-05020-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

main67915-20050-C0iST220200107

W(FRONT SCUFF PLATE LOGO ; AVENSIS),BLACK,TRIM1#,6#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-05020-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

main67916-20050-C0iST220200107

W(FRONT SCUFF PLATE LOGO ; AVENSIS),BLACK,TRIM1#,6#

67917APLATE, REAR DOOR SCUFF, RH

main67917-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67917-05020-B1iST220200007

DK.GRAY,TRIM1#

main67917-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

67918APLATE, REAR DOOR SCUFF, LH

main67918-05020-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main67918-05020-B1iST220200007

DK.GRAY,TRIM1#

main67918-05020-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-05020×4iAT220,CT220,ST220199710

6792405030CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-05030

9018906018

main90189-06018

9046710161

main90467-10161

9356015016

main93560-15016

28 parts on this diagram · 1 diagram in section
