SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
55714CPANEL, COWL TOP SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
6104ROOF PANEL & BACK WINDOW GLASS
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61211BRAIL, ROOF SIDE, OUTER REAR RH
61212RAIL, ROOF SIDE, OUTER LH
61212BRAIL, ROOF SIDE, OUTER REAR LH
61231RAIL, ROOF SIDE, INNER RH
W(MOON ROOF)
W(MOON ROOF)
W(MOON ROOF)
61232RAIL, ROOF SIDE, INNER LH
W(MOON ROOF)
W(MOON ROOF)
W(MOON ROOF)
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61325AREINFORCEMENT, CENTER BODY PILLAR, CENTER RH
61326REINFORCEMENT, CENTER BODY PILLER, CENTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61377BRACKET, REAR DOOR CHECK ARM, RH
61378ABRACKET, REAR DOOR CHECK ARM, LH
61387EEXTENSION, CENTER BODY PILLAR, LOWER RH
61388BEXTENSION, CENTER BODY PILLAR, LOWER LH
61389BEXTENSION, CENTER BODY PILLAR, LOWER REAR RH
61399BEXTENSION, CENTER BODY PILLAR, LOWER REAR LH
61415BEXTENSION, ROCKER, OUTER RH
61416BEXTENSION, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61431PANEL, ROCKER, OUTER REAR RH
61432PANEL, ROCKER, OUTER REAR LH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61434AREINFORCEMENT, ROCKER PANEL, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(ABS)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(ABS)
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61824PLATE, NOISE CONTROL, NO.1
61838BPLATE, NOISE CONTROL, NO.5
62151BPAD, COWL SIDE SILENCER
NO.1
NO.2
62556EPAD, PILLAR, NO.6
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65632BPLATE, REAR WHELL HOUSE, FRONT LH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
66243APROTECTOR, REAR BODY, NO.1
9015960364
main90159-60364
9015960525
main90159-60525
9018906006
main90189-06006
9018906104
main90189-06104
9018906177
main90189-06177
9033320001
main90333-20001
9046707164
main90467-07164
9095001060
main90950-01060
9095001801
main90950-01801
9095001841
main90950-01841
9095001864
main90950-01864
9095001866
main90950-01866
9095001872
main90950-01872
9095001929
main90950-01929

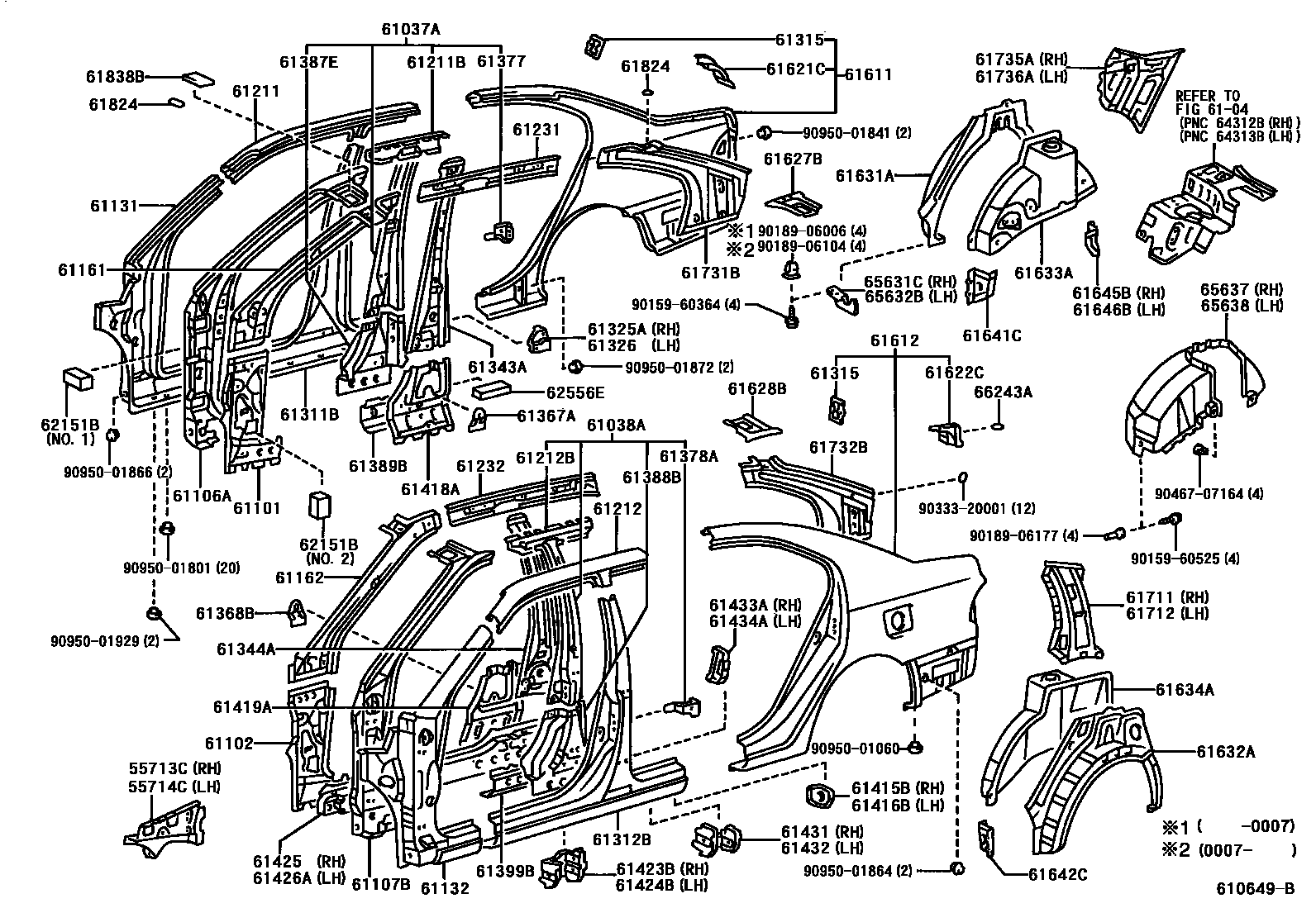

89 parts on this diagram · 1 diagram in section
