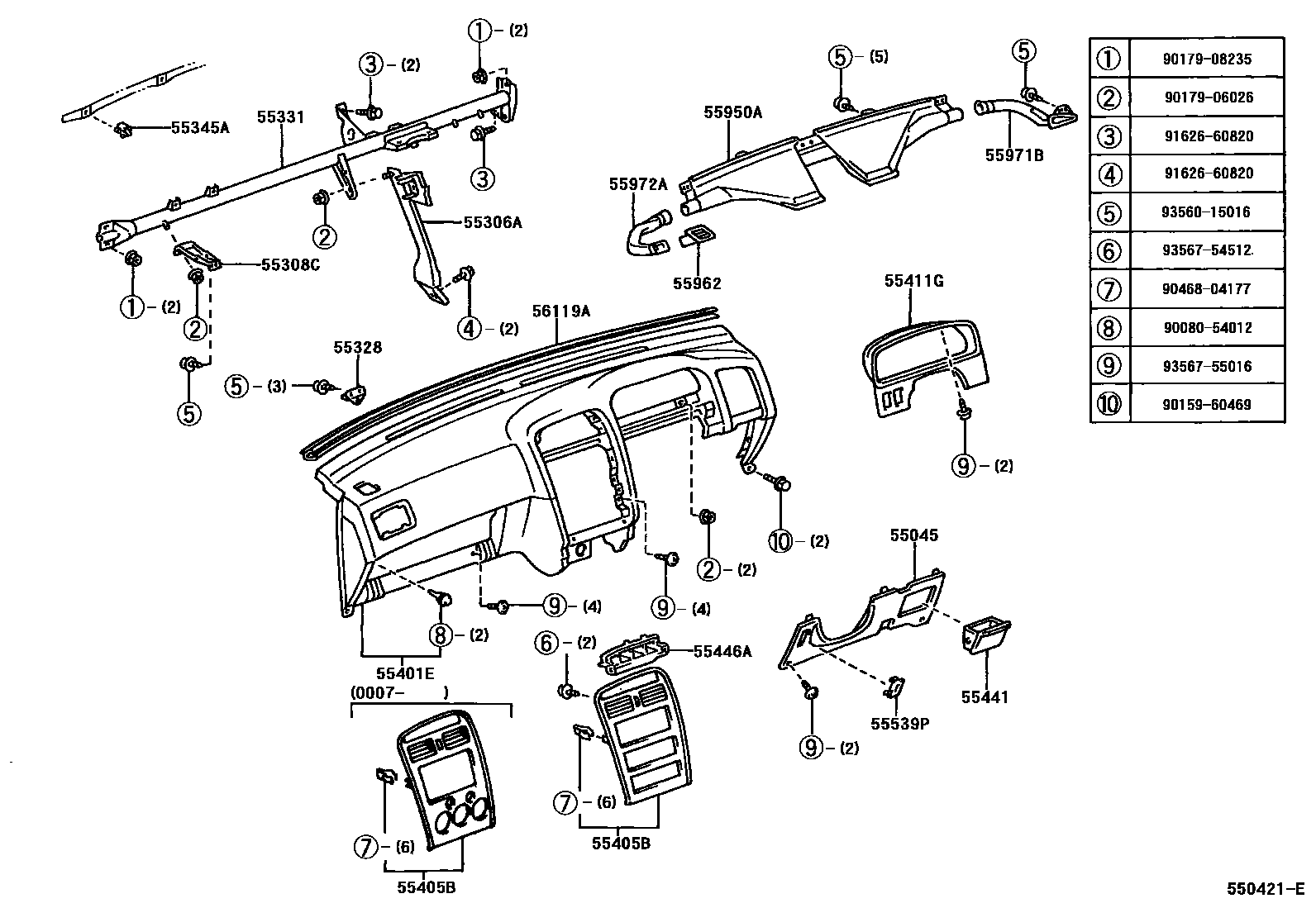

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-05010-B0iAT220,CT220,ST220..LHD199710-200007

MD.GRAY,TRIM1#

main55045-05010-B1iST220..LHD200007

DK.GRAY,TRIM1#

main55045-05010-G0iAT220,CT220,ST220..LHD199710

SLATE GREEN,TRIM6#

main55045-05020-B0iAT220,ST220..RHD199710-200007

MD.GRAY,TRIM1#

main55045-05020-B1iST220..RHD200007

DK.GRAY,TRIM1#

main55045-05020-G0iAT220,ST220..RHD199710

SLATE GREEN,TRIM6#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-05040iAT220,CT220,ST220..LHD199710-200007

main55306-05050iAT220,ST220..RHD199710-200007

main55306-05060iST220..LHD200007

main55306-05070iST220..RHD200007

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-05030iAT220,CT220,ST220199710

55328PIN, INSTRUMENT PANEL, NO.1

main55328-05020×3iAT220,CT220,ST220199710

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-05050iAT220,CT220,ST220..LHD199710-199905

main55330-05060iAT220,ST220..RHD199710-199905

main55330-05070iAT220,CT220,ST220..LHD199905

main55330-05080iAT220,ST220..RHD199905

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-05010×5iAT220,CT220,ST220199710

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-05050-B0iCT220,ST220..LHD199901-200007

W(*80,DRIVER SIDE & PASSENGER SIDE),MD.GRAY,TRIM1#

main55401-05050-B1iST220..LHD200007

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#

main55401-05050-G0iCT220,ST220..LHD199901

W(*80,DRIVER SIDE & PASSENGER SIDE),SLATE GREEN,TRIM6#

main55401-05070-B0iAT220,CT220,ST220..LHD199710-200007

MD. GRAY,TRIM1#

main55401-05070-B1iST220..LHD200007

DK.GRAY,TRIM1#

main55401-05070-G0iAT220,CT220,ST220..LHD199710

SLATE GREEN,TRIM6#

main55401-05080-B0iAT220,ST220..RHD199710-200007

MD. GRAY,TRIM1#

main55401-05080-B1iST220..RHD200007

DK.GRAY,TRIM1#

main55401-05080-G0iAT220,ST220..RHD199710

SLATE GREEN,TRIM6#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-05060iAT220,CT220,ST220..LHD199710-199802

main55405-05061iAT220,CT220,ST220..LHD199802-200007

main55405-05070iAT220,ST220..RHD199710-199802

main55405-05071iAT220,ST220..RHD199802-200007

main55405-05110iST220..LHD200007

WOOD GRAIN

main55405-05120iST220..RHD200007

WOOD GRAIN

main55405-05130iST220..LHD200107

METALLIC

main55405-05140iST220..RHD200107

METALLIC

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-05030iAT220,CT220,ST220..LHD199710

main55411-05040iAT220,ST220..RHD199710

55441BOX, INSTRUMENT PANEL

main55441-05010-B0iAT220,CT220,ST220199710-200007

MD.GRAY,TRIM1#

main55441-05010-B1iST220200007

DK.GRAY,TRIM1#

main55441-05010-G0iAT220,CT220,ST220199710

SLATE GREEN,TRIM6#

55446ABASE, SWITCH HOLE, NO.1

main55446-20120iAT220,CT220,ST220..LHD199710-200007

main55446-20130iAT220,ST220..RHD199710-200007

main55446-20140iST220..LHD200007

main55446-20150iST220..RHD200007

55539COVER, SPARE SWITCH HOLE

main55539-05050iAT220,CT220,ST220199710

55539PCOVER, SPARE SWITCH HOLE

main55539-05030-B0iAT220,ST220..RHD199710-200007

MD. GRAY,TRIM1#

main55539-05030-B1iST220..RHD200007

DK.GRAY,TRIM1#

main55539-05030-G0iAT220,ST220..RHD199710

GREEN,TRIM6#

55950ANOZZLE ASSY, DEFROSTER

main55950-05030iAT220,CT220,ST220..LHD199710

main55950-05040iAT220,ST220..RHD199710

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-05030-B0iAT220,CT220,ST220..LHD199710-200007

MD.GRAY,TRIM1#

main55962-05030-B1iST220..LHD200007

DK.GRAY,TRIM1#

main55962-05030-G0iAT220,CT220,ST220..LHD199710

SLATE GREEN,TRIM6#

main55962-05040-B0iAT220,ST220..RHD199710-200007

MD.GRAY,TRIM1#

main55962-05040-B1iST220..RHD200007

DK.GRAY,TRIM1#

main55962-05040-G0iAT220,ST220..RHD199710

SLATE GREEN,TRIM6#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-05010iAT220,CT220,ST220..LHD199710

main55971-05020iAT220,ST220..RHD199710

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-05010iAT220,CT220,ST220..LHD199710

main55972-05020iAT220,ST220..RHD199710

56119ASEAL, WINDSHIELD GLASS

main56119-05010iAT220,CT220,ST220199710

9008054012

main90080-54012

9015960469

main90159-60469

9017906026

main90179-06026

9017908235

main90179-08235

9046804177

main90468-04177

9162660820

main91626-60820

9356015016

main93560-15016

9356754512

main93567-54512

9356755016

main93567-55016

27 parts on this diagram · 4 diagrams in section
