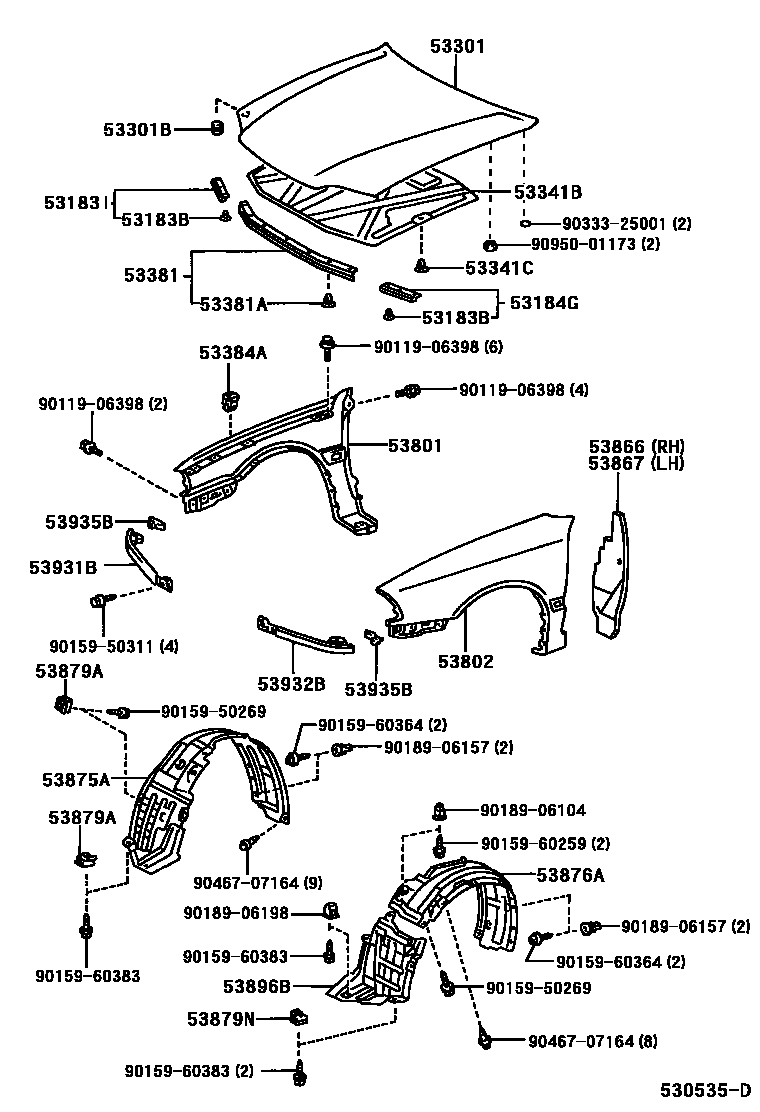

HOOD & FRONT FENDER
53183BCLIP(FOR HEADLAMP COVER SEAL)
53183ISEAL, HEADLAMP COVER, RH
53184GSEAL, HEADLAMP COVER, LH
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
sub90467-08011
53384ABUMPER, FENDER TO HOOD
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53879NRETAINER, FRONT FENDER LINER, LH
53896BSHIELD, FRONT FENDER SPLASH, FRONT LH
53931BPANEL, FRONT END, RH
53932BPANEL, FRONT END, LH
53935BPROTECTOR, FRONT END PANEL
9011906398
main90119-06398
9015950269
main90159-50269
9015950311
main90159-50311
9015960259
main90159-60259
9015960364
main90159-60364
9015960383
main90159-60383
9018906104
main90189-06104
9018906157
main90189-06157
9018906198
main90189-06198
9033325001
main90333-25001
9046707164
main90467-07164
9095001173
main90950-01173
34 parts on this diagram · 2 diagrams in section
