Toyota 261230 — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48650LINK ASSY, LOWER ARM CONTROL
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
9011914083
9025203008
9538103025

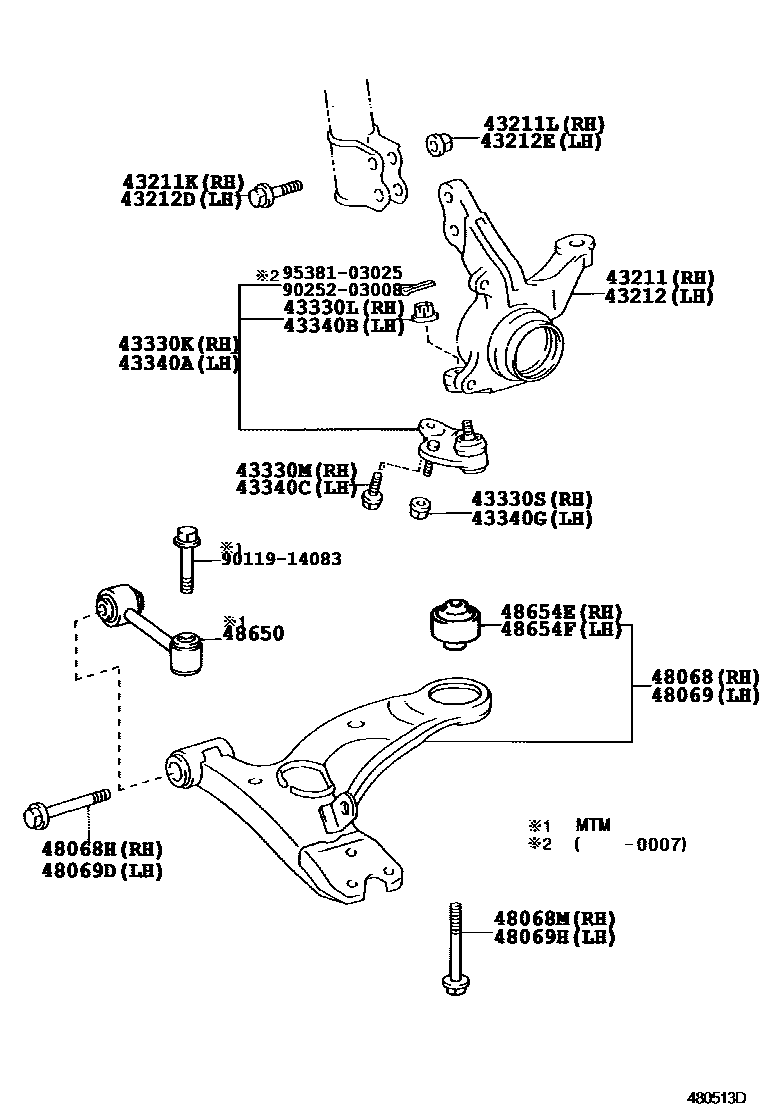

26 parts on this diagram · 2 diagrams in section
FRONT AXLE ARM & STEERING KNUCKLE for Toyota 261230
This section contains 26 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota 261230. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH, BOLT (FOR STEERING KNUCKLE LH).
