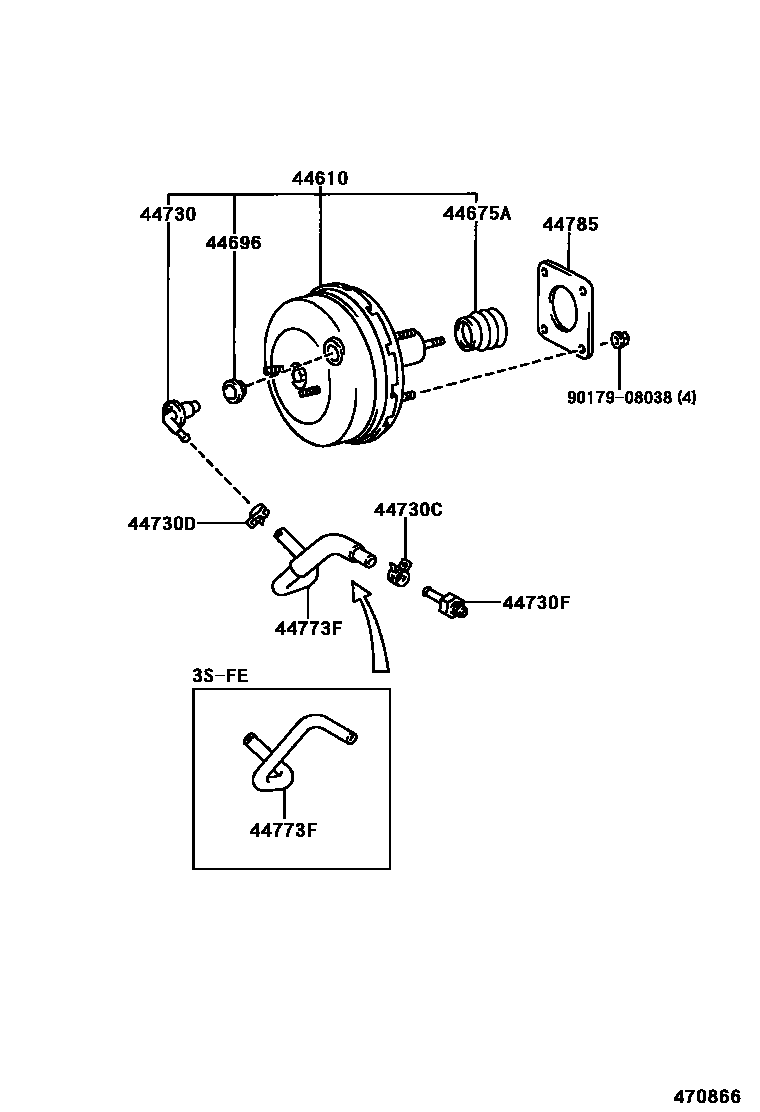

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-05030iAT220,ST220..RHD199710

main44610-05040iAT220,CT220,ST220..LHD199710-199901

main44610-05041iAT220,CT220,ST220..LHD199901

44675ABOOT, BRAKE BOOSTER

main44675-05030iAT220,CT220,ST220199710

44696GROMMET, CHECK VALVE

main90069-20004iAT220,CT220,ST220199710

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-05010iAT220,CT220,ST220199710

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iAT220,CT220,ST220..LHD; AT220,ST220..RHD199710

44730DCLIP(FOR VACUUM HOSE, NO.1)

main90467-16014iST220;AT220,CT220..LHD199710

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAT220,ST220199710

44773FHOSE, UNION TO CHECK VALVE

main44773-2B060iCT220199710-200007

main44773-2B080iST220..RHD199710

main44773-2B120iAT220..RHD199710-200007

44785GASKET, BRAKE BOOSTER

main44785-20020iAT220,CT220,ST220199710

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
