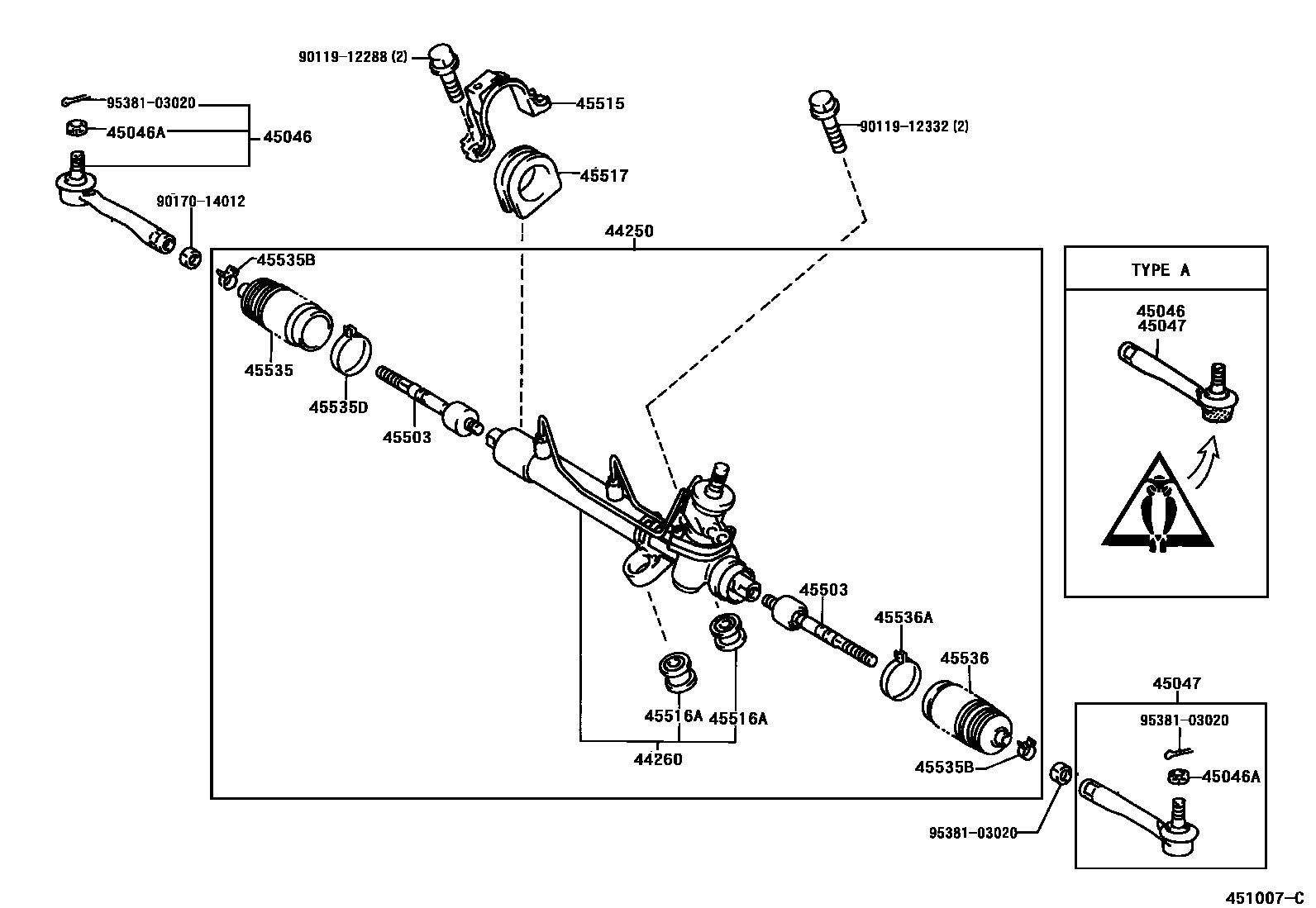

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-05050iAT220,ST220..RHD199710-200107

main44250-05060iAT220,CT220,ST220..LHD199710-200110

main44250-05061iST220..LHD200110

main44250-05100iST220..RHD200107-200110

main44250-05101iST220..RHD200110

44260CYLINDER ASSY, POWER STEERING POWER

main44260-05050iAT220,ST220..RHD199710-200301

main44260-05060iAT220,CT220,ST220..LHD199710-200110

45046END SUB-ASSY, TIE ROD, RH

main45046-09100iST220200007

TYPE A:REFER TO ILLUSTRATION

main45046-29365iAT220,CT220,ST220199710

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAT220,CT220,ST220199710

45047END SUB-ASSY, TIE ROD, LH

main45047-09030iST220200007

TYPE A:REFER TO ILLUSTRATION

main45047-29125iAT220,CT220,ST220199710

45503END SUB-ASSY, STEERING RACK

main45503-05020×2iAT220,CT220,ST220199710-200110

main45503-05050×2iST220200110

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20160iAT220,ST220..RHD199710

main45515-20210iAT220,ST220..LHD199710

main45515-20270iCT220199710-200007

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-05020×2iAT220,CT220,ST220199710

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-05030iAT220,CT220,ST220199710

45535BOOT, STEERING RACK, NO.1

main45535-05020iAT220,CT220,ST220199710

45535BCLIP(FOR STEERING RACK BOOT)

main90069-48002×2iST220200104

main90080-46222×2iAT220,CT220,ST220199710-200104

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-46228iAT220,CT220,ST220199710

45536BOOT, STEERING RACK, NO.2

main45535-05020iAT220,CT220,ST220199710

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46228iAT220,CT220,ST220199710

9011912288

main90119-12288

9011912332

main90119-12332

9017014012

main90170-14012

9538103020

main95381-03020

18 parts on this diagram · 2 diagrams in section
