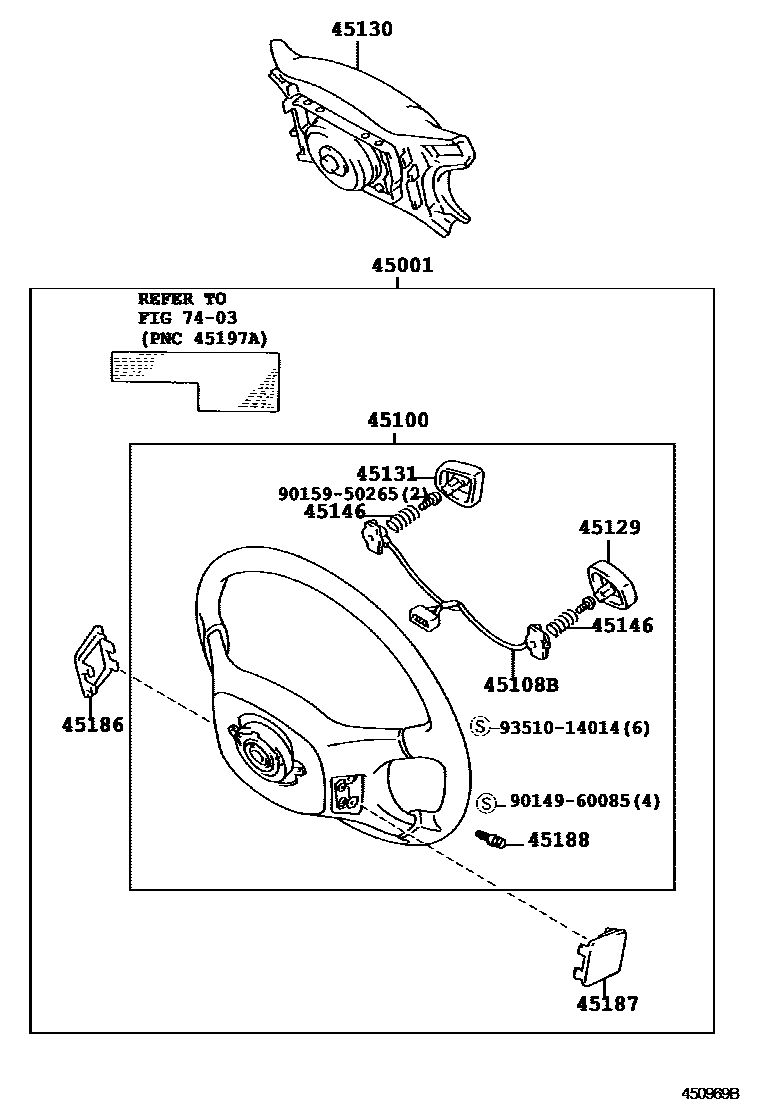

STEERING WHEEL

0001 14-SPOKE, MECHANICAL TYPE *80 0002 14-SPOKE

45001AIRBAG KIT, STTERING WHEEL

main45001-20120-C0iAT220,CT220,ST220199710-199901

BLACK,TRIM1#,6#

45100WHEEL ASSY, STEERING

main45100-05060-C0iAT220,CT220,ST220199710-200007

4-SPOKE,URETHANE,BLACK,TRIM1#,6#

main45100-05070-C0iCT220,ST220..LHD199905-200007

4-SPOKE,LEATHER,W(ELECTRICAL TYPE *80),BLACK,TRIM1#,6#

main45100-05090-C0iST220..LHD200007

4-SPOKE,LEATHER,W(ELECTRICAL TYPE *80),BLACK,TRIM1#,6#

main45100-05140-C0iST220200007

4-SPOKE,URETHANE,BLACK,TRIM1#,6#

main45100-2B680-C0iAT220,CT220,ST220199710-199901

4-SPOKE,W(MECHANICAL TYPE *80),BLACK,TRIM1#,6#

45108BBUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY)

main45108-32070iAT220,CT220,ST220199710-199901

45129BUTTON, HORN, NO.2

main45129-32020-C0iAT220,CT220,ST220199710-199901

BLACK,TRIM1#,6#

45130BUTTON ASSY, HORN

main45130-05050-C0iST220..LHD199710-199901

W(ELECTRICAL TYPE *80),BLACK,TRIM1#,6#

main45130-05060-C0iAT220,CT220,ST220199710

BLACK,TRIM1#,6#

main45130-05070-C0iCT220,ST220..LHD199901

W(ELECTRICAL TYPE *80),BLACK,TRIM1#,6#

main45130-2B390-C0iAT220,CT220,ST220199710-199901

W(MECHANICAL TYPE *80),BLACK,TRIM1#,6#

45131BUTTON, HORN, NO.1

main45131-32070-C0iAT220,CT220,ST220199710-199901

BLACK,TRIM1#,6#

45146SPRING, HORN BUTTON CONTACT

main45146-32070×2iAT220,CT220,ST220199710-199901

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-32040-C0iAT220,CT220,ST220199710-199901

BLACK,TRIM1#,6#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-32040-C0iAT220,CT220,ST220199710-199901

BLACK,TRIM1#,6#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90080-14018×2iAT220,CT220,ST220199710

L=15.5,W(ELECTRICAL TYPE *80)

main90148-60007×2iAT220,CT220,ST220199710-199901

W(MECHANICAL TYPE *80)

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9014960085

main90149-60085

9015950265

main90159-50265

9351014014

main93510-14014

14 parts on this diagram · 2 diagrams in section
