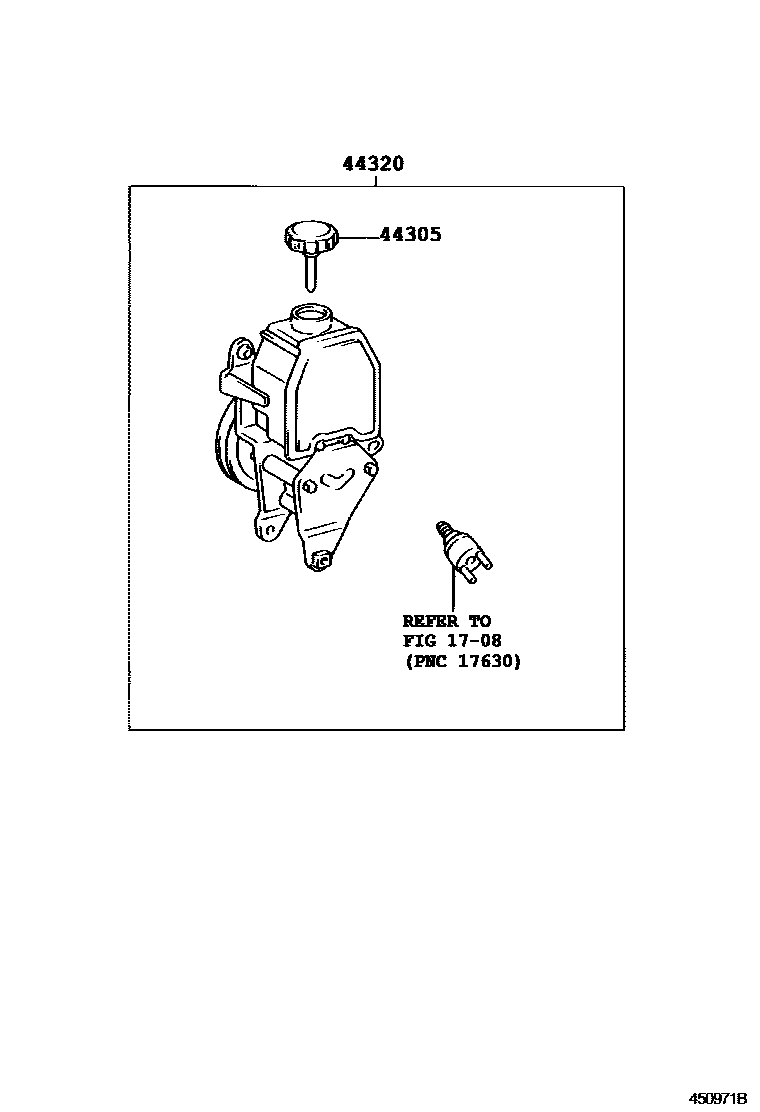

VANE PUMP & RESERVOIR (POWER STEERING)

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-05030i199710-200007

main44305-20041i199710

44320PUMP ASSY, VANE

main44310-05030i199710-200007

main44310-05050i199710

main44320-20570i199710-200007

3 parts on this diagram · 3 diagrams in section
