FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-05020iAT220,CT220,ST220199710-200207

sub43502-32080

main43502-32080iST220200207-200301

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAT220,CT220,ST220199710

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36087iAT220,CT220,ST220199710

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iAT220,CT220,ST220199710

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001iAT220,CT220,ST220199710

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-05020iAT220,CT220,ST220199710-200207

sub43502-32080

main43502-32080iST220200207-200301

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAT220,CT220,ST220199710

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36087iAT220,CT220,ST220199710

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iAT220,CT220,ST220199710

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001iAT220,CT220,ST220199710

43512DISC, FRONT

main43512-05030iAT220,CT220,ST220199710-200301

14 INCHES DISC WHEEL

main43512-05060iST220..LHD200107-200111

15 INCHES DISC WHEEL

sub43512-20730

main43512-20600iST220..LHD200007-200103

15 INCHES DISC WHEEL

sub43512-20601

main43512-20601iST220..LHD200103-200107

15 INCHES DISC WHEEL

main43512-20730iST220..LHD200111-200301

15 INCHES DISC WHEEL

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iAT220,CT220,ST220199710

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iAT220,CT220,ST220199710

9538104030

main95381-04030

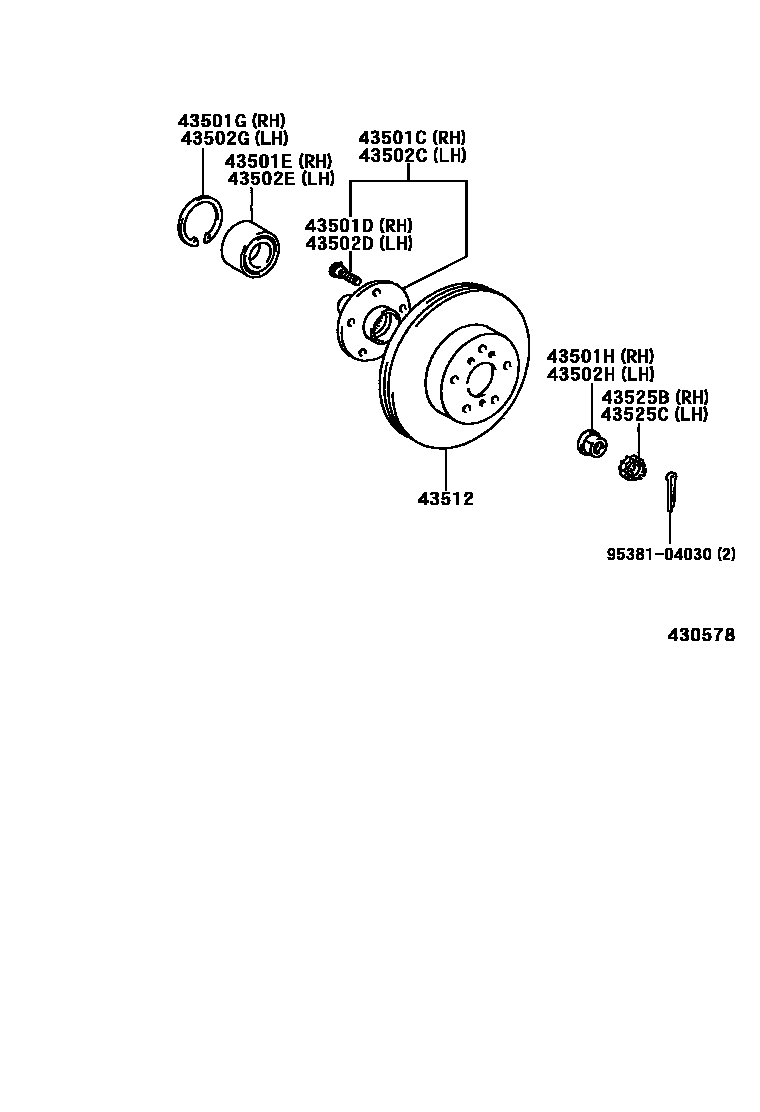

14 parts on this diagram · 1 diagram in section
