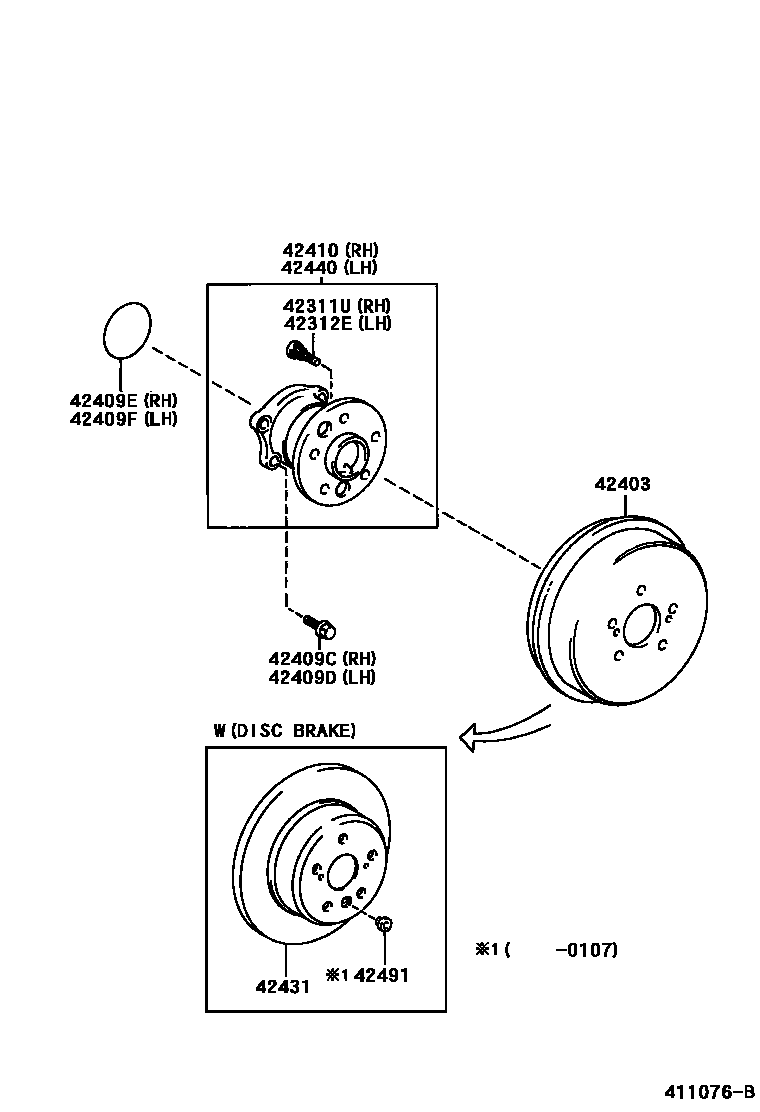

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047×5iST220200203

L=41

main90942-02049×5iAT220,CT220,ST220199710-200203

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047×5iST220200203

L=41

main90942-02049×5iST220200203

L=45

42403DRUM SUB-ASSY, REAR BRAKE

main42431-05020×2iAT220,CT220,ST220199710

42409CBOLT (FOR REAR AXLE BEARING RH)

main90105-10124×4iAT220,CT220,ST220199710

42409DBOLT (FOR REAR AXLE BEARING LH)

main90105-10124×4iAT220,CT220,ST220199710

42409ERING, O (FOR REAR AXLE BEARING RH)

main90301-63003iAT220,CT220,ST220199710-200108

main90301-63006iST220200108

42409FRING, O (FOR REAR AXLE BEARING LH)

main90301-63003iAT220,CT220,ST220199710-200108

main90301-63006iST220200108

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-05050iAT220,CT220,ST220199710

main42450-05030iST220..LHD199710-199901

W(ABS)

42431DISC, REAR

main42431-05040×2iST220..LHD200107

main42431-20430×2iST220..LHD200007-200107

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-05050iAT220,CT220,ST220199710

main42450-05030iST220..LHD199710-199901

W(ABS)

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iST220..LHD200007-200107

11 parts on this diagram · 1 diagram in section
