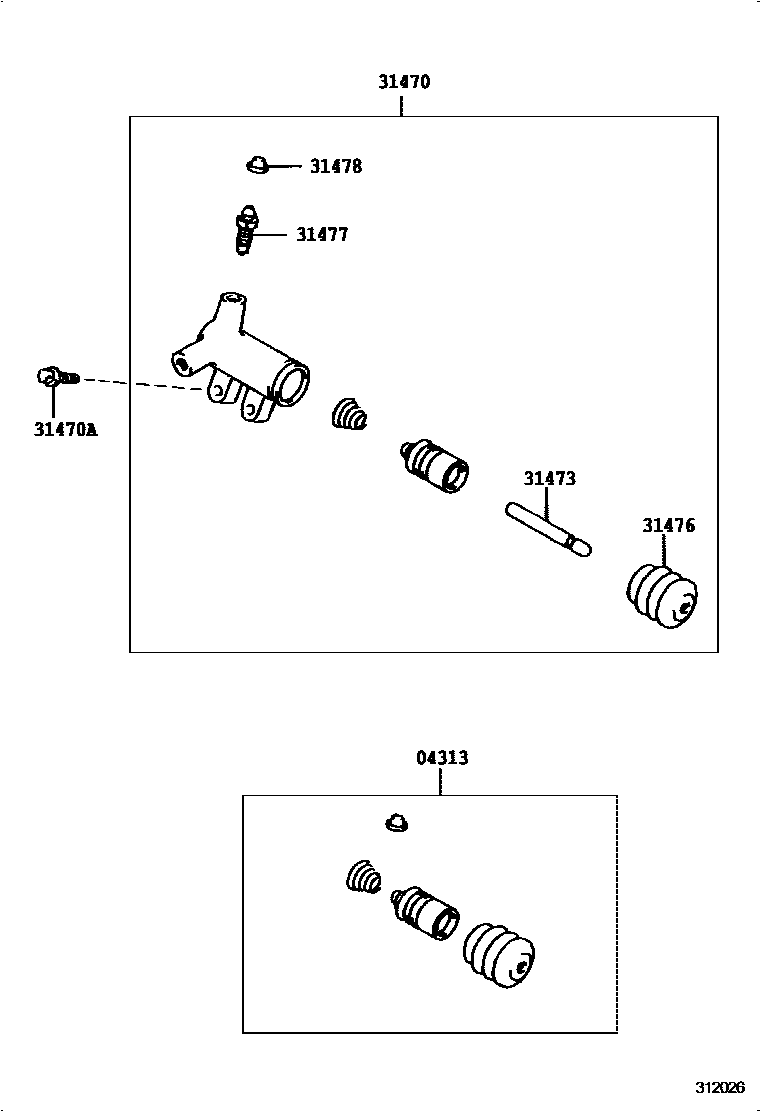

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCT220199710-200007

main04313-17020iST220..MTM199710

main04313-22030iAT220..MTM199710-200007

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12093iAT220..MTM199710-200007

main31470-20210iST220..MTM199710

main31470-32032iCT220199710-200007

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAT220..MTM199710-200007

*8-1.25PX22-17.1

main91611-60825iCT220,ST220..MTM199710

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCT220,ST220..MTM199710

main31473-32010iAT220..MTM199710-200007

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT220,CT220,ST220..MTM199710

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAT220,CT220,ST220..MTM199710

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT220,CT220,ST220..MTM199710

7 parts on this diagram · 2 diagrams in section
