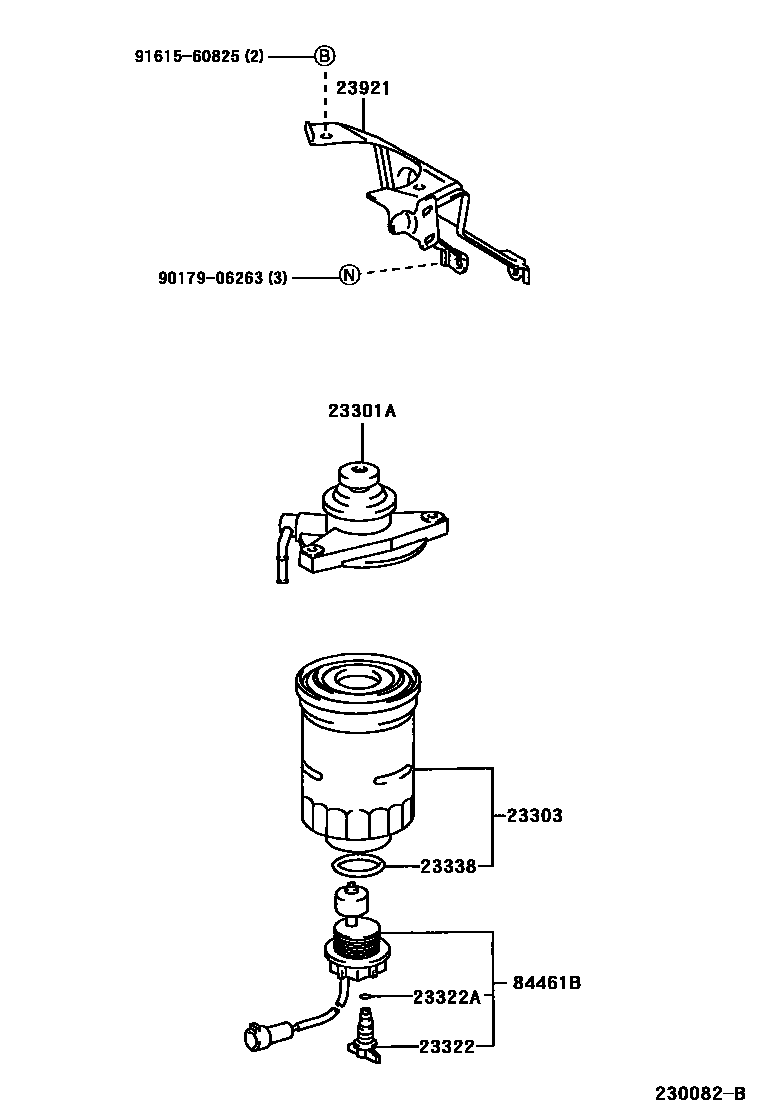

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23380-64450i2CT..CT220199710-200007

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i2CT..CT220199710-200007

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2CT..CT220199710-200007

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2CT..CT220199710-200007

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2CT..CT220199710-200007

23921SUPPORT, FUEL FILTER

main23921-64250i2CT..CT220199710-200007

84461BSWITCH, LEVEL WARNING

main84461-20090iCT220199710-200007

9017906263

main90179-06263

9161560825

main91615-60825

9 parts on this diagram · 1 diagram in section
