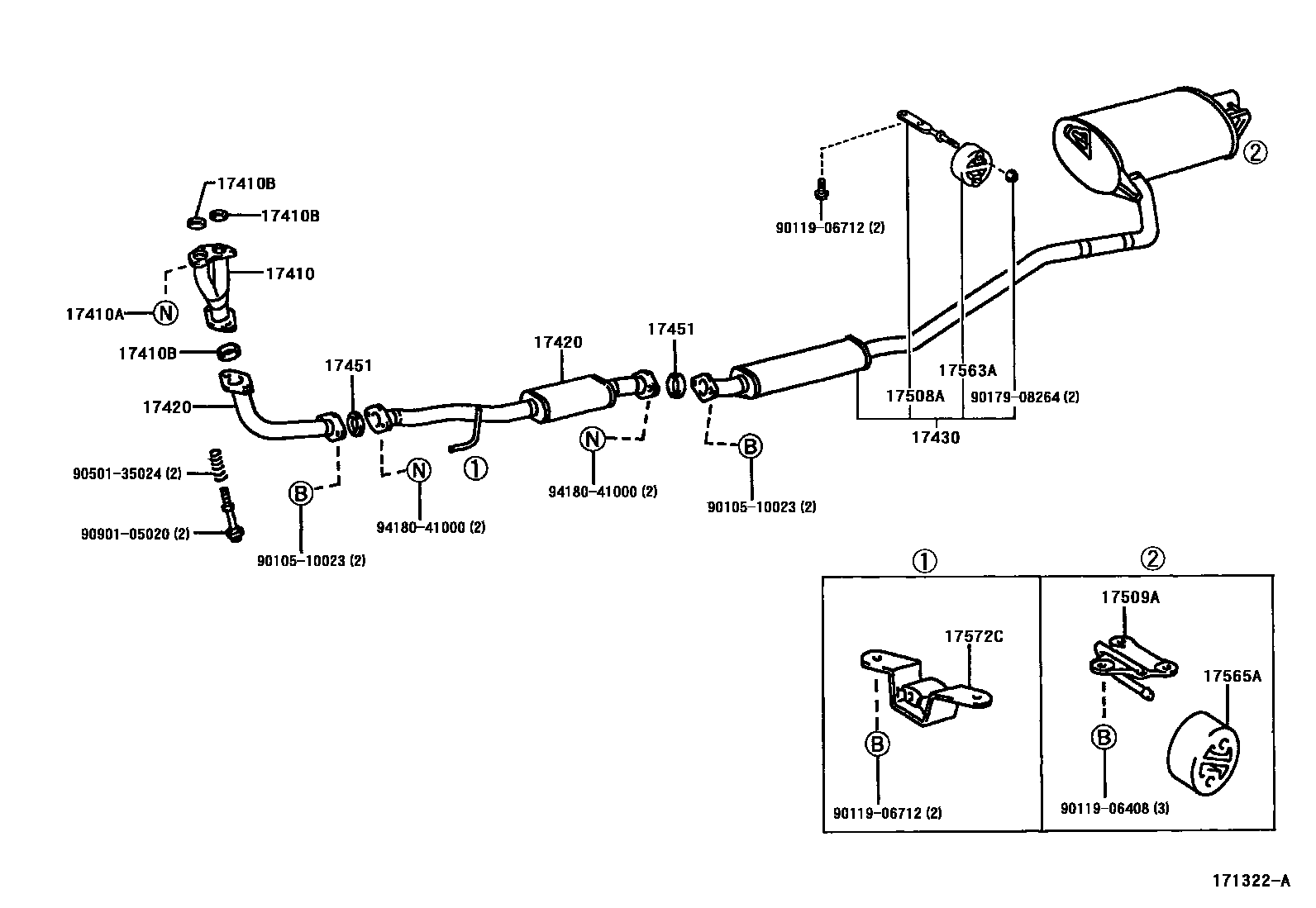

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-02350i4AFE..AT220199710-200007

main17410-03260i3SFE..ST220199710

main17410-0B020i2CT..CT220199710-200007

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i4AFE,3SFE..AT220,ST220199710

17410BGASKET, EXHAUST PIPE

main17451-02030i4AFE,3SFE..AT220,ST220199710-200007

REAR

main17451-22020i3SFE..ST220200007

REAR

main17451-64010i2CT..CT220199710-200007

main90917-06061×2i3SFE..ST220199710

FRONT

main90917-06064×2i4AFE..AT220199710-200007

FRONT

17420PIPE ASSY, EXHAUST, CENTER

main17420-02120i4AFE,3SFE..AT220,ST220199710

REAR

main17420-02140i4AFE..AT220199710-200007

FRONT

main17420-03170i3SFE..ST220199710

FRONT

17430PIPE ASSY, EXHAUST, TAIL

main17430-02180i4AFE,3SFE..AT220,ST220199710-199802

main17430-02181i4AFE,3SFE..AT220,ST220199802

main17430-0B030i2CT..CT220199710-199802

main17430-0B031i2CT..CT220199802-200007

17451GASKET, EXHAUST PIPE

main90917-06046i2CT..CT220199710-200007

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-02050i4AFE,2CT,3SFE..AT220,CT220,ST220199710

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-02020i4AFE,2CT,3SFE..AT220,CT220,ST220199710

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-16270i4AFE,2CT,3SFE..AT220,CT220,ST220199710

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-16270i4AFE,2CT,3SFE..AT220,CT220,ST220199710

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-74430i4AFE,3SFE..AT220,ST220199710

9010510023

main90105-10023

9011906408

main90119-06408

9011906712

main90119-06712

9017908264

main90179-08264

9050135024

main90501-35024

9090105020

main90901-05020

9418041000

main94180-41000

18 parts on this diagram · 3 diagrams in section
