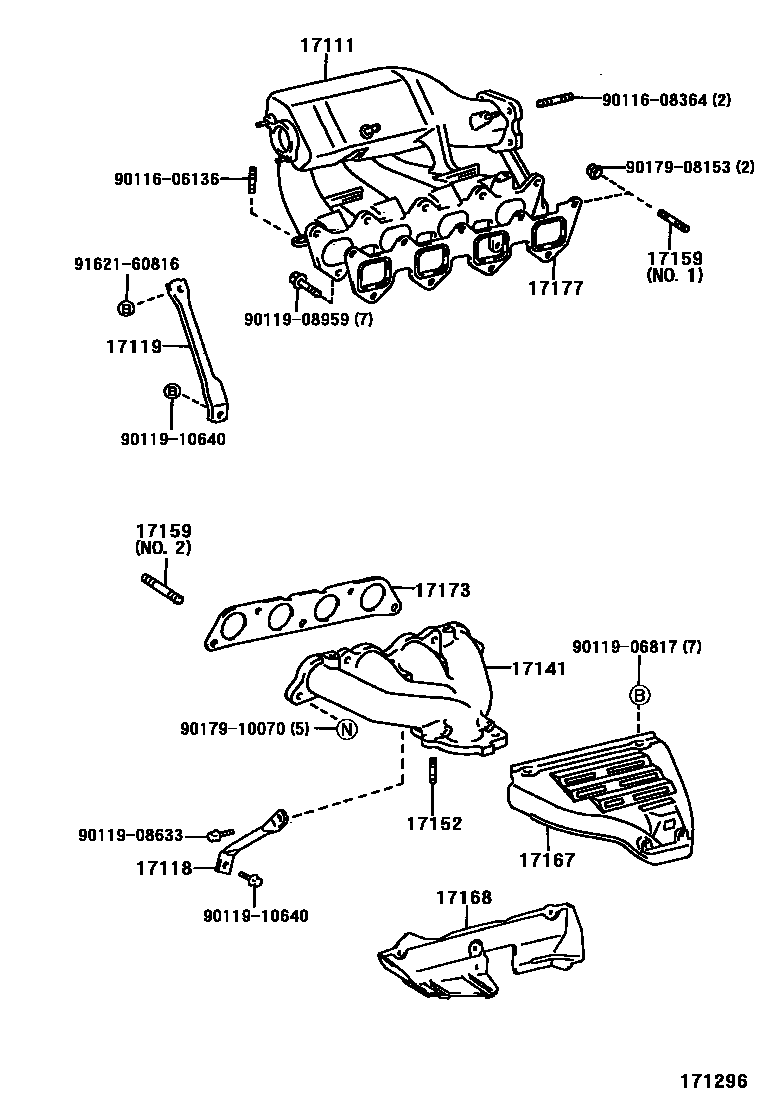

MANIFOLD
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011606136
main90116-06136
9011608364
main90116-08364
9011906817
main90119-06817
9011908633
main90119-08633
9011908959
main90119-08959
9011910640
main90119-10640
9017908153
main90179-08153
9017910070
main90179-10070
9162160816
main91621-60816
19 parts on this diagram · 4 diagrams in section
