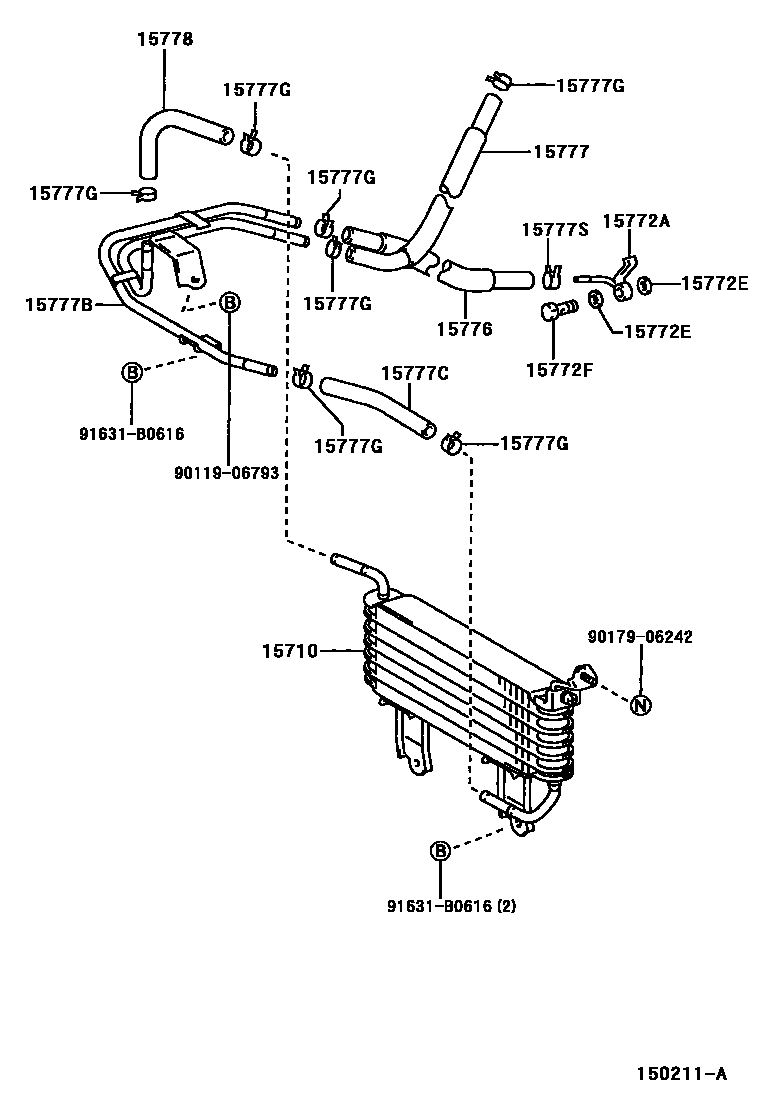

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15700-02060i4AFE..AT220199710-200007

main15710-64150i2CT..CT220199710-200007

main15710-74050i3SFE..ST220199710

15772AUNION(FOR OIL PIPE)

main90080-40016i4AFE..AT220199710-199902

main90405-10030i4AFE..AT220199902-200007

15772EGASKET(FOR OIL PIPE)

main90430-12031i4AFE..AT220199710-200007

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i4AFE..AT220199710-200007

15776HOSE, OIL COOLER, NO.4

main15777-02030i4AFE..AT220199710-200007

15777HOSE, OIL COOLER

main15777-02030i4AFE..AT220199710-200007

main90445-21006i2CT..CT220199710-200007

15777BPIPE, OIL COOLER

main15767-02030i4AFE..AT220199710-200007

sub15767-16150

main15767-64090i2CT..CT220199710-200007

NO.2

main15768-64120i2CT..CT220199710-200007

NO.1

main15769-64011i2CT..CT220199710-200007

NO.3

15777CHOSE, OIL COOLER

main15777-64060i2CT..CT220199710-200007

NO.1

main15778-64040i2CT..CT220199710-200007

NO.2

main15779-02030i4AFE..AT220199710-200007

15777GCLAMP OR CRIP, HOSE

main90467-15025i4AFE..AT220199710-200007

sub90467-15018

main90467-20005i2CT..CT220199710-200007

sub96134-41900

15777SCLAMP OR CLIP, HOSE

main90467-15025i4AFE..AT220199710-200007

sub90467-15018

15778HOSE, OIL COOLER, NO.2

main15778-02030i4AFE..AT220199710-200007

9011906793

main90119-06793

9017906242

main90179-06242

91631B0616

main91631-B0616

14 parts on this diagram · 3 diagrams in section
