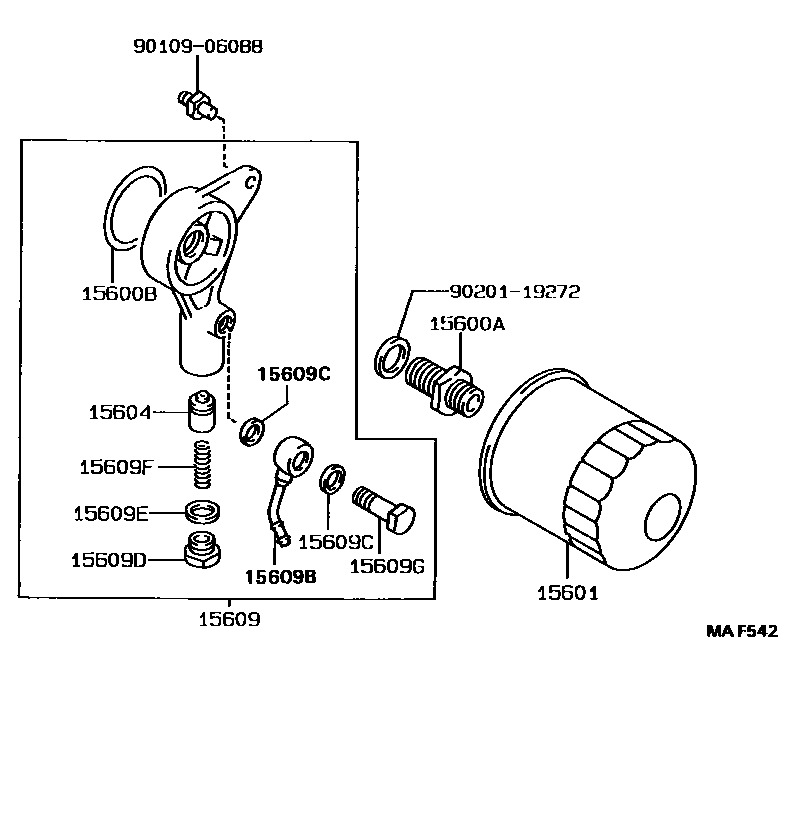

OIL FILTER
15600AUNION(FOR OIL FILTER)
15600BRING, O, NO.1(FOR OIL FILTER)
15601FILTER SUB-ASSY, OIL
(L)
(J)
(J)
15604VALVE SUB-ASSY, OIL SAFETY
15609BRACKET SUB-ASSY, OIL FILTER
15609BUNION(FOR OIL FILTER BRACKET)
15609CGASKET(FOR OIL FILTER BRACKET UNION)
15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
15609EGASKET, W/HEAD STRAIGHT SCREW PLUG
15609FSPRING(FOR OIL FILTER BRACKET)
15609GBOLT, UNION(FOR OIL FILTER BRACKET)
9010906088
main90109-06088
9020119272
main90201-19272
13 parts on this diagram · 3 diagrams in section
