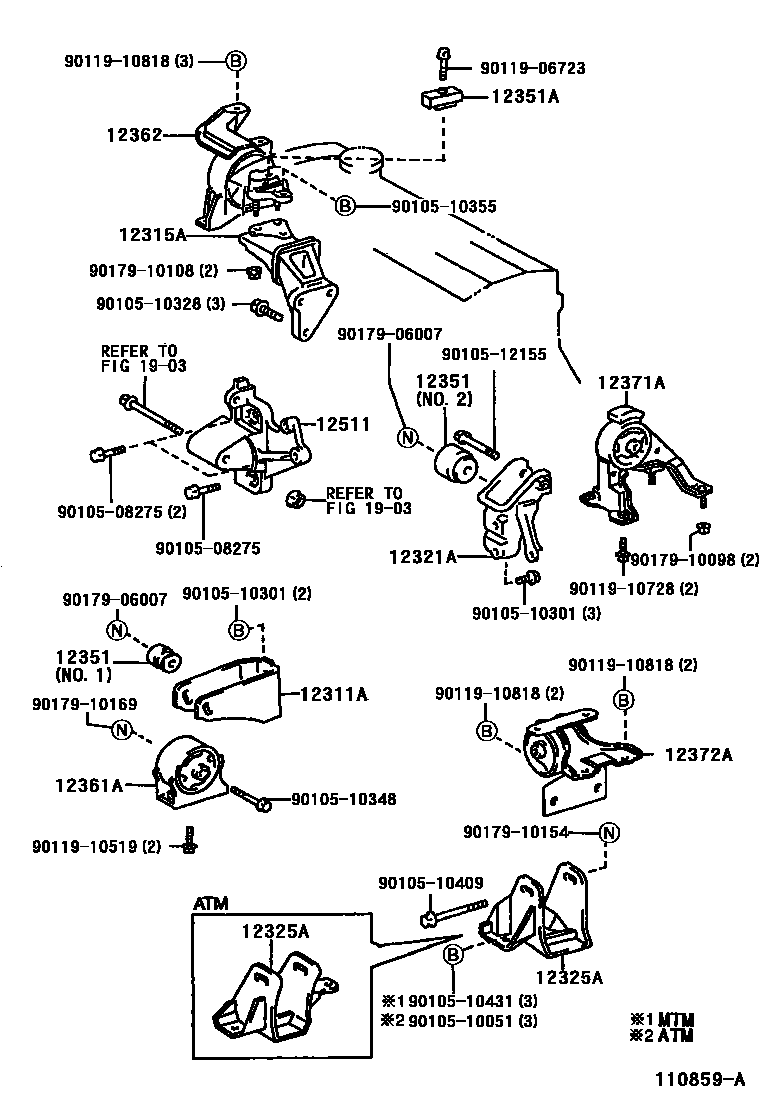

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-02040i199710-200007

main12311-03040i199710

main12311-0B010i199710-200007

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-02040i199710-200007

main12315-64110i199710-199803

main12315-64150i199803-200007

main12315-74140i199710

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-02020i199710-200007

main12321-03030i199710

main12321-0B020i199710-200007

main12321-16270i199710-200007

main12321-74270i199710

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-16200i199710-200007

main12325-16210i199710-200007

main12325-64170i199710-200007

main12325-74310i199710

main12325-74420i199710

12351DAMPER, ENGINE MOUNTING

main12351-02020i199710

main12351-02030i199710-200007

NO.2; PNC 12321A

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-16050i199710-200007

main12351-74100i199710

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-02090i199710-200007

main12361-02100i199710

main12361-0B011i199710

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-16160i199710-200007

main12305-64141i199710-199712

main12305-64142i199712-200007

main12305-74191i199710

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-02080i199710-200007

main12371-03060i199710

main12371-16340i199710-200007

main12371-28040i200007

main12371-64270i199710-200007

main12371-74500i199710-200007

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-02140i199710-200007

main12372-64260i199710-200007

12511BRACKET, ALTERNATOR, NO.1

main12511-02030i199710-199803

main12511-15050i199803-200007

main12511-64060i199710-200007

main12511-74051i199710

1903ALTERNATOR

→ Go to FIG 19-03

9010508275

main90105-08275

9010510051

main90105-10051

9010510301

main90105-10301

9010510328

main90105-10328

9010510348

main90105-10348

9010510355

main90105-10355

9010510409

main90105-10409

9010510431

main90105-10431

9010512155

main90105-12155

9011906723

main90119-06723

9011910519

main90119-10519

9011910728

main90119-10728

9011910818

main90119-10818

9017906007

main90179-06007

9017910098

main90179-10098

9017910108

main90179-10108

9017910154

main90179-10154

9017910169

main90179-10169
