ENGINE OVERHAUL GASKET KIT

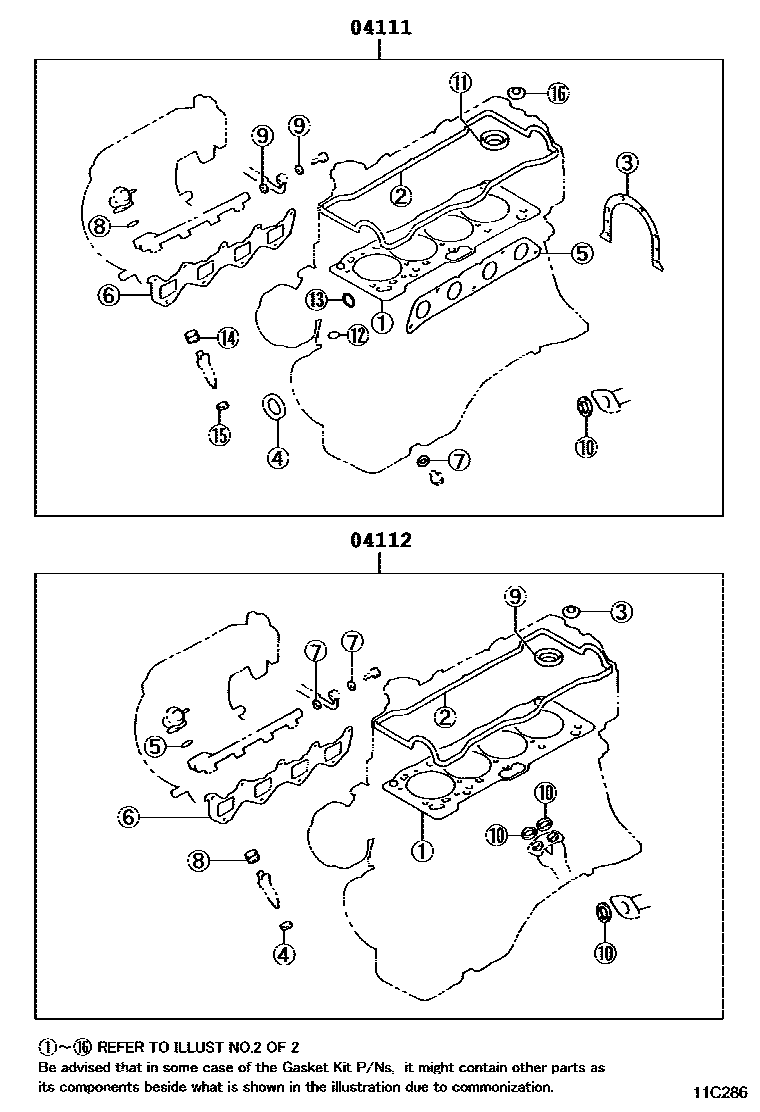

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-02022i199710-200007

main04111-64311i199710-199805

main04111-64312i199805-199811

main04111-64313i199811-199906

main04111-64314i199906-200007

main04111-74592i199710-200007

main04111-74820i200007

04112GASKET KIT, ENGINE VALVE GRIND

main04112-02022i199710-200007

main04112-64241i199710-199906

main04112-64242i199906-200007

main04112-74562i199710-200007

main04112-74830i200007

2 parts on this diagram · 10 diagrams in section
