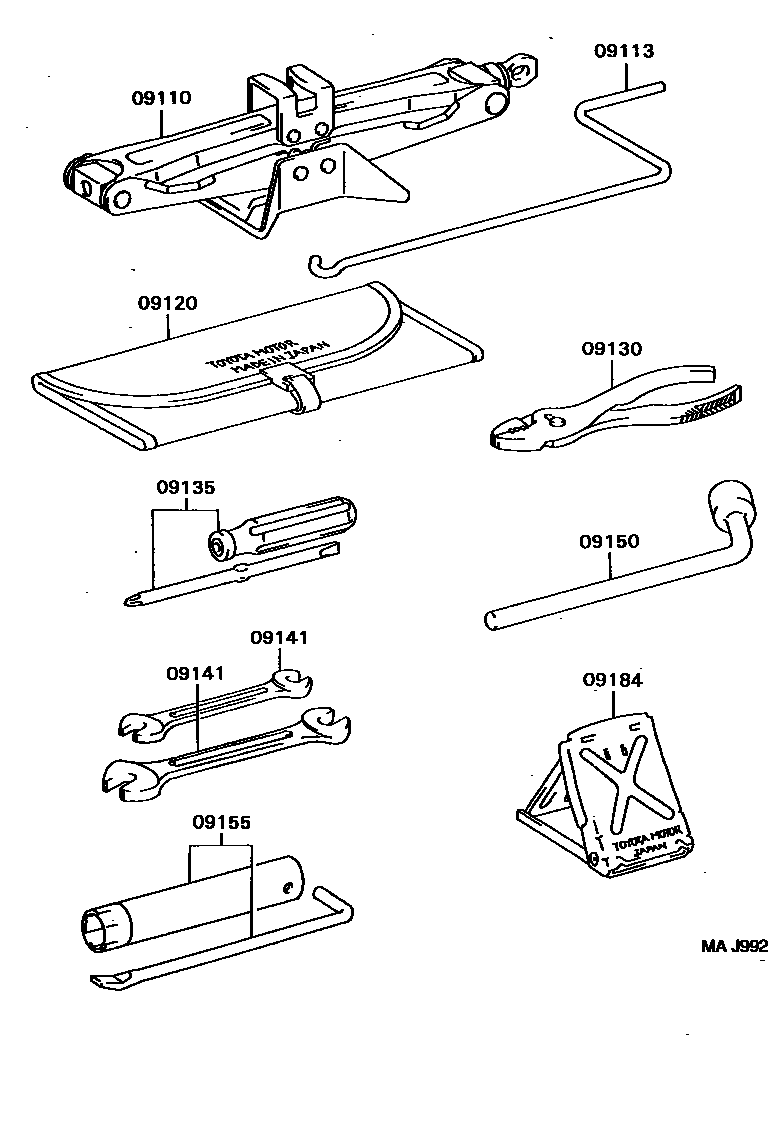

STANDARD TOOL

09110JACK ASSY

main09111-05010iAT220,CT220,ST220199710

sub09111-05031

09113HANDLE, JACK

main09113-05010iAT220,CT220,ST220199710

09120BAG, TOOL

main09120-05030iAT220,CT220,ST220199710

09130PLIERS

main90080-99009iAT220,CT220,ST220199710

09135DRIVER, SCREW

main90080-99008iAT220,CT220,ST220199710

09141SPANNER

main90080-99010iAT220,CT220,ST220199710

8 X 10

main90080-99011iAT220,CT220,ST220199710

12 X 14

09150WRENCH, HUB NUT BOX

main09150-05011iAT220,CT220,ST220199710

09155WRENCH, SPARK PLUG

main09155-02020iAT220199710-199811

main09155-74010iST220199710-199811

09184STOPPER, WHEEL

main09184-00010iAT220,CT220,ST220199710

9 parts on this diagram · 1 diagram in section
