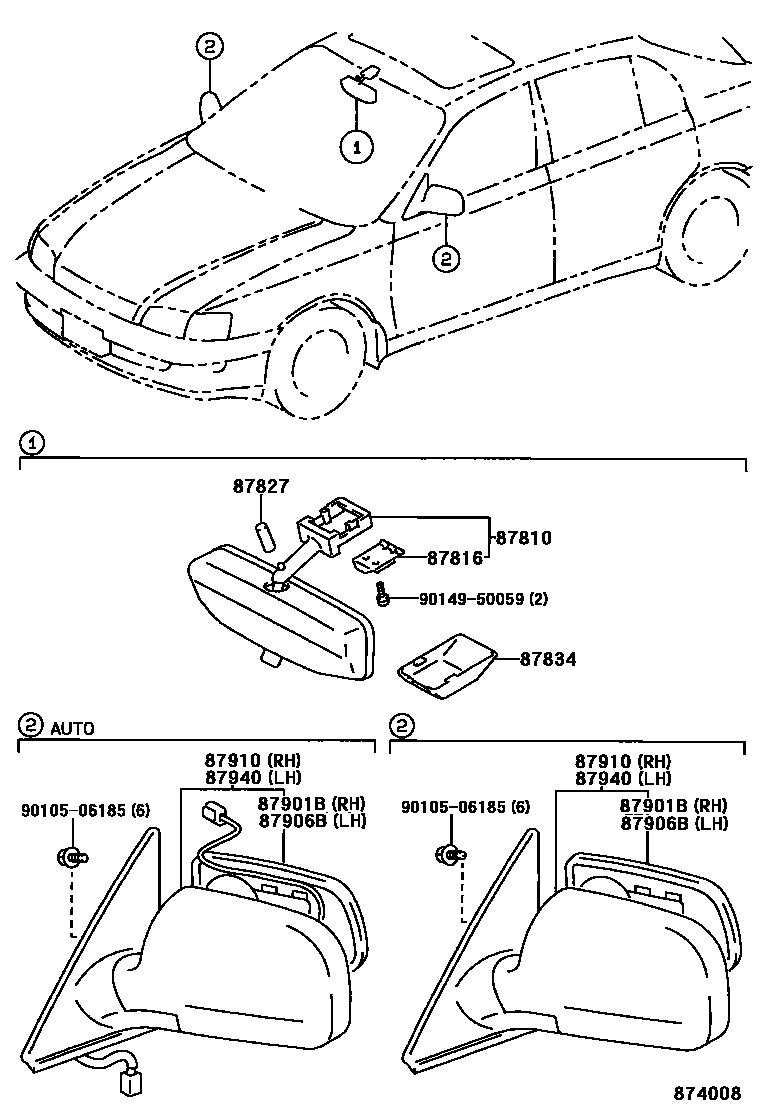

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-05010-C0iAT190,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-05010iAT190,CT190,ST191..UKP199601-199710

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22010iAT190,CT190,ST191..UKP199601-199710

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-05010-B0iAT190,CT190,ST191..UKP199601-199710

GRAY,TRIM1#,8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-05011iAT190,CT190,ST191..UKP199601-199710

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-05011iAT190,CT190,ST191..UKP199601-199710

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-05011iAT190..UKP..RHD199601-199710

main87910-05021iAT190..UKP..RHD; ST191..UKP..RHD199601-199710

W(ELECTRIC *RCM)

main87910-05041iAT190..UKP..LHD199601-199710

main87910-05051iAT190..UKP..LHD; CT190,ST191..UKP..LHD199601-199710

W(ELECTRIC *RCM)

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-05011iAT190..UKP..RHD199601-199710

main87940-05021iAT190..UKP..RHD; ST191..UKP..RHD199601-199710

W(ELECTRIC *RCM)

main87940-05041iAT190..UKP..LHD199601-199710

main87940-05051iAT190..UKP..LHD; CT190,ST191..UKP..LHD199601-199710

W(ELECTRIC *RCM)

9010506185

main90105-06185

9014950059

main90149-50059

10 parts on this diagram · 1 diagram in section
