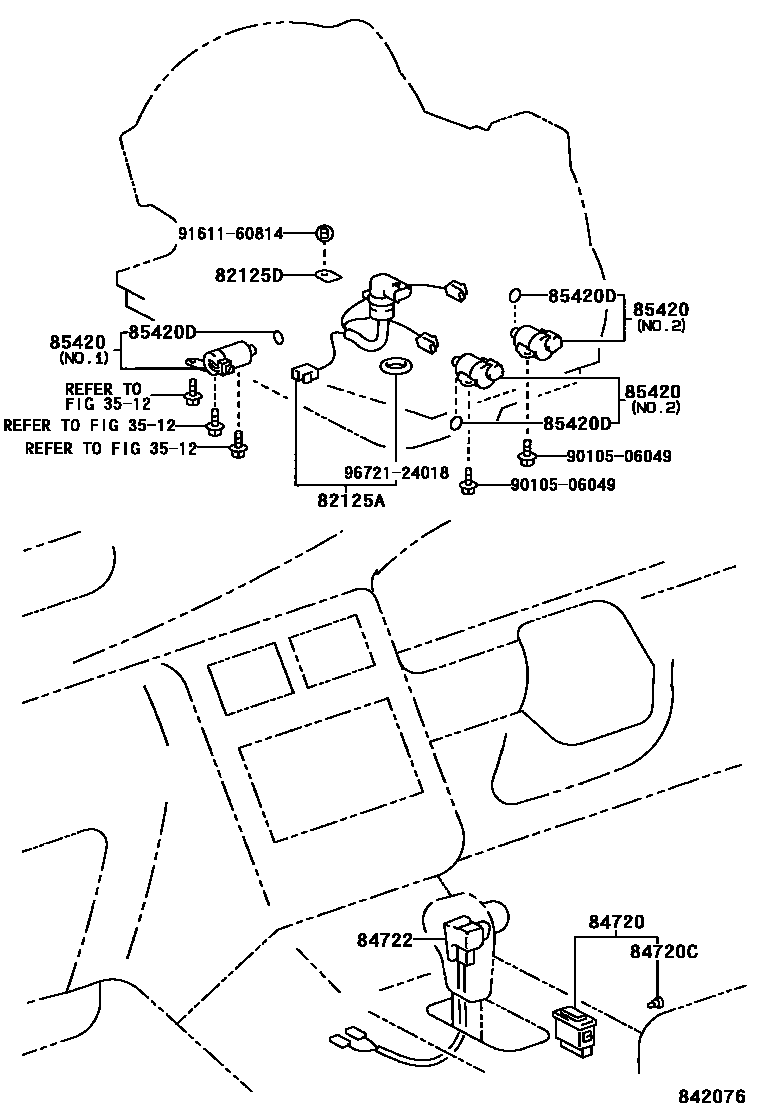

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

82125AWIRE, TRANSMISSION

main82125-12350iAT190..UKP..ATM199601-199710

main82125-20220iST191..UKP..ATM199601-199710

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iST191..UKP..ATM199601-199710

84720SWITCH ASSY, PATTERN SELECT

main84720-05010iAT190,ST191..UKP..ATM199601-199710

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-05040iAT190,ST191..UKP..ATM199601-199710

84722SWITCH, TRANSMISSION CONTROL

main84722-20150-C0iST191..UKP..RHD..ATM199601-199710

BLACK,TRIM1#,8#

main84722-20160-C0iAT190,ST191..UKP..LHD..ATM199601-199710

BLACK,TRIM1#,8#

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iAT190..UKP..ATM199601-199710

NO.1

main85420-12120iAT190..UKP..ATM199601-199710

NO.2

main85420-12140iAT190..UKP..ATM199601-199710

NO.3

main85420-20140iST191..UKP..ATM199601-199710

NO.1

main85420-30200×2iST191..UKP..ATM199601-199710

NO.2

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×6iAT190,ST191..UKP..ATM199601-199710

9010506049

main90105-06049

9161160814

main91611-60814

9672124018

main96721-24018

11 parts on this diagram · 2 diagrams in section
